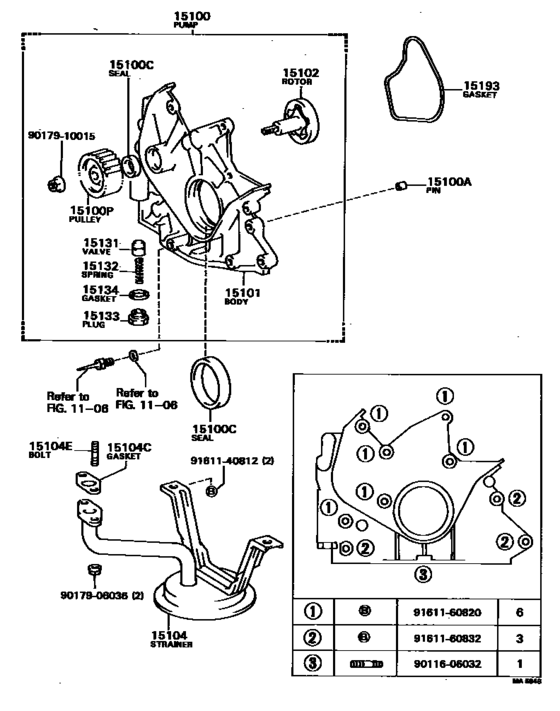

Engine Oil Pump ([04.1982 - ] (8204- )1C) Diagram Toyota CARINA
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- CA60
- grade
- DLX
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 04.1982
- To
- 09.1983
- Gear Shift Type
- 5F
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-64010 Pump Assy, Oil[04.1982 - 07.1982] 1C..CA60 |
15100-64010 |
US $298.48 |
||
| replacements | |||||
|
15100
|
15100
15100-64032 Pump Assy, Oil[04.1982 - 07.1982] 1C..CA60 |
15100-64032 |
from US $138.18 |
||
|
15100
|
15100
15193-64022 Gasket, Oil Pump[04.1982 - 07.1982] 1C..CA60 |
15193-64022 |
from US $3.47 |
||
|
15100
|
15100
90119-08B81 New Genuine Part[04.1982 - 07.1982] 1C..CA60 |
90119-08B81 |
US $1.49 |
||
|
15100
|
15100
15100-64011 Pump Assy, Oil[07.1982 - 09.1983] 1C..CA60 |
15100-64011 |
US $317.41 |
||
| replacements | |||||
|
15100
|
15100
15100-64032 Pump Assy, Oil[07.1982 - 09.1983] 1C..CA60 |
15100-64032 |
from US $138.18 |
||
|
15100
|
15100
90119-08B81 New Genuine Part[07.1982 - 09.1983] 1C..CA60 |
90119-08B81 |
US $1.49 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[04.1982 - 09.1983] 1C..CA60 |
90253-11021 |
from US $1.50 |
||
|
15100C
|
15100C
15165-64010 Seal(For Oil Pump)[04.1982 - 09.1983] 1C..CA60 |
15165-64010 |
US $12.96 |
||
|
15100P
|
15100P
13524-64010 Pulley, Oil Pump Drive Shaft[04.1982 - 09.1983] 1C..CA60 |
13524-64010 |
US $31.94 |
||
|
15101
|
15101
15101-64010 Body Sub-Assy, Oil Pump[04.1982 - 07.1982] 1C..CA60 |
15101-64010 |
US $259.17 |
||
| replacements | |||||
|
15101
|
15101
15100-64032 Pump Assy, Oil[04.1982 - 07.1982] 1C..CA60 |
15100-64032 |
from US $138.18 |
||
|
15101
|
15101
15100-64042 Pump Assy, Oil[04.1982 - 07.1982] 1C..CA60 |
15100-64042 |
from US $131.33 |
||
|
15101
|
15101
15193-64022 Gasket, Oil Pump[04.1982 - 07.1982] 1C..CA60 |
15193-64022 |
from US $3.47 |
||
|
15101
|
15101
90119-08B81 New Genuine Part[04.1982 - 07.1982] 1C..CA60 |
90119-08B81 |
US $1.49 |
||
|
15101
|
15101
15101-64011 Body Sub-Assy, Oil Pump[07.1982 - 09.1983] 1C..CA60 |
15101-64011 |
US $292.66 |
||
| replacements | |||||
|
15101
|
15101
15100-64032 Pump Assy, Oil[07.1982 - 09.1983] 1C..CA60 |
15100-64032 |
from US $138.18 |
||
|
15101
|
15101
15100-64042 Pump Assy, Oil[07.1982 - 09.1983] 1C..CA60 |
15100-64042 |
from US $131.33 |
||
|
15101
|
15101
90119-08B81 New Genuine Part[07.1982 - 09.1983] 1C..CA60 |
90119-08B81 |
US $1.49 |
||
|
15102
|
15102
15102-64010 Rotor Set, Oil Pump[04.1982 - 09.1983] 1C..CA60 |
15102-64010 |
US $42.81 |
||
|
15104
|
15104
15104-64010 Strainer Sub-Assy, Oil[04.1982 - 09.1983] 1C..CA60 |
15104-64010 |
US $91.73 |
||
|
15104C
|
15104C
15149-64010 Gasket(For Oil Strainer)[04.1982 - 09.1983] 1C..CA60 |
15149-64010 |
US $3.64 |
||
| replacement | |||||
|
15104C
|
15104C
15149-64070 Gasket(For Oil Strainer)[04.1982 - 09.1983] 1C..CA60 |
15149-64070 |
US $3.52 |
||
|
15104E
|
15104E
90116-06032 Bolt, Stud(For Oil Strainer)[04.1982 - 09.1983] 1C..CA60 |
90116-06032 |
US $1.89 |
||
|
15131
|
15131
15131-22010 Valve, Oil Pump Relief[08.1981 - 12.1982] 1C..CA60; 2T,3T#..TA6# |
15131-22010 |
from US $6.12 |
||
|
15131
|
15131
15131-64020 Valve, Oil Pump Relief[12.1982 - 09.1983] 1C..CA60 |
15131-64020 |
US $9.26 |
||
|
15132
|
15132
15132-76011 Spring, Oil Pump Relief Valve[04.1982 - 09.1983] 1C..CA60 |
15132-76011 |
from US $2.50 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[04.1982 - 09.1983] 1C..CA60 |
15133-20010 |
US $6.56 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[04.1982 - 09.1983] 1C..CA60 |
15134-20010 |
from US $2.03 |
||
|
15193
|
15193
15193-64020 Gasket, Oil Pump[04.1982 - 07.1982] 1C..CA60 |
15193-64020 |
US $7.86 |
||
|
15193
|
15193
15193-64021
Gasket, Oil Pump
[07.1982 - 09.1983] 1C..CA60 |
15193-64021 |
— | ||
| replacement | |||||
|
15193
|
15193
15193-64022 Gasket, Oil Pump[07.1982 - 09.1983] 1C..CA60 |
15193-64022 |
from US $3.47 |
||
|
9011606032
|
9011606032
90116-06032 Bolt, Stud(For Oil Strainer) |
90116-06032 |
US $1.89 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
