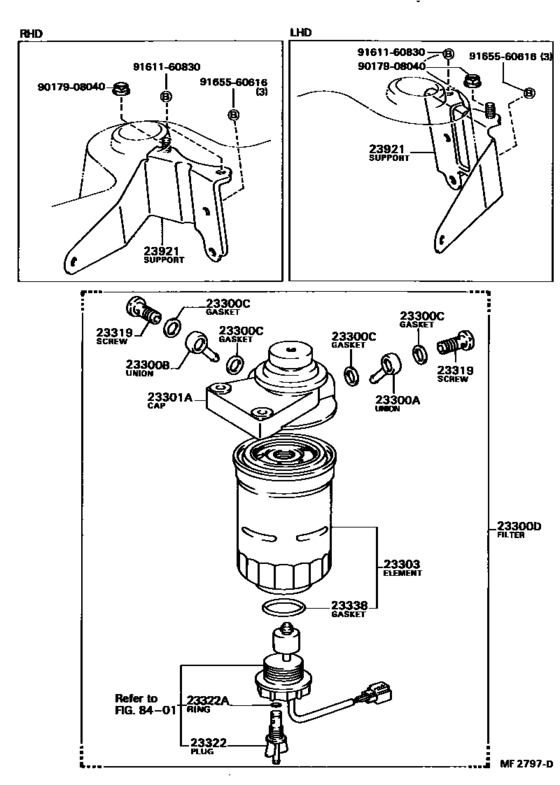

Fuel Filter ([04.1982 - ] (8204- )1C) Diagram Toyota CARINA
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- CA60
- grade
- DLX
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 04.1982
- To
- 09.1983
- Gear Shift Type
- 5F
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300A
|
23300A
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[09.1982 - 09.1983] 1C..CA60 |
90405-08016 |
— | ||
|
23300A
|
23300A
90405-08160 Union, Nipple(For Fuel Filter Inlet)[04.1982 - 09.1982] 1C..CA60 |
90405-08160 |
US $19.07 |
||
|
23300B
|
23300B
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[09.1982 - 09.1983] 1C..CA60 |
90405-08016 |
— | ||
|
23300B
|
23300B
90405-08160 Union, Nipple(For Fuel Filter Inlet)[04.1982 - 09.1982] 1C..CA60 |
90405-08160 |
US $19.07 |
||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[04.1982 - 09.1983] 1C..CA60 |
22447-47030 |
US $0.84 |
||
|
23300D
|
23300D
23300-64020 Filter Assy, Fuel(For Diesel)[04.1982 - 09.1983] 1C..CA60 |
23300-64020 |
US $412.05 |
||
| replacements | |||||
|
23300D
|
23300D
23301-64050 Cap Assy, Fuel Filter[04.1982 - 09.1983] 1C..CA60 |
23301-64050 |
US $182 |
||
|
23300D
|
23300D
23303-64010 Element Sub-Assy, Fuel Filter[04.1982 - 09.1983] 1C..CA60 |
23303-64010 |
from US $54.42 |
||
|
23300D
|
23300D
84461-14030 Switch, Level Warning[04.1982 - 09.1983] 1C..CA60 |
84461-14030 |
US $84.45 |
||
|
23301A
|
23301A
23301-64010
Cap Assy, Fuel Filter
[04.1982 - 09.1983] 1C..CA60 |
23301-64010 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[04.1982 - 09.1983] 1C..CA60 |
23303-64010 |
from US $54.42 |
||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[04.1982 - 09.1983] 1C..CA60 |
90099-18011 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[04.1982 - 09.1983] 1C..CA60 |
23322-64010 |
from US $7.94 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[04.1982 - 09.1983] 1C..CA60 |
23344-54010 |
from US $1.75 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[04.1982 - 09.1983] 1C..CA60 |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-64020 Support, Fuel Filter[04.1982 - 09.1983] 1C..CA60..RHD |
23921-64020 |
US $34.80 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
