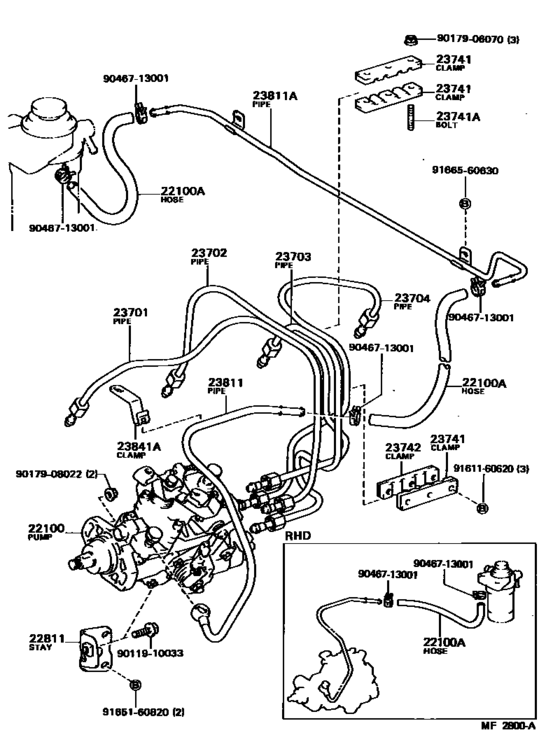

Injection Pump Assembly ([04.1982 - ] (8204- )1C) Diagram Toyota CARINA
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- CA60
- grade
- DLX
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 04.1982
- To
- 09.1983
- Gear Shift Type
- 5F
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-64010 Pump Assy, Injection Or Supply[04.1982 - 09.1983] 1C..CA60 |
22100-64010 |
US $4,600.96 |
||
| replacement | |||||
|
22100
|
22100
22100-64020 Pump Assy, Injection Or Supply[04.1982 - 09.1983] 1C..CA60 |
22100-64020 |
US $4,600.96 |
||
|
22100A
|
22100A
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1982 - 09.1983] 1C..CA60..RHD *H,L=300,ID=7.6; 1C..CA60..LHD *H,L=260,ID=7.6,FILTER SIDE |
95332-08030 |
— | ||
| replacement | |||||
|
22100A
|
22100A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1982 - 09.1983] 1C..CA60..RHD *H,L=300,ID=7.6; 1C..CA60..LHD *H,L=260,ID=7.6,FILTER SIDE |
95333-08030 |
from US $10.56 |
||
|
22811
|
22811
22811-64010 Stay, Injection Pump, No.1[04.1982 - 09.1983] 1C..CA60 |
22811-64010 |
US $12.23 |
||
|
23701
|
23701
23701-64010 Pipe Sub-Assy, Injection, No.1[04.1982 - 09.1983] 1C..CA60 |
23701-64010 |
US $33.78 |
||
|
23702
|
23702
23702-64020 Pipe Sub-Assy, Injection, No.2[04.1982 - 09.1983] 1C..CA60 |
23702-64020 |
US $34.07 |
||
| replacement | |||||
|
23702
|
23702
23702-64010 Pipe Sub-Assy, Injection, No.2[04.1982 - 09.1983] 1C..CA60 |
23702-64010 |
US $33.78 |
||
|
23703
|
23703
23703-64010 Pipe Sub-Assy, Injection, No.3[04.1982 - 09.1983] 1C..CA60 |
23703-64010 |
US $33.78 |
||
|
23704
|
23704
23704-64020 Pipe Sub-Assy, Injection, No.4[04.1982 - 09.1983] 1C..CA60 |
23704-64020 |
US $34.07 |
||
| replacement | |||||
|
23704
|
23704
23704-64010 Pipe Sub-Assy, Injection, No.4[04.1982 - 09.1983] 1C..CA60 |
23704-64010 |
US $33.78 |
||
|
23741
|
23741
23741-64010
Clamp, Injection Pipe, No.1
[04.1982 - 09.1983] 1C..CA60 |
23741-64010 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64011 Clamp, Injection Pipe, No.1[04.1982 - 09.1983] 1C..CA60 |
23741-64011 |
US $14.33 |
||
|
23741A
|
23741A
92122-60622 Bolt, Stud(For Injection Pipe Clamp)[04.1982 - 09.1983] 1C..CA60 |
92122-60622 |
US $1.89 |
||
|
23742
|
23742
23742-64010 Clamp, Injection Pipe, No.2[04.1982 - 09.1983] 1C..CA60 |
23742-64010 |
US $13.83 |
||
|
23811
|
23811
23811-64011 Pipe, Fuel(For Fuel Filter To Injection Pump)[04.1982 - 09.1983] 1C..CA60 |
23811-64011 |
US $43.83 |
||
| replacement | |||||
|
23811
|
23811
23811-64012 Pipe, Fuel(For Fuel Filter To Injection Pump)[04.1982 - 09.1983] 1C..CA60 |
23811-64012 |
US $43.53 |
||
|
23841A
|
23841A
90929-01018 Clamp, Fuel Pipe, No.1(For Injection Pump)[04.1982 - 09.1983] 1C..CA60 |
90929-01018 |
US $3.06 |
||
|
9011910033
|
9011910033
90119-10033 Bolt, No.1 (For Center Support Bearing) |
90119-10033 |
US $3.35 |
||
| replacement | |||||
|
9011910033
|
9011910033
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $3.68 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9166560630
|
9166560630
91665-60630 BOLT |
91665-60630 |
US $1.75 |
||
