Component List CARINA
Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )WG)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
57468A	57468A 57468-20030 Bracket, Front Seat, Outside, Rear Rh [12.1987 - 11.1992] AT171,CT170,ST171	57468-20030	US $4.66
57469A	57469A 57469-20030 Bracket, Front Seat, Outside [12.1987 - 11.1992] AT171,CT170,ST171	57469-20030	US $4.66
57659B	57659B 57659-95502 Member, Rear Floor Cross, Rear Inner [12.1987 - 11.1992] AT171,CT170,ST171..WG	57659-95502	US $109.20
57673	57673 57673-20070 Bracket, Rear Seat Back Hinge Mounting [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	57673-20070	US $5.82
57697	57697 57697-32020 Retainer, Rear Seat Cushion [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	57697-32020	US $2.91
58015A	58015A 58015-32030 Reinforce Sub-Assy, Belt Anchor, No.3 Rh [12.1987 - 11.1992] AT171,CT170,ST171	58015-32030	US $55.47
58016A	58016A 58016-32020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh [12.1987 - 11.1992] AT171,CT170,ST171	58016-32020	US $36.11
58027A	58027A 58027-20070 Reinforce Sub-Assy, Seat Belt Anchor [12.1987 - 11.1992] CT170;AT171,ST171..W	58027-20070	US $44.12
58111	58111 58111-20120 Pan, Front Floor [12.1987 - 11.1992] AT171,CT170,ST171	58111-20120	US $711.98
58114A	58114A 58114-20040 Reinforcement, Front Floor Panel [12.1987 - 11.1992] AT171,CT170,ST171	58114-20040	US $24.90
58123A	58123A 58123-20040 Support, Shift & Select Lever [12.1987 - 11.1992] AT171,CT170,ST171	58123-20040	US $48.19
58136A	58136A 58136-20010 Cover, Front Floor Service Hole [12.1987 - 11.1992] AT171,CT170,ST171	58136-20010	US $5.24
58171	58171 58107-20040 Reinforcement, Parking Brake Base [03.1988 - 11.1989] AT171,CT170,ST171	58107-20040	US $23.59
58171	58171 58107-20080 Reinforcement, Parking Brake Base [12.1987 - 03.1988] AT171,CT170,ST171	58107-20080	—
58171	58171 58171-20100 Reinforcement, Parking Brake Base [12.1989 - 11.1992] AT171,CT170,ST171	58171-20100	US $19.80
58172	58172 58172-20040 Bracket, Computer Mounting, No.3 [12.1987 - 11.1992] AT171,CT170,ST171	58172-20040	US $7.43
58189	58189 58189-20020 Reinforcement, Exhaust Pipe Clamp Bracket [12.1987 - 11.1992] AT171,CT170,ST171	58189-20020	US $31.74
58191	58191 58192-20020 Footrest, Front Floor FRONT FLOOR [12.1987 - 11.1992] AT171,CT170,ST171..LHD	58192-20020	US $17.18
58193	58193 58109-20090 Bracket, Instrument Panel Brace Mounting [12.1987 - 11.1992] AT171,CT170,ST171	58109-20090	US $29.27
58198	58198 58198-20040 Clip, Footrest FOOTREST [12.1987 - 11.1992] AT171,CT170,ST171..LHD L=34.6	58198-20040	US $3.93
58198	58198 58198-20050 Clip, Footrest FOOTREST [12.1987 - 11.1992] AT171,CT170,ST171..LHD L=44.8	58198-20050	US $5.82
58208	58208 58211-32050 Pan, Center Floor [12.1987 - 04.1988] AT171,CT170,ST171	58211-32050	US $384.38
58208	58208 58211-32051 Pan, Center Floor [05.1988 - 11.1992] AT171,CT170,ST171	58211-32051	US $381.47
58244C	58244C 58244-20010 Bracket, Rear Seat Cushion Mounting, Rh [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	58244-20010	US $6.70
58245A	58245A 58245-20020 Bracket, Rear Seat Hinge, Center No.1 [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	58245-20020	US $6.70
58301A	58301A 58301-95509 Panel Sub-Assy, Rear Floor [12.1987 - 11.1992] AT171,CT170,ST171..WG	58301-95509	US $711.98
58307	58307 58307-95516 Panel Sub-Assy, Body Lower Back [12.1987 - 11.1992] AT171,CT170,ST171..WG	58307-95516	US $215.49
58313F	58313F 58313-95503 Extension, Rear Floor Pan To Quarter Panel, Rh [12.1987 - 11.1992] AT171,CT170,ST171..WG	58313-95503	US $40.77
58314F	58314F 58314-95503 Extension, Rear Floor Pan To Quarter Panel, Lh [12.1987 - 11.1992] AT171,CT170,ST171..WG	58314-95503	US $40.77
58325E	58325E 58325-32020 Cover, Rear Floor Service Hole [12.1987 - 11.1992] AT171,CT170,ST171	58325-32020	US $27.52
58369A	58369A 58369-32010 Bracket, Insulator Heat [12.1987 - 11.1992] AT171,CT170,ST171	58369-32010	US $3.32
9018904002	9018904002 90189-04002 GROMMET	90189-04002	from US $1.92
9033315002	9033315002 90333-15002 PLUG	90333-15002	from US $1.44
9033320001	9033320001 90333-20001 PLUG	90333-20001	from US $1.12
9033325001	9033325001 90333-25001 Plug, Hole(For Hood)	90333-25001	from US $1.41
9095001005	9095001005 90950-01005 PLUGHOLE	90950-01005	—
	replacement
9095001005	9095001005 90950-01867 PLUG HOLE	90950-01867	from US $2.77
9095001027	9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)	90950-01027	US $3.20
9095001060	9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)	90950-01060	—
	replacement
9095001060	9095001060 90950-01866 Plug, Hole(For Front Door Panel)	90950-01866	from US $1.92
9095001266	9095001266 90950-01266 New Genuine Part	90950-01266	US $3.20
9095001332	9095001332 90950-01332 New Genuine Part	90950-01332	US $2.62
9095001369	9095001369 90950-01369 New Genuine Part	90950-01369	US $7.13
	replacement
9095001369	9095001369 90950-01979 New Genuine Part	90950-01979	US $6.64
9095001372	9095001372 90950-01372 Cover, Console Box Hole	90950-01372	US $6.99
	replacement
9095001372	9095001372 90950-01959 Cover, Console Box Hole	90950-01959	from US $1.92
9095001611	9095001611 90950-01611 New Genuine Part	90950-01611	US $2.24
9354014010	9354014010 93540-14010 Clip, Headlining Retainer	93540-14010	from US $0.99

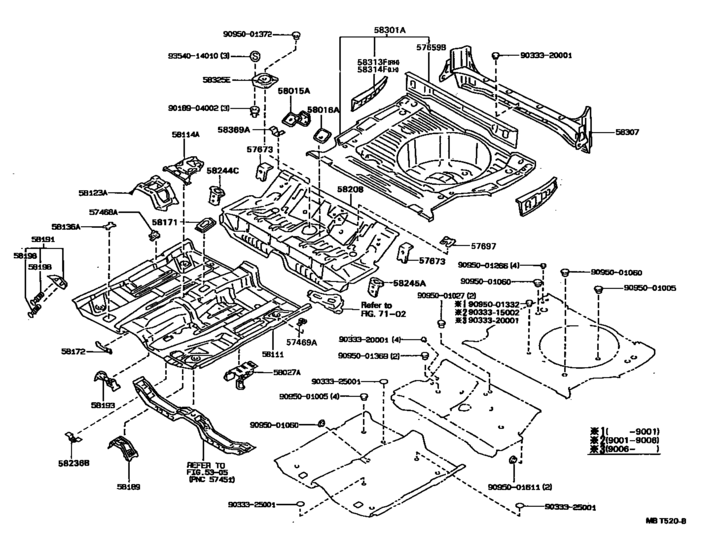

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )WG) Diagram Toyota CARINA Europe 17863937-920302

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )WG) Diagram Toyota CARINA Europe 17863937-920302
