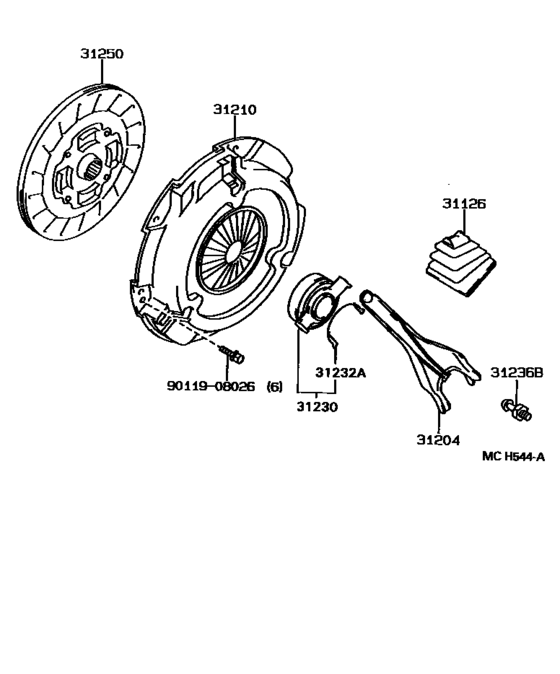

Clutch & Release Fork ([12.1987 - ] (8712- )5F) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- CT170
- grade
- XL
- body
- LB
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 08.1990
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[12.1987 - 11.1992] CT170,ST171..5F |
31126-32010 |
from US $12.83 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[05.1990 - 11.1992] CT170,ST171..5F |
31204-20100 |
from US $30.40 |
||
|
31210
|
31210
31210-32121 Cover Assy, Clutch[06.1989 - 04.1991] CT170 |
31210-32121 |
US $174.72 |
||
| replacement | |||||
|
31210
|
31210
31210-12320 Cover Assy, Clutch[06.1989 - 04.1991] CT170 |
31210-12320 |
US $199.47 |
||
|
31230
|
31230
31230-32060 Bearing Assy, Clutch Release[05.1990 - 11.1992] CT170,ST171..5F |
31230-32060 |
from US $52.42 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[05.1990 - 11.1992] CT170,ST171..5F TYPE 6 |
31232-20020 |
from US $1.56 |
||
|
31232A
|
31232A
31232-32050 Clip, Release Bearing Hub[08.1990 - 11.1992] CT170,ST171..5F TYPE 7 |
31232-32050 |
US $2.33 |
||
|
31236B
|
31236B
31236-32010 Support, Release Fork[05.1990 - 11.1992] CT170,ST171..5F |
31236-32010 |
US $12.48 |
||
|
31250
|
31250
31250-12260 Disc Assy, Clutch[06.1990 - 04.1991] CT170 |
31250-12260 |
US $182 |
||
| replacement | |||||
|
31250
|
31250
31250-20313 Disc Assy, Clutch[06.1990 - 04.1991] CT170 |
31250-20313 |
US $157.25 |
||
|
31250
|
31250
31250-12280 Disc Assy, Clutch[04.1991 - 11.1992] CT170 |
31250-12280 |
US $182 |
||
| replacement | |||||
|
31250
|
31250
31250-20313 Disc Assy, Clutch[04.1991 - 11.1992] CT170 |
31250-20313 |
US $157.25 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
