Component List CARINA
Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )LB)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
57468A	57468A 57468-20030 Bracket, Front Seat, Outside, Rear Rh [12.1987 - 11.1992] AT171,CT170,ST171	57468-20030	US $4.66
57469A	57469A 57469-20030 Bracket, Front Seat, Outside [12.1987 - 11.1992] AT171,CT170,ST171	57469-20030	US $4.66
57673	57673 57673-20070 Bracket, Rear Seat Back Hinge Mounting [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	57673-20070	US $5.82
57697	57697 57697-32020 Retainer, Rear Seat Cushion [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	57697-32020	US $2.91
58015A	58015A 58015-32030 Reinforce Sub-Assy, Belt Anchor, No.3 Rh [12.1987 - 11.1992] AT171,CT170,ST171	58015-32030	US $55.47
58016A	58016A 58016-32020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh [12.1987 - 11.1992] AT171,CT170,ST171	58016-32020	US $36.11
58027A	58027A 58027-20070 Reinforce Sub-Assy, Seat Belt Anchor [12.1987 - 11.1992] CT170;AT171,ST171..W	58027-20070	US $44.12
58111	58111 58111-20120 Pan, Front Floor [12.1987 - 11.1992] AT171,CT170,ST171	58111-20120	US $711.98
58114A	58114A 58114-20040 Reinforcement, Front Floor Panel [12.1987 - 11.1992] AT171,CT170,ST171	58114-20040	US $24.90
58123A	58123A 58123-20040 Support, Shift & Select Lever [12.1987 - 11.1992] AT171,CT170,ST171	58123-20040	US $48.19
58136A	58136A 58136-20010 Cover, Front Floor Service Hole [12.1987 - 11.1992] AT171,CT170,ST171	58136-20010	US $5.24
58171	58171 58171-20100 Reinforcement, Parking Brake Base [12.1989 - 11.1992] AT171,CT170,ST171	58171-20100	US $19.80
58172	58172 58172-20040 Bracket, Computer Mounting, No.3 [12.1987 - 11.1992] AT171,CT170,ST171	58172-20040	US $7.43
58189	58189 58189-20020 Reinforcement, Exhaust Pipe Clamp Bracket [12.1987 - 11.1992] AT171,CT170,ST171	58189-20020	US $31.74
58191	58191 58191-20040 Footrest, Front Floor [12.1987 - 11.1992] AT171,CT170,ST171..RHD	58191-20040	US $26.50
58193	58193 58109-20090 Bracket, Instrument Panel Brace Mounting [12.1987 - 11.1992] AT171,CT170,ST171	58109-20090	US $29.27
58198	58198 58198-20020 Clip, Footrest [12.1987 - 11.1992] AT171,CT170,ST171..RHD L=97.1	58198-20020	US $5.97
58198	58198 58198-20030 Clip, Footrest [12.1987 - 11.1992] AT171,CT170,ST171..RHD L=89.1	58198-20030	US $4.37
58208	58208 58211-32051 Pan, Center Floor [05.1988 - 11.1992] AT171,CT170,ST171	58211-32051	US $381.47
58234A	58234A 58234-32020 Bracket, Exhaust Pipe Mounting, Inner [12.1987 - 03.1992] AT171,CT170,ST171..LB,SED	58234-32020	US $21.99
58244C	58244C 58244-20010 Bracket, Rear Seat Cushion Mounting, Rh [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	58244-20010	US $6.70
58245A	58245A 58245-20020 Bracket, Rear Seat Hinge, Center No.1 [12.1987 - 11.1992] AT171,CT170,ST171..LB,WG	58245-20020	US $6.70
58305	58305 58305-10011 Bracket Sub-Assy, Spare Wheel Clamp [12.1987 - 03.1992] AT171,CT170,ST171..LB,SED	58305-10011	US $4.54
58307	58307 58307-20642 Panel Sub-Assy, Body Lower Back [10.1989 - 03.1992] AT171,CT170,ST171..LB	58307-20642	US $235.87
58311	58311 58311-32090 Pan, Rear Floor [12.1987 - 03.1992] AT171,CT170,ST171..LB,SED	58311-32090	US $505.23
58313	58313 58313-20240 Panel, Rear Floor Side, Rh [12.1987 - 03.1992] AT171,CT170,ST171..LB	58313-20240	US $21.40
58314	58314 58314-20220 Panel, Rear Floor Side, Lh [12.1987 - 03.1992] AT171,CT170,ST171..LB	58314-20220	US $21.40
58325E	58325E 58325-32020 Cover, Rear Floor Service Hole [12.1987 - 11.1992] AT171,CT170,ST171	58325-32020	US $27.52
58369A	58369A 58369-32010 Bracket, Insulator Heat [12.1987 - 11.1992] AT171,CT170,ST171	58369-32010	US $3.32
58369B	58369B 58369-32010 Bracket, Insulator Heat [12.1987 - 03.1992] AT171,CT170,ST171..LB,SED	58369-32010	US $3.32
58398C	58398C 58398-20050 Cover, Body Lower Back, Lh [12.1987 - 03.1992] AT171,CT170,ST171..LB,SED	58398-20050	US $52.27
9015960383	9015960383 90159-60383 SCREW WWASHER	90159-60383	from US $0.78
	replacement
9015960383	9015960383 90159-A0010 SCREW WWASHER TAPP	90159-A0010	from US $2.38
9018904002	9018904002 90189-04002 GROMMET	90189-04002	from US $1.92
9018906101	9018906101 90189-06101 New Genuine Part	90189-06101	US $1.89
9029703005	9029703005 90297-03005 New Genuine Part	90297-03005	US $1.02
9033325001	9033325001 90333-25001 Plug, Hole(For Hood)	90333-25001	from US $1.41
9095001005	9095001005 90950-01005 PLUGHOLE	90950-01005	—
	replacement
9095001005	9095001005 90950-01867 PLUG HOLE	90950-01867	from US $2.77
9095001027	9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)	90950-01027	US $3.20
9095001060	9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)	90950-01060	—
	replacement
9095001060	9095001060 90950-01866 Plug, Hole(For Front Door Panel)	90950-01866	from US $1.92
9095001065	9095001065 90950-01065 Plug, Hole(For Front Fender Apron)	90950-01065	US $4.48
9095001173	9095001173 90950-01173 New Genuine Part	90950-01173	US $2.18
	replacement
9095001173	9095001173 90950-01684 PLUG HOLE	90950-01684	from US $2.79
9095001326	9095001326 90950-01326 New Genuine Part	90950-01326	US $3.84
9095001369	9095001369 90950-01369 New Genuine Part	90950-01369	US $7.13
	replacement
9095001369	9095001369 90950-01979 New Genuine Part	90950-01979	US $6.64
9095001372	9095001372 90950-01372 Cover, Console Box Hole	90950-01372	US $6.99
	replacement
9095001372	9095001372 90950-01959 Cover, Console Box Hole	90950-01959	from US $1.92
9095001611	9095001611 90950-01611 New Genuine Part	90950-01611	US $2.24
9095001685	9095001685 90950-01685 New Genuine Part	90950-01685	US $1.89
9354014010	9354014010 93540-14010 Clip, Headlining Retainer	93540-14010	from US $0.99

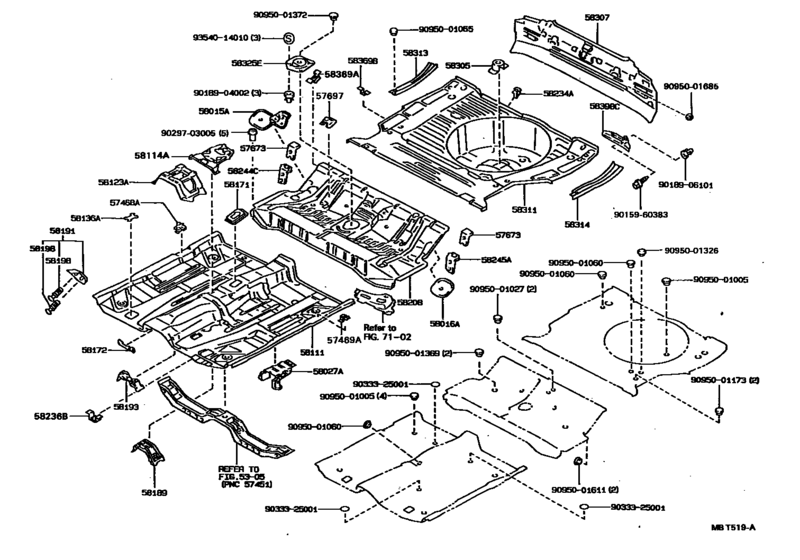

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )LB) Diagram Toyota CARINA Europe 17863936-920305

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )LB) Diagram Toyota CARINA Europe 17863936-920305
