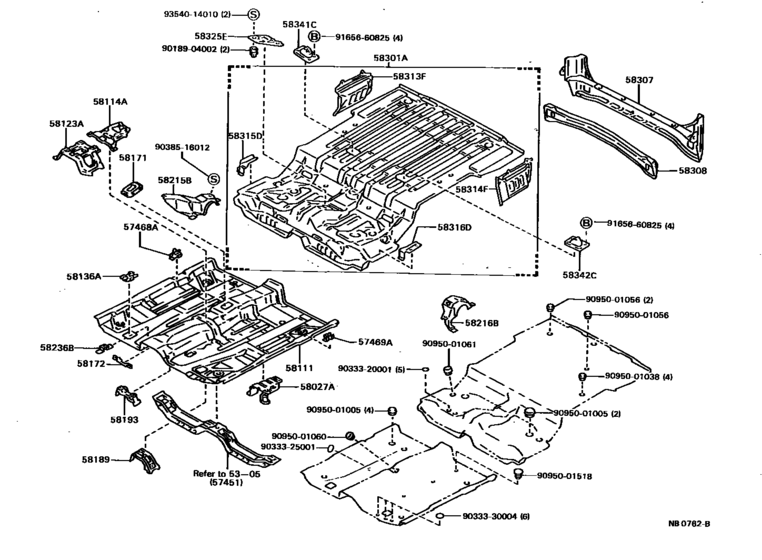

Floor Pan & Lower Back Panel ([05.1988 - ] (8805- )CT176,ET176) Diagram Toyota CARINA
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- CT176
- grade
- DX
- body
- VAN
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 11.1989
- To
- 11.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57468A
|
57468A
57468-20030 Bracket, Front Seat, Outside, Rear Rh[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
57468-20030 |
US $4.66 |
||
|
57469A
|
57469A
57469-20030 Bracket, Front Seat, Outside[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
57469-20030 |
US $4.66 |
||
|
58027A
|
58027A
58027-20070 Reinforce Sub-Assy, Seat Belt Anchor[11.1989 - 11.1992] AT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI) |
58027-20070 |
US $44.12 |
||
|
58111
|
58111
58111-20120 Pan, Front Floor[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58111-20120 |
US $711.98 |
||
|
58114A
|
58114A
58114-20040 Reinforcement, Front Floor Panel[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58114-20040 |
US $24.90 |
||
|
58123A
|
58123A
58123-20040 Support, Shift & Select Lever[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58123-20040 |
US $48.19 |
||
|
58136A
|
58136A
58136-20010 Cover, Front Floor Service Hole[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58136-20010 |
US $5.24 |
||
|
58171
|
58171
58107-20040 Reinforcement, Parking Brake Base[05.1988 - 12.1989] AT170,171,CT17#,ET176,ST170 |
58107-20040 |
US $23.59 |
||
|
58171
|
58171
58171-20100 Reinforcement, Parking Brake Base[12.1989 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58171-20100 |
US $19.80 |
||
|
58172
|
58172
58172-20040 Bracket, Computer Mounting, No.3[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58172-20040 |
US $7.43 |
||
|
58189
|
58189
58189-20020 Reinforcement, Exhaust Pipe Clamp Bracket[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58189-20020 |
US $31.74 |
||
|
58193
|
58193
58109-20090 Bracket, Instrument Panel Brace Mounting[05.1988 - 11.1992] AT170,171,CT17#,ET176,ST170 |
58109-20090 |
US $29.27 |
||
|
58215B
|
58215B
58215-13020 Bracket, Rear Seat Mounting, Rh[05.1988 - 11.1992] CT176,ET176 |
58215-13020 |
US $15.58 |
||
|
58216B
|
58216B
58216-13020 Bracket, Rear Seat Mounting, Lh[05.1988 - 11.1992] CT176,ET176 |
58216-13020 |
US $15.58 |
||
|
58301A
|
58301A
58301-95512 Panel Sub-Assy, Rear Floor[05.1989 - 11.1992] CT176,ET176 |
58301-95512 |
US $908.54 |
||
|
58307
|
58307
58307-95517 Panel Sub-Assy, Body Lower Back[05.1988 - 11.1992] CT176,ET176 |
58307-95517 |
US $215.49 |
||
|
58308
|
58308
58308-95501 Panel Sub-Assy, Body Lower Back, Inner[05.1988 - 11.1992] CT176,ET176 |
58308-95501 |
US $88.82 |
||
|
58313F
|
58313F
58313-95502 Extension, Rear Floor Pan To Quarter Panel, Rh[05.1988 - 11.1992] CT176,ET176 |
58313-95502 |
US $63.48 |
||
|
58314F
|
58314F
58314-95502 Extension, Rear Floor Pan To Quarter Panel, Lh[05.1988 - 11.1992] CT176,ET176 |
58314-95502 |
US $60.57 |
||
|
58315D
|
58315D
58315-95500 Extension, Rear Floor Pan, Rh[05.1988 - 11.1992] CT176,ET176 |
58315-95500 |
US $60.57 |
||
|
58316D
|
58316D
58316-95500 Extension, Rear Floor Pan, Lh[05.1988 - 11.1992] CT176,ET176 |
58316-95500 |
US $60.57 |
||
|
58325E
|
58325E
58325-12020 Cover, Rear Floor Service Hole[05.1988 - 11.1992] CT176,ET176 |
58325-12020 |
US $10.48 |
||
|
58341C
|
58341C
58341-13020 Bracket, Rear Absorber Mounting, No.1 Rh[05.1988 - 11.1992] CT176,ET176 |
58341-13020 |
US $41.64 |
||
|
58342C
|
58342C
58342-13020 Bracket, Rear Absorber Mounting, No.1 Lh[05.1988 - 11.1992] CT176,ET176 |
58342-13020 |
US $41.64 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9038516012
|
9038516012
90385-16012 Bush(For Rear Shock Absorber) |
90385-16012 |
US $3.93 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
