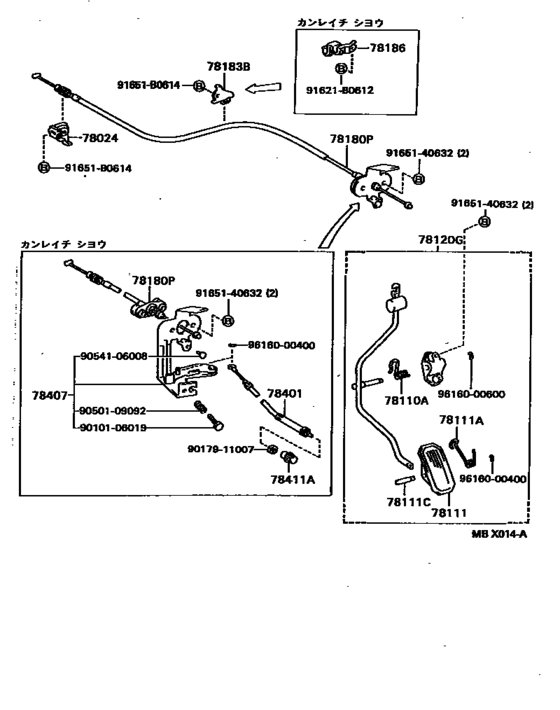

Accelerator Link ([08.1992 - ] (9208- )CT19#) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SE
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1992
- To
- 08.1996
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-32140 Bracket Sub-Assy, Accelerator Control Cable[08.1992 - 08.1996] CT19# |
78024-32140 |
US $20.24 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[08.1992 - 08.1996] AT190,191,CT19#,ST19#..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-20050 Pedal, Accelerator[08.1992 - 08.1996] CT19#..MTM |
78111-20050 |
US $13.98 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20580 Rod Assy, Accelerator Pedal[08.1992 - 08.1996] CT19#..MTM |
78120-20580 |
US $40.77 |
||
|
78180P
|
78180P
78180-2B870 Cable Assy, Accelerator Control[08.1992 - 08.1996] CT190..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78180-2B870 |
US $60.57 |
||
|
78180P
|
78180P
78180-2D150
Cable Assy, Accelerator Control
[08.1992 - 08.1996] CT190..MTM |
78180-2D150 |
— | ||
|
78183B
|
78183B
78183-20170 Clamp, Accelerator Control Cable[08.1992 - 08.1996] AT19#,CT19#,ST19# |
78183-20170 |
US $5.10 |
||
|
78186
|
78186
78183-20170 Clamp, Accelerator Control Cable[08.1992 - 08.1996] CT190..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78183-20170 |
US $5.10 |
||
|
78401
|
78401
78401-20060 Cable Sub-Assy, Throttle Control[08.1992 - 08.1996] CT19#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78401-20060 |
US $29.85 |
||
|
78407
|
78407
78407-20050 Arm Sub-Assy, Throttle Control[08.1992 - 01.1993] CT19#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78407-20050 |
US $59.70 |
||
| replacement | |||||
|
78407
|
78407
78407-20051 Arm Sub-Assy, Throttle Control[08.1992 - 01.1993] CT19#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78407-20051 |
US $60.13 |
||
|
78407
|
78407
78407-20051 Arm Sub-Assy, Throttle Control[01.1993 - 08.1996] CT19#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78407-20051 |
US $60.13 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[08.1992 - 08.1996] CT19#..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
78411-22010 |
US $8.91 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9010106019
|
9010106019
90101-06019 New Genuine Part |
90101-06019 |
US $2.04 |
||
|
9017911007
|
9017911007
90179-11007 Nut, Throttle |
90179-11007 |
US $2.08 |
||
|
9050109092
|
9050109092
90501-09092 New Genuine Part |
90501-09092 |
US $1.89 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.60 |
||
|
9165140632
|
9165140632
91651-40632 New Genuine Part |
91651-40632 |
US $1.16 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
