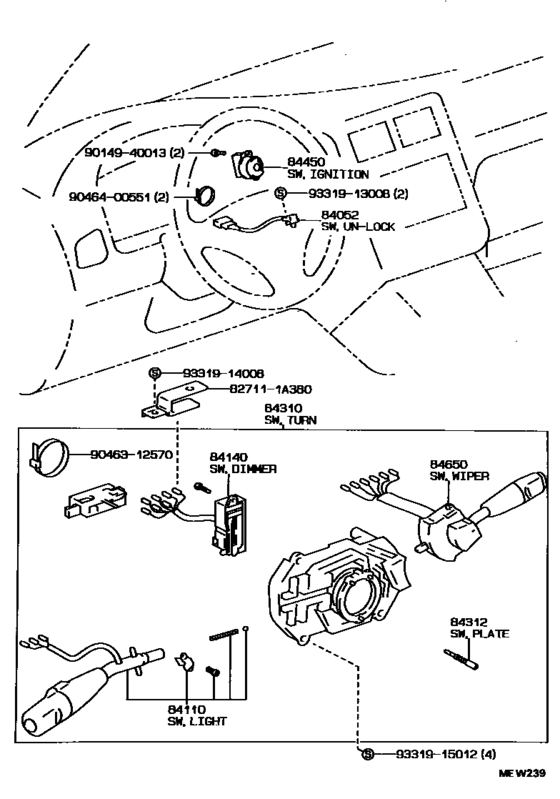

Switch & Relay & Computer ([02.1992 - 01.1996] COMBINATION SWITCH (9202-9601)UKP..LHD) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 10.1994
- To
- 01.1996
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-09050
Switch Assy, Light Control, No.1
[08.1993 - 10.1995] AT19#,CT190,ST191..UKP..LHD |
84112-09050 |
— | ||
|
84110
|
84110
84112-80110
Switch Assy, Light Control, No.1
[05.1994 - 01.1996] AT19#,CT190,ST191..UKP..LHD TOKAIRIKA |
84112-80110 |
— | ||
|
84140
|
84140
84140-05010
Switch Assy, Headlamp Dimmer
[05.1994 - 01.1996] AT19#,CT190,ST191..UKP..LHD |
84140-05010 |
— | ||
|
84310
|
84310
84310-05010
Switch Assy, Turn Signal
[05.1994 - 01.1996] AT190,CT190..UKP..LHD..SED..XL |
84310-05010 |
— | ||
|
84310
|
84310
84310-05020
Switch Assy, Turn Signal
[05.1994 - 01.1996] AT19#,ST191..UKP..LHD..SED..GL; AT190,CT190..UKP..LHD..SED..XL W(*IW) |
84310-05020 |
— | ||
|
84312
|
84312
84312-05010
Plate, Horn Contact
[05.1994 - 01.1996] AT19#,CT190,ST191..UKP |
84312-05010 |
— | ||
|
84450
|
84450
84450-05010 Switch Assy, Ignition Or StarterIGNITION OR STARTER [05.1994 - 01.1996] AT19#..UKP..RHD;CT190,ST191..UKP;AT19#..UKP..LHD..WG;AT190..UKP..LHD..(LB,SED)..XL |
84450-05010 |
US $69.31 |
||
| replacement | |||||
|
84450
|
84450
84450-20280 Switch Assy, Ignition Or Starter[05.1994 - 01.1996] AT19#..UKP..RHD;CT190,ST191..UKP;AT19#..UKP..LHD..WG;AT190..UKP..LHD..(LB,SED)..XL |
84450-20280 |
US $69.31 |
||
|
84450
|
84450
84450-05020
Switch Assy, Ignition Or Starter
[05.1994 - 01.1996] AT19#..UKP..LHD..(LB,SED)..GL; AT19#..UKP..RHD;CT190,ST191..UKP;AT19#..UKP..LHD..WG;AT190..UKP..LHD..(LB,SED)..XL W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
84450-05020 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-20290
Switch Assy, Ignition Or Starter
[05.1994 - 01.1996] AT19#..UKP..LHD..(LB,SED)..GL; AT19#..UKP..RHD;CT190,ST191..UKP;AT19#..UKP..LHD..WG;AT190..UKP..LHD..(LB,SED)..XL W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
84450-20290 |
— | ||
|
84650
|
84650
84652-05010
Switch Assy, Windshield Wiper
[05.1994 - 01.1996] AT190,CT190..UKP..LHD..SED..XL |
84652-05010 |
— | ||
|
84650
|
84650
84652-05020
Switch Assy, Windshield Wiper
[05.1994 - 01.1996] AT19#,ST191..UKP..LHD..SED..GL; AT190,CT190..UKP..LHD..SED..XL W(*IW) |
84652-05020 |
— | ||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
