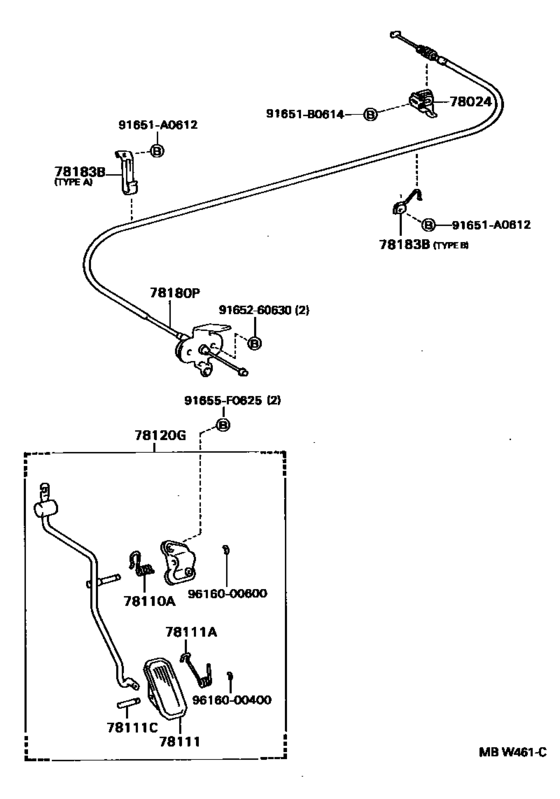

Accelerator Link ([02.1992 - ] (9202- )CT190..JPP) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E WG (JPP)
- From
- 11.1992
- To
- 01.1996
- Vehicle Model
- Carina E WG
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-32140 Bracket Sub-Assy, Accelerator Control Cable[11.1992 - 01.1996] CT190..JPP |
78024-32140 |
US $20.24 |
||
|
78110A
|
78110A
90508-26062 Spring (For Accelerator Pedal Rod)[11.1992 - 01.1996] CT190,ST191..JPP..LHD..MTM |
90508-26062 |
US $3.20 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18081 Spring (For Accelerator Pedal)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP..LHD..MTM |
90508-18081 |
US $1.89 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20500 Rod Assy, Accelerator PedalACCELERATOR PEDAL [11.1992 - 01.1996] CT190,ST191..JPP..LHD..MTM |
78120-20500 |
US $40.77 |
||
|
78180P
|
78180P
78180-2D180 Cable Assy, Accelerator ControlACCELERATOR CONTROL [11.1992 - 07.1993] CT190..JPP |
78180-2D180 |
US $65.96 |
||
| replacement | |||||
|
78180P
|
78180P
78180-2D181 Cable Assy, Accelerator ControlACCELERATOR CONTROL [11.1992 - 07.1993] CT190..JPP |
78180-2D181 |
US $65.96 |
||
|
78180P
|
78180P
78180-2D181 Cable Assy, Accelerator ControlACCELERATOR CONTROL [07.1993 - 01.1996] CT190..JPP |
78180-2D181 |
US $65.96 |
||
|
78183B
|
78183B
78183-20190 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [11.1992 - 01.1996] CT190..JPP TYPE A |
78183-20190 |
US $6.26 |
||
|
78183B
|
78183B
78183-20210 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [11.1992 - 01.1996] CT190..JPP TYPE B |
78183-20210 |
US $4.22 |
||
|
91651A0612
|
91651A0612
91651-A0612 New Genuine Part |
91651-A0612 |
US $1.60 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91655F0625
|
91655F0625
91655-F0625 New Genuine Part |
91655-F0625 |
US $1.46 |
||
| replacement | |||||
|
91655F0625
|
91655F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.28 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
