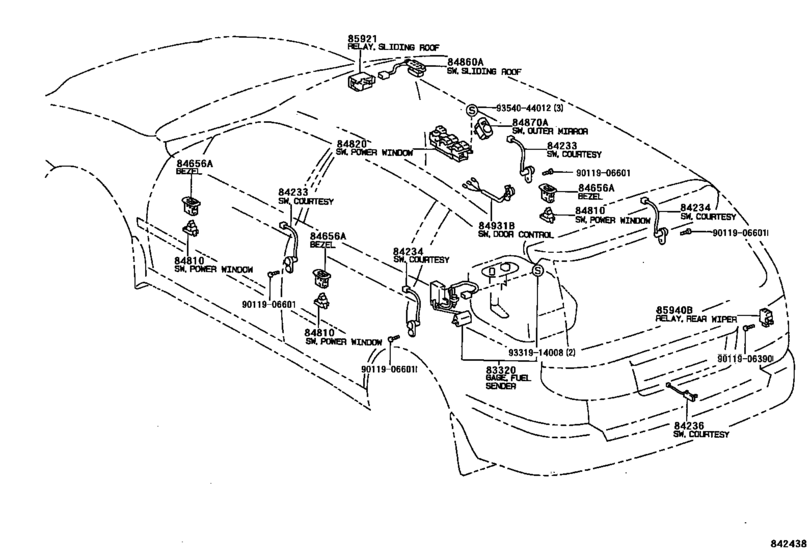

Switch & Relay & Computer ([02.1992 - ] ROOF,DOOR,SEAT & LUGGAGE (9202- )JPP) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E WG (JPP)
- From
- 11.1992
- To
- 01.1996
- Vehicle Model
- Carina E WG
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80242
Gage Assy, Fuel Sender
[11.1992 - 01.1996] CT190..JPP |
83320-80242 |
— | ||
|
84233
|
84233
84231-12080 Switch Assy, Courtesy Lamp (For Front Door)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84231-12080 |
US $17.26 |
||
| replacement | |||||
|
84233
|
84233
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84231-32040 |
from US $14.24 |
||
|
84234
|
84234
84231-12080 Switch Assy, Courtesy Lamp (For Front Door)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84231-12080 |
US $17.26 |
||
| replacement | |||||
|
84234
|
84234
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84231-32040 |
from US $14.24 |
||
|
84236
|
84236
84231-21010 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) [11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84231-21010 |
US $14.41 |
||
|
84656A
|
84656A
84656-20010-C0
Bezel, Switch
[11.1992 - 02.1994] AT190,CT190,ST191..JPP BLACK,TRIM2#,FRONT ASSISTANT |
84656-20010-C0 |
— | ||
|
84656A
|
84656A
84656-20010-J0 Bezel, SwitchSWITCH [11.1992 - 02.1994] AT190,CT190,ST191..JPP DK.BLUE,TRIM8#,FRONT ASSISTANT |
84656-20010-J0 |
US $16.16 |
||
| replacement | |||||
|
84656A
|
84656A
84656-20010-C0
Bezel, Switch
[11.1992 - 02.1994] AT190,CT190,ST191..JPP DK.BLUE,TRIM8#,FRONT ASSISTANT |
84656-20010-C0 |
— | ||
|
84656A
|
84656A
84656-20030-C0 Bezel, Switch[11.1992 - 02.1994] AT190,CT190,ST191..JPP BLACK,TRIM2#,REAR |
84656-20030-C0 |
US $16.16 |
||
|
84656A
|
84656A
84656-20030-J0 Bezel, SwitchSWITCH [11.1992 - 02.1994] AT190,CT190,ST191..JPP DK.BLUE,TRIM8#,REAR |
84656-20030-J0 |
US $16.16 |
||
| replacement | |||||
|
84656A
|
84656A
84656-20030-C0 Bezel, Switch[11.1992 - 02.1994] AT190,CT190,ST191..JPP DK.BLUE,TRIM8#,REAR |
84656-20030-C0 |
US $16.16 |
||
|
84810
|
84810
84810-95D00
Switch Assy, Power Window Regulator
[11.1992 - 01.1996] AT19#,CT190,ST191..JPP |
84810-95D00 |
— | ||
|
84820
|
84820
84820-22320
Master Switch Assy, Power Window Regulator
[11.1992 - 02.1994] AT190,CT190,ST191..JPP..LHD |
84820-22320 |
— | ||
|
84820
|
84820
84820-35010 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [02.1994 - 01.1996] AT19#,CT190,ST191..JPP..LHD |
84820-35010 |
from US $180 |
||
|
84860A
|
84860A
84860-20021-B0 Switch Assy, Sliding Roof[11.1992 - 02.1994] AT190,CT190,ST191..JPP GRAY,TRIM2#,8# |
84860-20021-B0 |
US $53.29 |
||
|
84870A
|
84870A
84870-20110 Switch Assy, Outer Mirror[07.1994 - 01.1995] CT190..JPP;AT19#,ST191..JPP..GL |
84870-20110 |
US $81.54 |
||
|
84931B
|
84931B
84931-20200 Switch, Door ControlDOOR CONTROL [11.1992 - 07.1993] AT190,CT190,ST191..JPP..LHD W(*PW) |
84931-20200 |
US $122.06 |
||
|
84931B
|
84931B
84931-20220 Switch, Door ControlDOOR CONTROL [11.1992 - 02.1994] AT190,ST191..JPP..LHD..GL; AT190,CT190..JPP..LHD..XL W(*EL W/INTERLINKD KNOB) |
84931-20220 |
US $48.34 |
||
|
84931B
|
84931B
84931-20230 Switch, Door Control[02.1994 - 05.1995] AT19#,CT190,ST191..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION),RH |
84931-20230 |
US $48.34 |
||
| replacement | |||||
|
84931B
|
84931B
84931-20231 Switch, Door Control[02.1994 - 05.1995] AT19#,CT190,ST191..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION),RH |
84931-20231 |
US $48.48 |
||
|
84931B
|
84931B
84931-20231 Switch, Door Control[05.1995 - 01.1996] AT19#,CT190,ST191..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION),RH |
84931-20231 |
US $48.48 |
||
|
84931B
|
84931B
84931-20270 Switch, Door ControlDOOR CONTROL [02.1994 - 01.1996] AT190..JPP..RHD;AT19#,ST191..JPP..GL RH; AT190,CT190..JPP..LHD..XL W(*EL W/INTLKNG KNOB),RH |
84931-20270 |
US $48.34 |
||
| replacement | |||||
|
84931B
|
84931B
84931-20260 Switch, Door ControlDOOR CONTROL [02.1994 - 01.1996] AT190..JPP..RHD;AT19#,ST191..JPP..GL RH; AT190,CT190..JPP..LHD..XL W(*EL W/INTLKNG KNOB),RH |
84931-20260 |
US $48.48 |
||
|
84931B
|
84931B
84931-20280 Switch, Door ControlDOOR CONTROL [02.1994 - 01.1996] AT190..JPP..RHD;AT19#,ST191..JPP..GL LH; AT190,CT190..JPP..LHD..XL W(*EL W/INTLKNG KNOB),LH |
84931-20280 |
US $48.34 |
||
| replacement | |||||
|
84931B
|
84931B
84931-20290 Switch, Door ControlDOOR CONTROL [02.1994 - 01.1996] AT190..JPP..RHD;AT19#,ST191..JPP..GL LH; AT190,CT190..JPP..LHD..XL W(*EL W/INTLKNG KNOB),LH |
84931-20290 |
US $48.48 |
||
|
85921
|
85921
85921-20080 Relay, Sliding Roof Control[11.1992 - 02.1994] AT190,CT190,ST191..JPP |
85921-20080 |
US $365.46 |
||
|
85940B
|
85940B
85940-21030 Relay Assy, Rear WiperREAR WIPER [11.1992 - 02.1994] AT190,CT190,ST191..JPP |
85940-21030 |
US $149.97 |
||
|
85940B
|
85940B
85940-21031 Relay Assy, Rear WiperREAR WIPER [02.1994 - 01.1996] AT19#,CT190,ST191..JPP |
85940-21031 |
US $149.97 |
||
| replacement | |||||
|
85940B
|
85940B
85940-21030 Relay Assy, Rear WiperREAR WIPER [02.1994 - 01.1996] AT19#,CT190,ST191..JPP |
85940-21030 |
US $149.97 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
