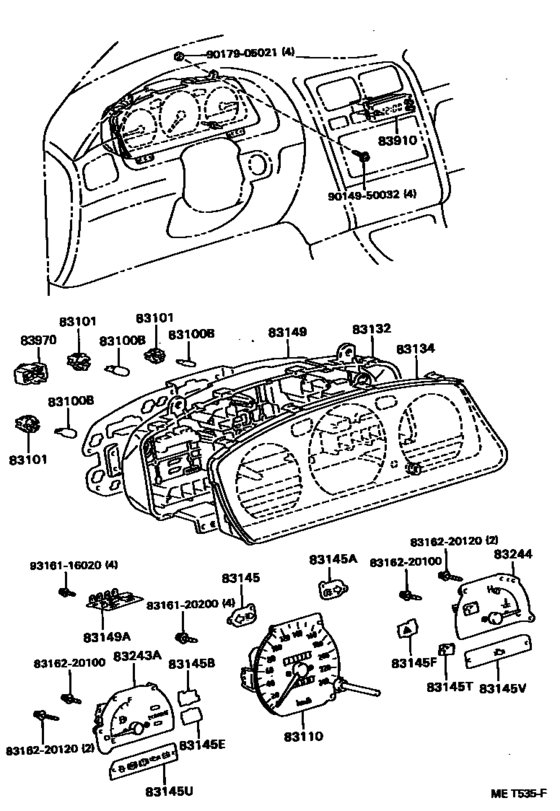

Meter ([02.1992 - ] W/O(TACHOMETER) (9202- )JPP) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E SED/LB (JPP)
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Carina E SED/LB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[02.1992 - 01.1996] CT190..JPP..RHD 12V 3.4W W(GREEN CAP); CT190..JPP..LHD 12V 3.4W W(GREEN CAP),W(TACHOMETER) |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[02.1992 - 01.1996] CT190..JPP;ST191..JPP..RHD..MTM;AT190..JPP..LHD..SED..MTM..XL 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[02.1992 - 01.1996] AT190,CT190,ST191..JPP 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[02.1992 - 01.1996] AT190,CT190,ST191..JPP 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[02.1992 - 01.1996] CT190..JPP;ST191..JPP..RHD..MTM;AT190..JPP..LHD..SED..MTM..XL BULB:12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[02.1992 - 01.1996] AT190,CT190,ST191..JPP BULB:12V 3.4W |
83101-20040 |
from US $1.77 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[02.1992 - 01.1996] CT190..JPP..RHD BULB:12V 3.4W,G.CAP; CT190..JPP..LHD BULB:12V 3.4W,G.CAP |
83101-20070 |
US $7.84 |
||
|
83110
|
83110
83110-2D280 Speedometer Assy[02.1992 - 02.1994] CT190..JPP..RHD |
83110-2D280 |
US $413.50 |
||
|
83110
|
83110
83110-2D281 Speedometer Assy[02.1994 - 01.1996] CT190..JPP..RHD |
83110-2D281 |
US $400.40 |
||
|
83110
|
83110
83110-2D330 Speedometer Assy[02.1992 - 02.1994] CT190..JPP..RHD W(TACHOMETER) |
83110-2D330 |
US $413.50 |
||
|
83110
|
83110
83110-2D630 Speedometer Assy[02.1994 - 01.1996] CT190..JPP..RHD W(TACHOMETER) |
83110-2D630 |
US $400.40 |
||
|
83132
|
83132
83132-20620 Case, Combination Meter[02.1992 - 05.1993] AT190,CT190..JPP..XL |
83132-20620 |
US $84.45 |
||
|
83132
|
83132
83132-20660 Case, Combination MeterCOMBINATION METER [02.1992 - 02.1994] CT190..JPP..LHD KM,W(TACHOMETER); CT190..JPP..RHD MPH/KM,W(TACHOMETER); AT190..JPP..RHD..XL MPH/KM,W(TACHOMETER) |
83132-20660 |
US $84.45 |
||
|
83132
|
83132
83132-2D080 Case, Combination MeterCOMBINATION METER [02.1994 - 01.1996] AT190,ST191..JPP..RHD..(GL,GT); CT190..JPP..LHD KM,W(TACHOMETER); CT190..JPP..RHD MPH/KM,W(TACHOMETER) |
83132-2D080 |
US $84.45 |
||
|
83134
|
83134
83134-20180 Cover, Combination Meter, No.1[02.1992 - 05.1993] AT190,CT190..JPP..XL |
83134-20180 |
US $84.45 |
||
|
83134
|
83134
83134-20240 Cover, Combination Meter, No.1[02.1992 - 01.1996] AT190,ST191..JPP..MTM..(GL,GT); CT190..JPP..RHD W(TACHOMETER); CT190..JPP..LHD W(TACHOMETER); AT190..JPP..LHD..MTM..XL W(TACHOMETER) |
83134-20240 |
US $84.45 |
||
|
83145
|
83145
83145-2D640 Lens, Meter, No.1[11.1993 - 02.1994] AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..ATM;AT190..JPP..LHD..LB..XL;AT19 0..JPP..LHD..MTM..GL; AT190..JPP..LHD..SED..MTM..XL W(*66) OR W(TACHOMETER) |
83145-2D640 |
US $8.30 |
||
|
83145
|
83145
83146-20520 Lens, Meter, No.1[02.1992 - 11.1993] AT190,CT190,ST191..JPP |
83146-20520 |
US $8.15 |
||
|
83145A
|
83145A
83145-2D720 Lens, Meter, No.1[11.1993 - 01.1996] AT190,CT190,ST191..JPP |
83145-2D720 |
US $8.15 |
||
|
83145A
|
83145A
83146-20700 Lens, Meter, No.2METER, NO.2 [02.1992 - 11.1993] AT190,CT190,ST191..JPP |
83146-20700 |
US $8.15 |
||
|
83145F
|
83145F
83146-20360 Lens, Meter, No.7METER, NO.7 [02.1992 - 01.1996] AT190,CT190..JPP..XL |
83146-20360 |
US $8.15 |
||
|
83145U
|
83145U
83145-2A480 Lens, Meter, No.9METER, NO.9 [11.1993 - 01.1996] AT190,CT190..JPP..XL |
83145-2A480 |
US $8.15 |
||
|
83145U
|
83145U
83146-20320 Lens, Meter, No.9METER, NO.9 [02.1992 - 11.1993] AT190,CT190..JPP..XL |
83146-20320 |
US $8.15 |
||
|
83145V
|
83145V
83145-2A640 Lens, Meter, No.10METER, NO.10 [11.1993 - 01.1996] CT190..JPP |
83145-2A640 |
US $8.15 |
||
|
83145V
|
83145V
83146-20480 Lens, Meter, No.10METER, NO.10 [02.1992 - 11.1993] CT190..JPP |
83146-20480 |
US $8.15 |
||
|
83149
|
83149
83149-20240 Plate, Meter CircuitMETER CIRCUIT [02.1992 - 01.1996] CT190..JPP |
83149-20240 |
US $57.80 |
||
|
83149
|
83149
83149-20560 Plate, Meter CircuitMETER CIRCUIT [02.1992 - 01.1996] CT190..JPP..RHD W(TACHOMETER); CT190..JPP..LHD W(TACHOMETER) |
83149-20560 |
US $57.80 |
||
|
83243A
|
83243A
83243-20620 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [02.1992 - 01.1996] CT190..JPP;AT190..JPP..RHD..XL |
83243-20620 |
US $75.71 |
||
|
83243A
|
83243A
83243-20760 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [02.1992 - 02.1994] CT190..JPP..LHD KM,W(TACHOMETER); CT190..JPP..RHD MPH/KM,W(TACHOMETER) |
83243-20760 |
US $177.63 |
||
|
83243A
|
83243A
83243-2D120 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [02.1994 - 01.1996] CT190..JPP..LHD KM,W(TACHOMETER); CT190..JPP..RHD MPH/KM,W(TACHOMETER) |
83243-2D120 |
US $177.63 |
||
|
83244
|
83244
83244-20540 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [02.1992 - 01.1996] CT190..JPP;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..MTM..XL |
83244-20540 |
US $70.32 |
||
|
83910
|
83910
83910-20640 Clock Assy[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
83910-20640 |
US $423.70 |
||
|
8316120200
|
8316120200
83161-20200 Case, Combination Meter Mirror, No.1 |
83161-20200 |
US $0.99 |
||
|
8316220100
|
8316220100
83162-20100 Case, Combination Meter Mirror, No.2 |
83162-20100 |
US $1.46 |
||
|
8316220120
|
8316220120
83162-20120 Case, Combination Meter Mirror, No.2 |
83162-20120 |
US $1.02 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.28 |
||
|
9017905021
|
9017905021
90179-05021 NUT |
90179-05021 |
US $1 |
||
|
9316116020
|
9316116020
93161-16020
New Genuine Part
|
93161-16020 |
— | ||
