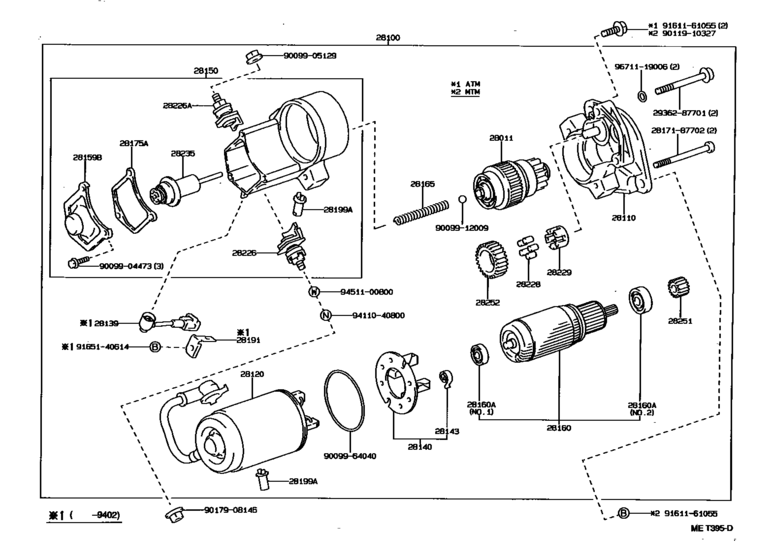

Starter ([02.1992 - ] 12V 2.2KW (NIPPONDENSO) (9202- )2C..JPP) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E SED/LB (JPP)
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Carina E SED/LB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64010 Clutch Sub-Assy, Starter[02.1992 - 01.1996] 2C..CT190..JPP |
28011-64010 |
US $310.13 |
||
| replacement | |||||
|
28011
|
28011
28011-67030 Clutch Sub-Assy, Starter[02.1992 - 01.1996] 2C..CT190..JPP |
28011-67030 |
from US $208.88 |
||
|
28100
|
28100
28100-64210 Starter Assy[02.1992 - 02.1994] 2C..CT190..JPP 12V 2.2KW |
28100-64210 |
US $1,980.16 |
||
|
28100
|
28100
28100-64310 Starter Assy[02.1994 - 01.1996] 2C..CT190..JPP 12V 2.2KW |
28100-64310 |
US $1,994.72 |
||
|
28110
|
28110
28115-64040
Housing Assy, Starter Drive
[02.1994 - 01.1996] 2C..CT190..JPP |
28115-64040 |
— | ||
|
28110
|
28110
28115-64210
Housing Assy, Starter Drive
[02.1992 - 02.1994] 2C..CT190..JPP |
28115-64210 |
— | ||
| replacement | |||||
|
28110
|
28110
28115-64140
Housing Assy, Starter Drive
[02.1992 - 02.1994] 2C..CT190..JPP |
28115-64140 |
— | ||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[02.1992 - 01.1996] 2C..CT190..JPP |
28120-64040 |
— | ||
|
28139
|
28139
28139-64140
Wire, Lead, No.1(For Starter)
[02.1992 - 02.1994] 2C..CT190..JPP |
28139-64140 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[02.1992 - 01.1996] 2C..CT190..JPP |
28140-64040 |
from US $37.19 |
||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[02.1992 - 01.1996] 2C..CT190..JPP |
90099-17115 |
— | ||
|
28150
|
28150
28150-64210 Switch Assy, Magnet Starter[02.1992 - 02.1994] 2C..CT190..JPP |
28150-64210 |
US $310.13 |
||
| replacement | |||||
|
28150
|
28150
28150-64041 Switch Assy, Magnet Starter[02.1992 - 02.1994] 2C..CT190..JPP |
28150-64041 |
US $195.10 |
||
|
28150
|
28150
28150-64310 Switch Assy, Magnet Starter[02.1994 - 01.1996] 2C..CT190..JPP |
28150-64310 |
US $311.58 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[02.1992 - 01.1996] 2C..CT190..JPP |
28159-10040 |
— | ||
|
28160
|
28160
28160-64041 Armature Assy, Starter[02.1992 - 01.1996] 2C..CT190..JPP |
28160-64041 |
US $242.86 |
||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[02.1992 - 01.1996] 2C..CT190..JPP NO.1 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[02.1992 - 01.1996] 2C..CT190..JPP NO.2 |
90099-10143 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[02.1992 - 01.1996] 2C..CT190..JPP |
28165-26040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[02.1992 - 01.1996] 2C..CT190..JPP |
28175-10040 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[02.1992 - 01.1996] 2C..CT190..JPP |
28199-46080 |
from US $2.97 |
||
|
28226
|
28226
28226-76100 Starter Kit, Battery Terminal[02.1992 - 01.1996] 2C..CT190..JPP |
28226-76100 |
from US $13.63 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[02.1992 - 01.1996] 2C..CT190..JPP |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[02.1992 - 01.1996] 2C,3S#..CT190,ST191..JPP; 4AFE..AT190..JPP COLD SPEC |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[02.1992 - 01.1996] 2C..CT190..JPP |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[02.1992 - 01.1996] 2C..CT190..JPP |
28235-35080 |
from US $25.68 |
||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[02.1992 - 01.1996] 2C..CT190..JPP |
28251-54070 |
— | ||
|
28252
|
28252
28254-64040
Pinion, Starter Drive
[02.1992 - 01.1996] 2C..CT190..JPP |
28254-64040 |
— | ||
|
2817187702
|
2817187702
28171-87702
Bolt, Starter
|
28171-87702 |
— | ||
|
2936287701
|
2936287701
29362-87701
Bolt, Starter
|
29362-87701 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009964040
|
9009964040
90099-64040
Rubber(For Starter Yoke)
|
90099-64040 |
— | ||
|
9011910327
|
9011910327
90119-10327 New Genuine Part |
90119-10327 |
US $4.51 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9671119006
|
9671119006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $2.88 |
||
