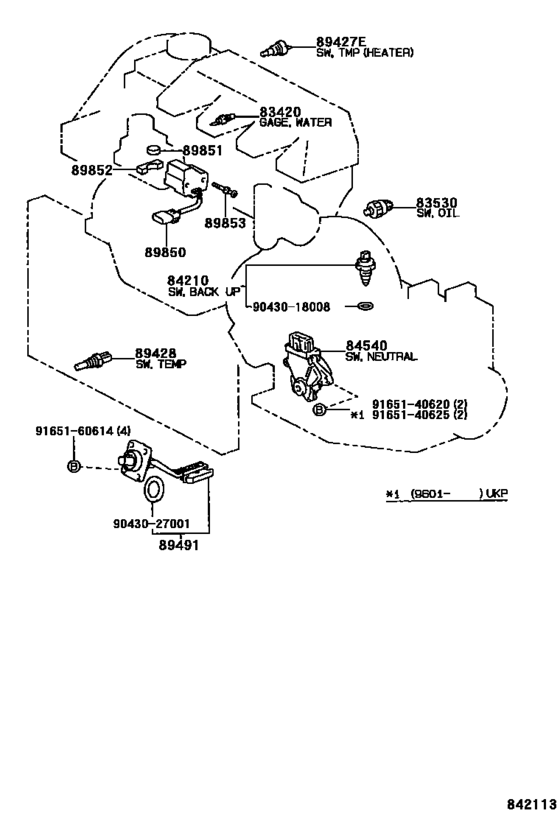

Switch & Relay & Computer ([02.1992 - ] ENGINE & TRANSMISSION (9202- )CT190..JPP) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E SED/LB (JPP)
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Carina E SED/LB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[02.1992 - 05.1992] CT190,ST191..JPP |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30100
Switch Assy, Oil Pressure (For Engine)
[02.1992 - 01.1996] CT190..JPP |
83530-30100 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[02.1992 - 01.1996] CT190..JPP |
83530-60010 |
from US $26.29 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[02.1992 - 01.1996] AT190,CT190,ST191..JPP..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[02.1992 - 01.1996] AT190,CT190,ST191..JPP..MTM |
84210-52050 |
from US $20.67 |
||
|
89427E
|
89427E
89427-12051 Switch, Temperature Detect[02.1992 - 01.1996] CT190..JPP |
89427-12051 |
US $77.17 |
||
|
89428
|
89428
89428-33010 Switch, Temperature Detect[02.1992 - 01.1996] CT190,ST191..JPP |
89428-33010 |
from US $88.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.09 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
