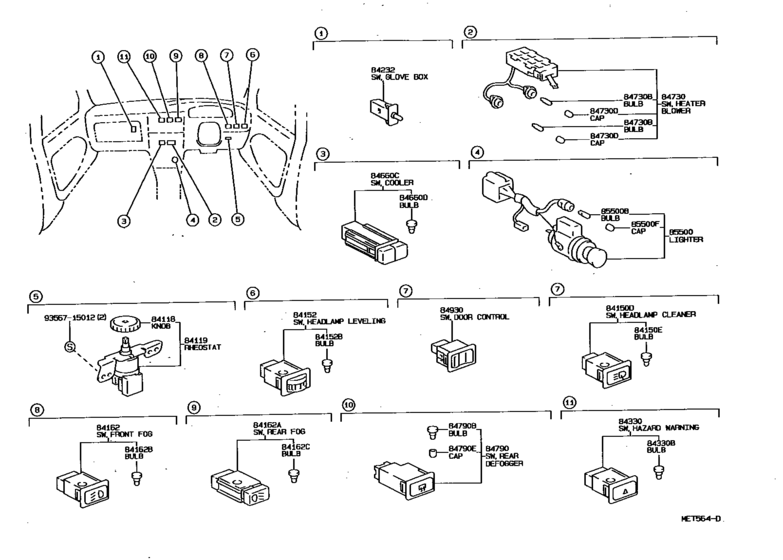

Switch & Relay & Computer ([02.1992 - ] INSTRUMENT PANEL SWITCH (9202- )JPP..RHD) Diagram Toyota CARINA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- CARINA E SED/LB (JPP)
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Carina E SED/LB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-14020 Knob, Light Control Rheostat[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84118-14020 |
US $12.81 |
||
|
84119
|
84119
84119-20211 Rheostat, Light Control[02.1992 - 01.1996] AT190,CT190,ST191..JPP..RHD |
84119-20211 |
US $81.54 |
||
|
84150D
|
84150D
84150-20040 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [02.1992 - 07.1992] ST191..JPP..LHD..GT; ST191..JPP..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD; AT190,CT190..JPP..LHD |
84150-20040 |
US $56.93 |
||
| replacement | |||||
|
84150D
|
84150D
84150-20050 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [02.1992 - 07.1992] ST191..JPP..LHD..GT; ST191..JPP..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD; AT190,CT190..JPP..LHD |
84150-20050 |
US $57.51 |
||
|
84150E
|
84150E
84999-10320 Bulb, Satellite Switch[02.1992 - 07.1992] ST191..JPP..LHD..GT 14V 0.84W; ST191..JPP..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD 14V 0.84W; AT190,CT190..JPP..LHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84152
|
84152
84152-20020
Switch, Headlamp Leveling
[02.1992 - 07.1992] AT190,CT190,ST191..JPP..RHD; ST191..JPP..LHD;AT190..JPP..LHD..MTM GERMANY SPEC |
84152-20020 |
— | ||
|
84152
|
84152
84152-21010 Switch, Headlamp LevelingHEADLAMP LEVELING [11.1992 - 02.1994] CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD; ST191..JPP..LHD..SED;AT190..JPP..LHD..SED..MTM GERMANY SPEC; ST191..JPP..LHD..LB;AT190..JPP..LHD..LB..MTM GERMANY SPEC OR W(HEAD LAMP LEVELING) |
84152-21010 |
US $68.72 |
||
|
84152B
|
84152B
84999-10540 Bulb (For Headlamp Leveling Switch)[02.1992 - 07.1992] AT190,CT190,ST191..JPP..RHD 14V 1.19W; ST191..JPP..LHD;AT190..JPP..LHD..MTM 14V 1.19W |
84999-10540 |
US $5.42 |
||
|
84162A
|
84162A
84165-20020 Switch, Rear Fog LampREAR FOG LAMP [02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84165-20020 |
US $56.93 |
||
|
84162C
|
84162C
84999-10320 Bulb, Satellite Switch[02.1992 - 01.1996] AT190,CT190,ST191..JPP 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84232
|
84232
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-20300 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84332-20300 |
US $56.93 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[02.1992 - 01.1996] AT190,CT190,ST191..JPP 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84660C
|
84660C
84660-20200 Switch, CoolerCOOLER [02.1992 - 12.1992] CT190..JPP..LHD; CT190..JPP..RHD;AT190,ST191..JPP |
84660-20200 |
from US $36.91 |
||
|
84660D
|
84660D
88607-10020
Bulb(For Cooler Switch)
[02.1994 - 05.1994] CT190..JPP..LHD 14V 0.08A; CT190..JPP..RHD;AT190,ST191..JPP 14V 0.08A |
88607-10020 |
— | ||
|
84730
|
84730
84732-20310 Switch Assy, Heater Blower[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84732-20310 |
US $68.43 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[02.1992 - 11.1992] AT190,CT190,ST191..JPP 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
90339-04023 Cap, Position Indicator Lamp[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
90339-04023 |
US $3.84 |
||
|
84790
|
84790
84790-20410 Switch Assy, Rear Window Defogger[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84790-20410 |
US $136.86 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[02.1992 - 01.1996] AT190,CT190,ST191..JPP 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84790B
|
84790B
84999-10560 Bulb(For Rear Window Defogger Switch)[02.1992 - 01.1996] AT190,CT190,ST191..JPP 12V 0.7W |
84999-10560 |
US $4.89 |
||
|
84790E
|
84790E
84998-10030 Cap, Bulb(For Rear Window Defogger Switch)[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84998-10030 |
US $2.77 |
||
|
85500
|
85500
85500-20230 Lighter Assy, Cigarette[02.1992 - 02.1994] AT190,CT190,ST191..JPP |
85500-20230 |
US $70.47 |
||
| replacement | |||||
|
85500
|
85500
85500-24040 Lighter Assy, Cigarette[02.1992 - 02.1994] AT190,CT190,ST191..JPP |
85500-24040 |
US $70.32 |
||
|
85500
|
85500
85500-20270 Lighter Assy, Cigarette[02.1994 - 01.1996] AT190,CT190,ST191..JPP |
85500-20270 |
US $70.47 |
||
| replacement | |||||
|
85500
|
85500
85500-24040 Lighter Assy, Cigarette[02.1994 - 01.1996] AT190,CT190,ST191..JPP |
85500-24040 |
US $70.32 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[02.1992 - 01.1996] AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[02.1992 - 01.1996] AT190,CT190,ST191..JPP |
84998-10510 |
US $3.68 |
||
|
9356715012
|
9356715012
93567-15012
New Genuine Part
|
93567-15012 |
— | ||
| replacement | |||||
|
9356715012
|
9356715012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
