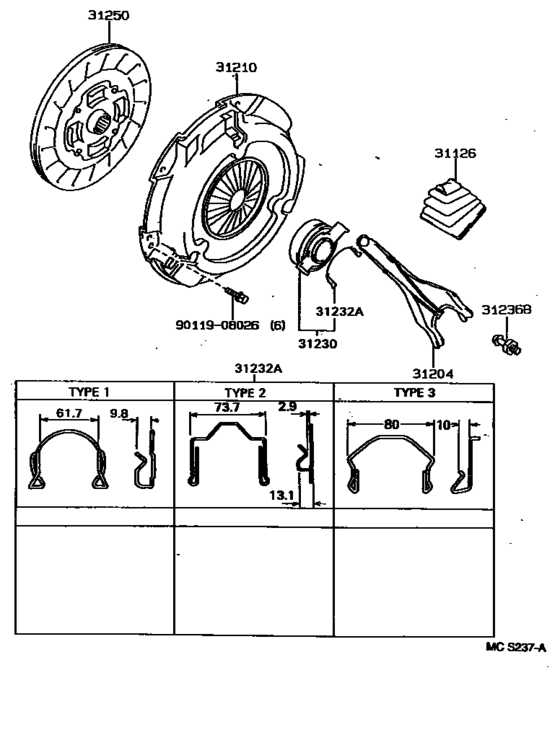

Clutch & Release Fork ([02.1992 - ] S50,S54 (9202- )CT190,ST191..UKP..MTM) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[12.1992 - 10.1997] CT190,ST191..UKP..MTM |
31126-32010 |
from US $12.83 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[12.1992 - 10.1997] CT190,ST191..UKP..MTM |
31204-20100 |
from US $30.40 |
||
|
31210
|
31210
31210-05020 Cover Assy, ClutchCLUTCH [12.1994 - 10.1996] CT190,ST191..UKP..MTM |
31210-05020 |
US $199.47 |
||
| replacement | |||||
|
31210
|
31210
31210-05024
Cover Assy, Clutch
[12.1994 - 10.1996] CT190,ST191..UKP..MTM |
31210-05024 |
— | ||
|
31210
|
31210
31210-05021 Cover Assy, ClutchCLUTCH [10.1996 - 10.1997] CT190,ST191..UKP..MTM |
31210-05021 |
US $199.47 |
||
| replacement | |||||
|
31210
|
31210
31210-05024
Cover Assy, Clutch
[10.1996 - 10.1997] CT190,ST191..UKP..MTM |
31210-05024 |
— | ||
|
31230
|
31230
31230-05020 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [12.1994 - 10.1997] CT190,ST191..UKP..MTM |
31230-05020 |
US $78.62 |
||
| replacement | |||||
|
31230
|
31230
31230-05021 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [12.1994 - 10.1997] CT190,ST191..UKP..MTM |
31230-05021 |
US $78.62 |
||
|
31232A
|
31232A
31232-05010
Clip, Release Bearing Hub
[12.1994 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
31232-05010 |
— | ||
|
31236B
|
31236B
31236-32010 Support, Release Fork[12.1992 - 10.1997] CT190,ST191..UKP..MTM |
31236-32010 |
US $12.48 |
||
|
31250
|
31250
31250-05030 Disc Assy, ClutchCLUTCH [10.1994 - 10.1997] CT190..UKP |
31250-05030 |
US $203.84 |
||
| replacement | |||||
|
31250
|
31250
31250-05042
Disc Assy, Clutch
[10.1994 - 10.1997] CT190..UKP |
31250-05042 |
— | ||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
