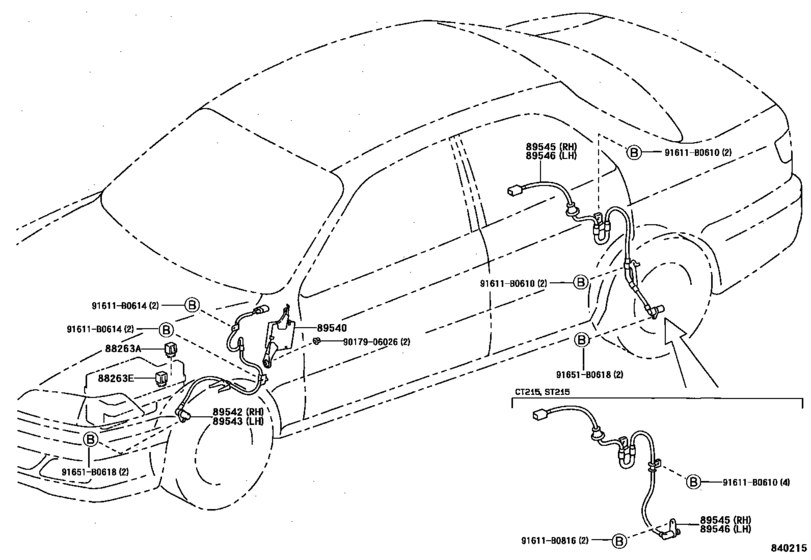

Abs & Vsc ([08.1996 - 08.1998] (9608-9808)) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- CT210
- grade
- TI
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88263A
|
88263A
88263-14110 Relay Assy, Circuit Opening (For Esc)[08.1996 - 08.1998] AT21#,CT21#,ST215 |
88263-14110 |
US $56.54 |
||
|
88263E
|
88263E
88263-24030 Relay, Skid Control[08.1996 - 08.1998] AT21#,CT21#,ST215 |
88263-24030 |
from US $48.40 |
||
|
89540
|
89540
89540-20370 Computer Assy, Skid Control[08.1996 - 08.1998] AT21#,CT210 |
89540-20370 |
US $808.08 |
||
|
89542
|
89542
89542-20130 Sensor, Speed[08.1996 -] AT21#,CT21#,ST215 |
89542-20130 |
US $292.66 |
||
|
89543
|
89543
89543-20130 Sensor, Speed[08.1996 -] AT21#,CT21#,ST215 |
89543-20130 |
US $292.66 |
||
|
89545
|
89545
89545-20140 Sensor, Speed[08.1996 - 08.1997] AT21#,CT210 |
89545-20140 |
US $292.66 |
||
| replacement | |||||
|
89545
|
89545
89545-21010 Sensor, Speed, Rear Rh[08.1996 - 08.1997] AT21#,CT210 |
89545-21010 |
US $292.66 |
||
|
89545
|
89545
89545-21010 Sensor, Speed, Rear Rh[08.1997 -] AT21#,CT210,211 |
89545-21010 |
US $292.66 |
||
|
89546
|
89546
89546-20140 Sensor, Speed[08.1996 - 08.1997] AT21#,CT210 |
89546-20140 |
US $292.66 |
||
| replacement | |||||
|
89546
|
89546
89546-21010 Sensor, Speed, Rear Lh[08.1996 - 08.1997] AT21#,CT210 |
89546-21010 |
US $292.66 |
||
|
89546
|
89546
89546-21010 Sensor, Speed, Rear Lh[08.1997 -] AT21#,CT210,211 |
89546-21010 |
US $292.66 |
||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
