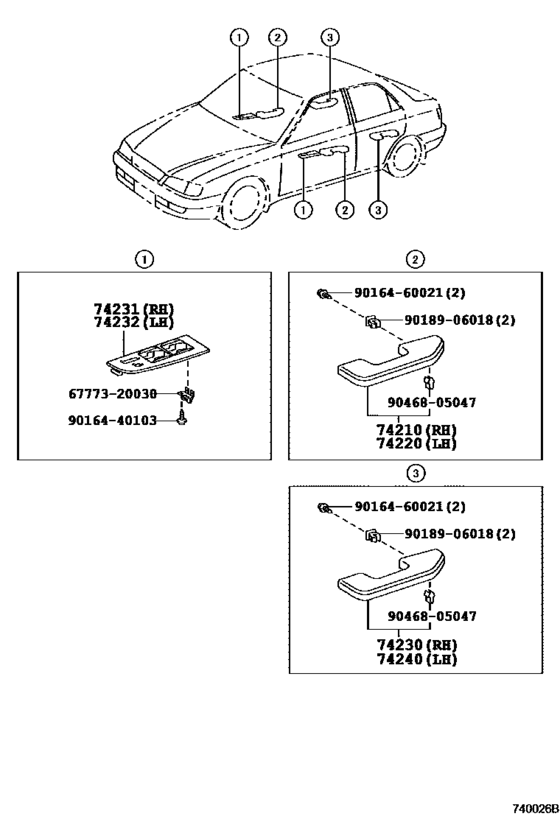

Armrest & Visor ([08.1996 - ] ｱ-ﾑﾚｽﾄ (9608- )) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- CT210
- grade
- TI
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-20190-B0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
74210-20190-B0 |
US $52.85 |
||
|
74210
|
74210
74210-20190-E0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74210-20190-E0 |
US $52.85 |
||
| replacement | |||||
|
74210
|
74210
74210-20190-B0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74210-20190-B0 |
US $52.85 |
||
|
74220
|
74220
74220-20190-B0
Armrest Assy, Front, Lh
[08.1996 - 08.1998] AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
74220-20190-B0 |
— | ||
|
74220
|
74220
74220-20190-E0 Armrest Assy, Front, Lh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74220-20190-E0 |
US $52.85 |
||
|
74230
|
74230
74210-20190-B0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
74210-20190-B0 |
US $52.85 |
||
|
74230
|
74230
74210-20190-E0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74210-20190-E0 |
US $52.85 |
||
| replacement | |||||
|
74230
|
74230
74210-20190-B0 Armrest Assy, Front, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74210-20190-B0 |
US $52.85 |
||
|
74231
|
74231
74231-20280-B0
Panel, Front Armrest Base, Upper Rh
[08.1996 - 08.1998] AT211,212,CT21#,ST215 SHADOW GRAY,TRIM1# |
74231-20280-B0 |
— | ||
|
74231
|
74231
74231-20280-E0
Panel, Front Armrest Base, Upper Rh
[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74231-20280-E0 |
— | ||
|
74231
|
74231
74231-20350 Panel, Front Armrest Base, Upper Rh[04.1997 - 08.1998] AT211,212,CT210,ST215 ﾓｸﾒ |
74231-20350 |
US $38.15 |
||
|
74232
|
74232
74232-20270-B0
Panel, Front Armrest Base, Upper Lh
[08.1996 - 08.1998] AT211,212,CT21#,ST215 SHADOW GRAY,TRIM1# |
74232-20270-B0 |
— | ||
|
74232
|
74232
74232-20270-E0
Panel, Front Armrest Base, Upper Lh
[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74232-20270-E0 |
— | ||
|
74232
|
74232
74232-20330 Panel, Front Armrest Base, Upper Lh[04.1997 - 08.1998] AT211,212,CT210,ST215 ﾓｸﾒ |
74232-20330 |
US $49.07 |
||
|
74240
|
74240
74220-20190-B0
Armrest Assy, Front, Lh
[08.1996 - 08.1998] AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
74220-20190-B0 |
— | ||
|
74240
|
74240
74220-20190-E0 Armrest Assy, Front, Lh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
74220-20190-E0 |
US $52.85 |
||
|
6777320030
|
6777320030
67773-20030
Clip, Door Trim Upper Retainer, No.1
|
67773-20030 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.72 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
