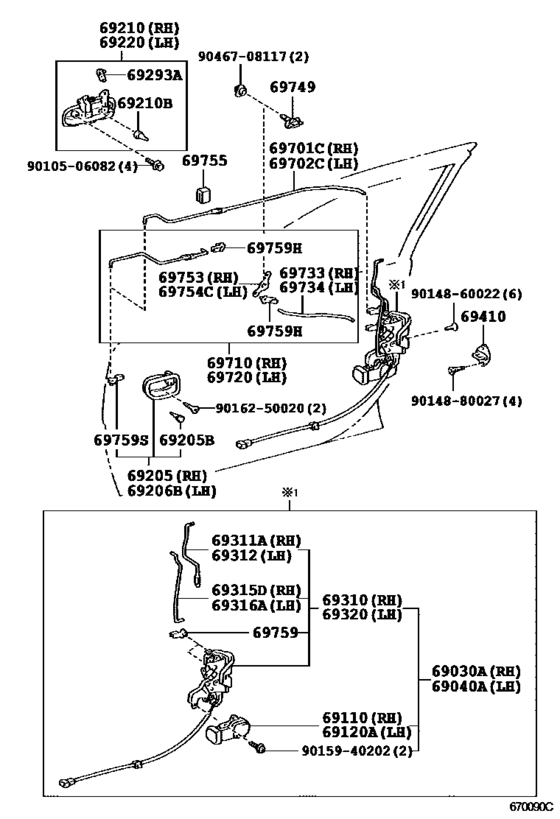

Front Door Lock & Handle ([08.1996 - ] (9608- )) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- CT210
- grade
- TI
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-20420 Lock Assy, Front Door W/motor, Rh[08.1996 -] AT21#,CT21#,ST215 |
69030-20420 |
US $224.22 |
||
|
69040A
|
69040A
69040-20520 Lock Assy, Front Door W/motor, Lh[08.1996 -] AT21#,CT21#,ST215 |
69040-20520 |
US $215.49 |
||
|
69110
|
69110
69110-20010 Actuator Assy, Front Door Lock, Rh[08.1996 -] AT21#,CT21#,ST215 |
69110-20010 |
US $122.30 |
||
|
69120A
|
69120A
69120-20010 Actuator Assy, Front Door Lock, Lh[08.1996 -] AT21#,CT21#,ST215 |
69120-20010 |
US $122.30 |
||
|
69205
|
69205
69205-20150-B0 Handle Sub-Assy, Front Door Inside, Rh[08.1996 -] AT21#,CT21#,ST215 SHADOW GRAY,TRIM11,13 |
69205-20150-B0 |
US $41.06 |
||
|
69205
|
69205
69205-20150-E0 Handle Sub-Assy, Front Door Inside, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
69205-20150-E0 |
US $41.06 |
||
| replacement | |||||
|
69205
|
69205
69205-20150-B0 Handle Sub-Assy, Front Door Inside, Rh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
69205-20150-B0 |
US $41.06 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[08.1996 -] AT21#,CT21#,ST215 |
90541-04014 |
from US $1.29 |
||
|
69206B
|
69206B
69206-20150-B0 Handle Sub-Assy, Front Door Inside, Lh[08.1996 -] AT21#,CT21#,ST215 SHADOW GRAY,TRIM11,13 |
69206-20150-B0 |
US $41.06 |
||
|
69206B
|
69206B
69206-20150-E0 Handle Sub-Assy, Front Door Inside, Lh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
69206-20150-E0 |
US $41.06 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20150-B0 Handle Sub-Assy, Front Door Inside, Lh[08.1996 - 08.1998] AT211,212,CT21#,ST215 ANTELOPE,TRIM4# |
69206-20150-B0 |
US $41.06 |
||
|
69210
|
69210
69210-20330-A0
Handle Assy, Front Door, Outside Rh
[08.1996 - 08.1998] AT21#,CT21#,ST215 SUPER WHITE 2,040 |
69210-20330-A0 |
— | ||
|
69210
|
69210
69210-20330-B2 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 SILVER ME,199 |
69210-20330-B2 |
US $90.27 |
||
|
69210
|
69210
69210-20330-G1 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 DK.GREEN M.M.,6P2 |
69210-20330-G1 |
US $90.27 |
||
|
69210
|
69210
69210-20330-G2 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 LT.GREEN ME.OP.,6P7 |
69210-20330-G2 |
US $90.27 |
||
|
69210
|
69210
69210-20330-J1 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 DK.BLUE M.M.,8L2 |
69210-20330-J1 |
US $90.27 |
||
|
69210
|
69210
69210-20330-K0 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT21#,CT21#,ST215 LAVENDER M.M.,925 |
69210-20330-K0 |
US $90.27 |
||
|
69210
|
69210
69210-20350 Handle Assy, Front Door, Outside Rh[08.1996 - 08.1998] AT212,CT21# |
69210-20350 |
US $90.27 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[08.1996 -] AT21#,CT21#,ST215 |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-20300-A0 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 SUPER WHITE 2,040 |
69220-20300-A0 |
US $90.27 |
||
|
69220
|
69220
69220-20300-B2 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 SILVER ME,199 |
69220-20300-B2 |
US $90.27 |
||
|
69220
|
69220
69220-20300-G1 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 DK.GREEN M.M.,6P2 |
69220-20300-G1 |
US $90.27 |
||
|
69220
|
69220
69220-20300-G2 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 LT.GREEN ME.OP.,6P7 |
69220-20300-G2 |
US $90.27 |
||
|
69220
|
69220
69220-20300-J1 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 DK.BLUE M.M.,8L2 |
69220-20300-J1 |
US $90.27 |
||
|
69220
|
69220
69220-20300-K0 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT21#,CT21#,ST215 LAVENDER M.M.,925 |
69220-20300-K0 |
US $90.27 |
||
|
69220
|
69220
69220-20350 Handle Assy, Front Door Outside, Lh[08.1996 - 08.1998] AT212,CT21# |
69220-20350 |
US $90.27 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[08.1996 -] AT21#,CT21#,ST215 右側 |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[08.1996 -] AT21#,CT21#,ST215 左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-20660 Lock Assy, Front Door, Rh[08.1996 -] AT21#,CT21#,ST215 |
69310-20660 |
US $131.04 |
||
|
69311A
|
69311A
69311-20100 Rod, Front Door Lock Open, Rh[08.1996 -] AT21#,CT21#,ST215 |
69311-20100 |
US $9.03 |
||
|
69312
|
69312
69312-20140 Rod, Front Door Lock Open, Lh[08.1996 -] AT21#,CT21#,ST215 |
69312-20140 |
US $9.03 |
||
|
69315D
|
69315D
69315-20180 Link, Front Door Outside Locking, Rh[08.1996 -] AT21#,CT21#,ST215 |
69315-20180 |
US $9.03 |
||
|
69316A
|
69316A
69316-20160 Link, Front Door Outside Locking, Lh[08.1996 -] AT21#,CT21#,ST215 |
69316-20160 |
US $9.03 |
||
|
69320
|
69320
69320-20650 Lock Assy, Front Door, Lh[08.1996 -] AT21#,CT21#,ST215 |
69320-20650 |
US $115.02 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[08.1996 -] AT21#,CT21#,ST215 |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[08.1996 -] AT21#,CT21#,ST215 |
69410-AA020 |
US $37.29 |
||
|
69701C
|
69701C
69701-20070 Link Sub-Assy, Front Door Lock Control, Rh[08.1996 -] AT21#,CT21#,ST215 |
69701-20070 |
US $15.14 |
||
|
69702C
|
69702C
69702-20070 Link Sub-Assy, Front Door Lock Control, Lh[08.1996 -] AT21#,CT21#,ST215 |
69702-20070 |
US $15.14 |
||
|
69710
|
69710
69710-20080 Link Assy, Front Door Open Control, Rh[08.1996 -] AT21#,CT21#,ST215 |
69710-20080 |
US $24.17 |
||
|
69720
|
69720
69720-20080 Link Assy, Front Door Open Control, Lh[08.1996 -] AT21#,CT21#,ST215 |
69720-20080 |
US $24.17 |
||
|
69733
|
69733
69733-20140 Link, Front Door Inside Locking, Rh[08.1996 -] AT21#,CT21#,ST215 |
69733-20140 |
US $9.03 |
||
|
69734
|
69734
69733-20140 Link, Front Door Inside Locking, Rh[08.1996 -] AT21#,CT21#,ST215 |
69733-20140 |
US $9.03 |
||
|
69749
|
69749
69749-32030 Clamp, Front Door Lock Link[08.1996 -] AT21#,CT21#,ST215 |
69749-32030 |
US $1.60 |
||
|
69753
|
69753
69753-20080 Bellcrank, Door Lock Control, Rh[08.1996 -] AT21#,CT21#,ST215 |
69753-20080 |
US $4.66 |
||
|
69754C
|
69754C
69753-20080 Bellcrank, Door Lock Control, Rh[08.1996 -] AT21#,CT21#,ST215 |
69753-20080 |
US $4.66 |
||
|
69755
|
69755
69759-12060 Pad, Back Panel Silencer, Upper[08.1996 -] AT21#,CT21#,ST215 |
69759-12060 |
US $3.93 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[08.1996 -] AT21#,CT21#,ST215 左側，シロ |
69759-24010 |
from US $2.22 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[08.1996 -] AT21#,CT21#,ST215 ﾗｲﾄ,ﾌﾞﾙ- |
69759-24020 |
from US $2.88 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[08.1996 -] AT21#,CT21#,ST215 左側，グリーン |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[08.1996 -] AT21#,CT21#,ST215 右側、グレー |
69759-24060 |
from US $4.64 |
||
|
69759H
|
69759H
69759-24080 Snap, Front Door Lock Control Rod[08.1996 -] AT21#,CT21#,ST215 イエロー |
69759-24080 |
US $3.20 |
||
|
69759H
|
69759H
69759-24090 Snap, Front Door Lock Control Rod[08.1996 -] AT21#,CT21#,ST215 ブラウン |
69759-24090 |
US $2.88 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[08.1996 -] AT21#,CT21#,ST215 右側 |
69759-14050 |
from US $2.24 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[08.1996 -] AT21#,CT21#,ST215 左側 |
69759-24070 |
US $2.88 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9016250020
|
9016250020
90162-50020 SCREW, OVAL COUNTERS |
90162-50020 |
US $0.44 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
