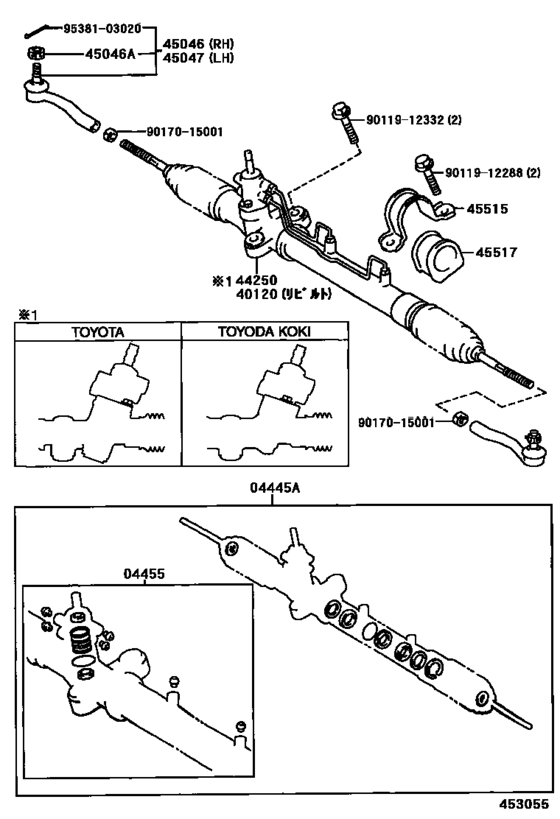

Front Steering Gear & Link ([08.1996 - ] (9608- )AT21#,CT210,211) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- CT210
- grade
- TI
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-20240 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1996 - 12.2001] CT210,211 |
04445-20240 |
from US $113.57 |
||
|
04455
|
04455
04455-20120 Gasket Kit, Power Steering Control Valve Overhole[08.1996 - 08.1998] AT210,CT21#,ST215 |
04455-20120 |
US $51.11 |
||
|
40120
|
40120
40120-20691 Gear Assy,power Steering,rebuilt[08.1996 - 12.2001] CT210,211 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-20691 |
US $1,009.01 |
||
|
44250
|
44250
44250-20691 Gear Assy, Power Steering(For Rack & Pinion)[08.1996 - 12.2001] CT210,211 |
44250-20691 |
US $1,438.53 |
||
|
45046
|
45046
45046-29335 End Sub-Assy, Tie Rod, Rh[08.1996 - 12.2001] AT21#,CT210,211 |
45046-29335 |
US $67.79 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1996 -] AT21#,CT21#,ST215 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-29105 End Sub-Assy, Tie Rod, Lh[08.1996 - 12.2001] AT21#,CT210,211 |
45047-29105 |
US $67.79 |
||
|
45515
|
45515
45515-20150 Bracket, Steering Rack Housing, No.2[08.1996 -] AT210,CT210,211 |
45515-20150 |
US $14.56 |
||
|
45517
|
45517
45517-20150
Grommet, Steering Rack Housing, No.2
[08.1996 - 01.1998] AT211 ＴＯＹＯＤＡ ＫＯＫＩ; AT210,CT210 |
45517-20150 |
— | ||
| replacement | |||||
|
45517
|
45517
45517-20250 Grommet, Steering Rack Housing, No.2[08.1996 - 01.1998] AT211 ＴＯＹＯＤＡ ＫＯＫＩ; AT210,CT210 |
45517-20250 |
US $14.85 |
||
|
45517
|
45517
45517-20250 Grommet, Steering Rack Housing, No.2[01.1998 - 12.2001] AT211 ＴＯＹＯＤＡ ＫＯＫＩ; AT210,CT210,211 |
45517-20250 |
US $14.85 |
||
|
9011912288
|
9011912288
90119-12288 Bolt |
90119-12288 |
US $2.97 |
||
|
9011912332
|
9011912332
90119-12332 New Genuine Part |
90119-12332 |
US $5.07 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.79 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
