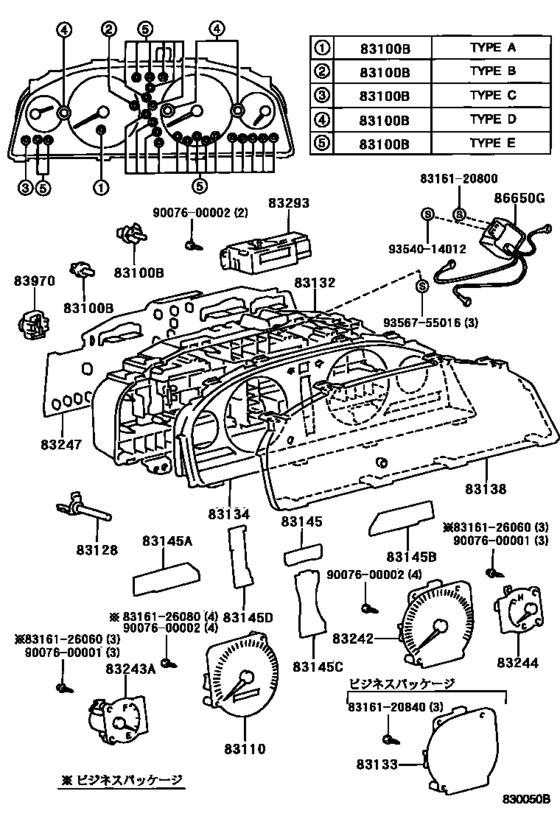

Meter ([08.1996 - 08.1998] (9608-9808)) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- CT210
- grade
- TI
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[08.1996 - 08.1998] AT21#,CT21#,ST215 １２Ｖ １．４Ｗ，ソケット付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
83120-60020 |
from US $3.80 |
||
|
83100B
|
83100B
90010-06001 Bulb, Combination Meter, No.1[08.1996 - 08.1998] AT211,212,CT21#,ST215 １２Ｖ １．４Ｗ，グリーン キャップ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-06001 |
US $3.35 |
||
|
83100B
|
83100B
90010-06002 Bulb, Combination Meter, No.1[08.1996 - 08.1998] AT211,212,CT21#,ST215 １２Ｖ ３．０Ｗ，グリーン キャップ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-06002 |
US $3.32 |
||
|
83100B
|
83100B
90010-06003 Bulb, Combination Meter, No.1[08.1996 - 08.1998] AT21#,CT21#,ST215 １４Ｖ ３．０Ｗ，ソケット付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-06003 |
from US $1.66 |
||
|
83100B
|
83100B
90010-06006 Bulb, Combination Meter, No.1[08.1996 - 08.1998] AT211,212,CT21#,ST215 １２Ｖ ３．４Ｗ，グリーン キャップ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-06006 |
from US $1.93 |
||
|
83110
|
83110
83220-20110 Speedometer Assy[08.1996 - 08.1998] AT211,212,CT21#,ST215 |
83220-20110 |
US $384.38 |
||
|
83128
|
83128
83224-44010 Knob, Trip Counter[08.1996 -] AT21#,CT21#,ST215 |
83224-44010 |
US $5.82 |
||
|
83132
|
83132
83841-20410 Case, Combination Meter[08.1996 - 08.1998] AT21#,CT21#,ST215 |
83841-20410 |
US $50.09 |
||
|
83134
|
83134
83851-44010 Cover, Combination Meter, No.1[08.1996 - 08.1998] AT211,212,CT210,ST215..4FC |
83851-44010 |
US $84.45 |
||
| replacement | |||||
|
83134
|
83134
83821-44010 Cover, Combination Meter, No.1[08.1996 - 08.1998] AT211,212,CT210,ST215..4FC |
83821-44010 |
US $84.45 |
||
|
83138
|
83138
83852-20130 Glass, Speedometer[08.1996 -] AT21#,CT21#,ST215 |
83852-20130 |
US $28.25 |
||
|
83145
|
83145
83831-20130 Lens, Meter, No.1[08.1996 -] AT21#,CT21#,ST215 |
83831-20130 |
US $7.43 |
||
|
83145A
|
83145A
83831-20180 Lens, Meter, No.2[08.1996 - 08.1998] CT21# |
83831-20180 |
US $7.43 |
||
|
83145B
|
83145B
83832-20180 Lens, Meter, No.3[08.1996 -] CT210,211,215 |
83832-20180 |
US $7.43 |
||
| replacement | |||||
|
83145B
|
83145B
83831-20660
Lens, Meter, No.3
[08.1996 -] CT210,211,215 |
83831-20660 |
— | ||
|
83145C
|
83145C
83831-44010 Lens, Meter, No.4[08.1996 -] AT21#,CT210,211,216,ST215..4FC |
83831-44010 |
US $7.57 |
||
|
83145D
|
83145D
83887-44010
Lens, Meter, No.5
[08.1996 -] AT21#,CT210,211,216,ST215..4FC |
83887-44010 |
— | ||
|
83242
|
83242
83881-20450 Tachometer Assy, Engine[08.1996 - 08.1998] CT21# |
83881-20450 |
US $541.63 |
||
|
83243A
|
83243A
83882-20410 Gauge Sub-Assy, Fuel Receiver[08.1996 - 08.1998] AT211,212,CT21#,ST215 |
83882-20410 |
US $75.71 |
||
|
83244
|
83244
83883-20410 Gauge Sub-Assy, Water Temperature Receiver[08.1996 - 08.1998] AT211,212,CT21#,ST215 |
83883-20410 |
US $70.76 |
||
|
83247
|
83247
83861-20420 Plate, Meter Circuit[08.1996 - 11.1997] AT21#,CT210..4FC |
83861-20420 |
US $57.95 |
||
|
83293
|
83293
83293-20020 Computer, Total Counter Module[08.1996 - 08.1998] CT21# |
83293-20020 |
US $375.65 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[08.1996 -] ST215..4FC..SI;AT21#,CT210..4FC |
83970-12020 |
US $38.61 |
||
|
86650G
|
86650G
86650-33020 Chime, Speed Warning[08.1996 -] AT21#,CT21#,ST215 |
86650-33020 |
US $39.60 |
||
|
8316120800
|
8316120800
83161-20800 Case, Combination Meter Mirror, No.1 |
83161-20800 |
US $1.46 |
||
|
8316120840
|
8316120840
83161-20840 Case, Combination Meter Mirror, No.1 |
83161-20840 |
US $1.02 |
||
|
8316126060
|
8316126060
83161-26060 Case, Combination Meter Mirror, No.1 |
83161-26060 |
US $1.16 |
||
|
8316126080
|
8316126080
83161-26080 Case, Combination Meter Mirror, No.1 |
83161-26080 |
US $1.60 |
||
|
9007600001
|
9007600001
90076-00001 SCREW WITH WASHER |
90076-00001 |
US $3.06 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
