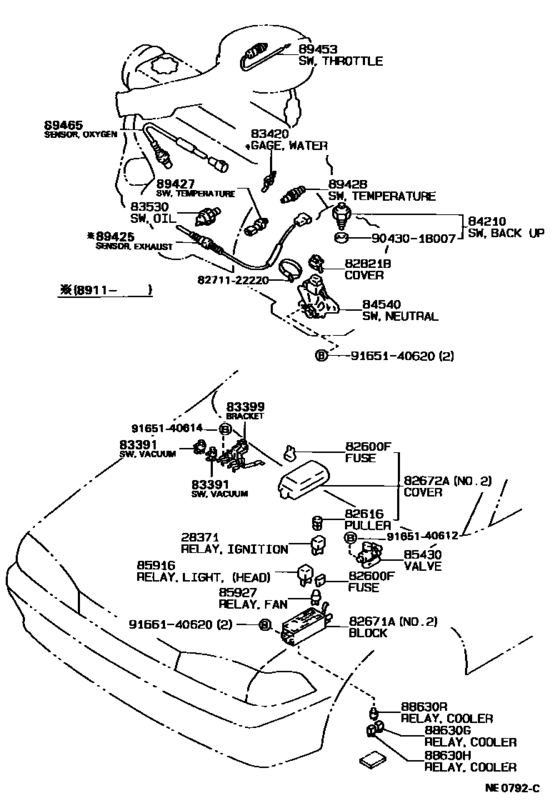

Switch & Relay & Computer ([05.1988 - ] (8805- )ET176) Diagram Toyota CARINA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- ET176
- grade
- STD
- body
- VAN
- ENGINE
- 3E
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 11.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[05.1988 - 11.1992] 4AF#,4AGE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170 |
90987-04002 |
from US $25.17 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[05.1988 - 11.1989] AT170,171,ET176..DX,GLIM,SG,STD,SV １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1988 - 11.1989] AT170,ET176..DX,SG,STD,SV １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 |
82616-12010 |
from US $3.04 |
||
|
82671A
|
82671A
82671-20090 Block, Junction[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 ＮＯ．４ |
82671-20090 |
US $230.05 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 ＮＯ．１ |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20110 Block, Junction[05.1988 - 11.1989] AT170..4FC;AT170..MTM..(DX,SE,SV);AT171,175,CT17#,ET176,ST170 ＮＯ．３ |
82671-20110 |
US $230.05 |
||
|
82671A
|
82671A
82671-32030
Block, Junction
[05.1988 - 05.1990] AT170,ET176 ＮＯ．２ |
82671-32030 |
— | ||
|
82672A
|
82672A
82672-20310 Cover, Junction Block[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 ＮＯ．３ |
82672-20310 |
US $8.15 |
||
|
82672A
|
82672A
82672-20330 Cover, Junction Block[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 ＮＯ．１ |
82672-20330 |
US $9.76 |
||
|
82672A
|
82672A
82672-20430 Cover, Junction Block[05.1988 - 05.1990] AT170,ET176 ＮＯ．２ |
82672-20430 |
US $30.87 |
||
|
82672A
|
82672A
82672-20790 Cover, Junction Block[12.1990 - 11.1992] AT170..SE,SGEXT,SV;AT170..4FC..(DX,SG);AT171,175,CT17#,ET176,ST170 ＮＯ．１ |
82672-20790 |
US $8.88 |
||
|
82821B
|
82821B
82821-12250
Cover, Connector
[05.1990 - 03.1992] AT17#,CT17#,ET176,ST170..MTM..(DX,S,SE,SG,SGEXT,STD,SV,SX) |
82821-12250 |
— | ||
|
82821B
|
82821B
82821-12251
Cover, Connector
[03.1992 - 11.1992] AT17#,CT17#,ET176,ST170..MTM..(DX,S,SE,SG,SGEXT,STD,SV,SX) |
82821-12251 |
— | ||
|
83391
|
83391
83391-12170 Switch, Vacuum[11.1989 - 11.1992] ET176 MARK=120FM |
83391-12170 |
US $60.72 |
||
|
83391
|
83391
83391-12230 Switch, Vacuum[11.1989 - 11.1992] ET176 MARK=250FB |
83391-12230 |
US $60.72 |
||
|
83399
|
83399
83399-20180 Bracket, Vacuum Switch[11.1989 - 11.1992] ET176 |
83399-20180 |
US $8.30 |
||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[05.1988 - 11.1992] AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[05.1988 - 08.1989] ET176,ST170 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[05.1988 - 08.1989] ET176,ST170 |
83530-60040 |
from US $34.52 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170..MTM..(DX,S,SE,SG,SGEXT,STD,SV,SX) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170..MTM..(DX,S,SE,SG,SGEXT,STD,SV,SX) |
84210-52050 |
from US $20.67 |
||
|
85430
|
85430
90925-09034 Valve, Outer Vent Control[05.1988 - 11.1992] ET176 |
90925-09034 |
US $62.46 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 MARUKO,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 *ND,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-03001 Relay[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
90987-03001 |
from US $31.32 |
||
|
88630G
|
88630G
85926-30020 Relay, Headlamp Dimmer[05.1988 - 03.1989] AT170..(4FC,5F)..SG; AT170..4F..SG; CT17#..DX,SG; AT171,CT170..S,SE; AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
85926-30020 |
from US $56.86 |
||
|
88630H
|
88630H
88630-32010
Relay Assy, Cooler
[05.1988 - 03.1989] AT170..(4FC,5F)..SG; AT170..4F..SG; CT17#..DX,SG; AT171,CT170..S,SE; AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
88630-32010 |
— | ||
|
88630R
|
88630R
90987-02004 Relay Assy, Starter[05.1988 - 03.1989] AT170..(4FC,5F)..SG; AT170..4F..SG; CT17#..DX,SG; AT171,CT170..S,SE; AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX |
90987-02004 |
from US $28.70 |
||
|
89425
|
89425
89425-12210
Sensor, Exhaust Gas Temperature
[11.1989 - 09.1991] AT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,EFI) |
89425-12210 |
— | ||
| replacement | |||||
|
89425
|
89425
89425-32110
Sensor, Exhaust Gas Temperature
[11.1989 - 09.1991] AT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,EFI) |
89425-32110 |
— | ||
|
89425
|
89425
89425-29415 Sensor, Exhaust Gas Temperature[05.1988 - 11.1989] ET176 |
89425-29415 |
US $281.01 |
||
|
89425
|
89425
89425-32090
Sensor, Exhaust Gas Temperature
[09.1991 - 11.1992] AT170,175,ET176,ST170 |
89425-32090 |
— | ||
| replacement | |||||
|
89425
|
89425
89425-32110
Sensor, Exhaust Gas Temperature
[09.1991 - 11.1992] AT170,175,ET176,ST170 |
89425-32110 |
— | ||
|
89427
|
89427
89427-12090 Switch, Temperature Detect[11.1989 - 11.1992] ET176 |
89427-12090 |
from US $68.49 |
||
|
89428
|
89428
89428-10100
Switch, Temperature Detect, No.2
[05.1988 - 05.1990] ET176 ＡＩＳＡＮ |
89428-10100 |
— | ||
|
89428
|
89428
89428-10110 Switch, Temperature Detect, No.2[05.1988 - 05.1990] ET176 ＮＩＰＰＯＮＤＥＮＳＯ |
89428-10110 |
US $70.32 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[05.1990 - 11.1992] AT17#,ET176,ST170 ENGINE |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[05.1990 - 11.1992] AT17#,ET176,ST170 ENGINE |
89428-32010 |
US $84.91 |
||
|
89453
|
89453
89453-16010 Switch, Throttle Position (For T.c.s.)[05.1988 - 11.1992] ET176 |
89453-16010 |
US $36.11 |
||
| replacement | |||||
|
89453
|
89453
89453-12040
Switch, Throttle Position (For T.c.s.)
[05.1988 - 11.1992] ET176 |
89453-12040 |
— | ||
|
89465
|
89465
89465-10010 Sensor, Oxygen[11.1989 - 11.1992] ET176 |
89465-10010 |
US $136.86 |
||
|
8271122220
|
8271122220
82711-22220 Clamp (For Speedometer Cable) |
82711-22220 |
US $3.93 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.28 |
||
