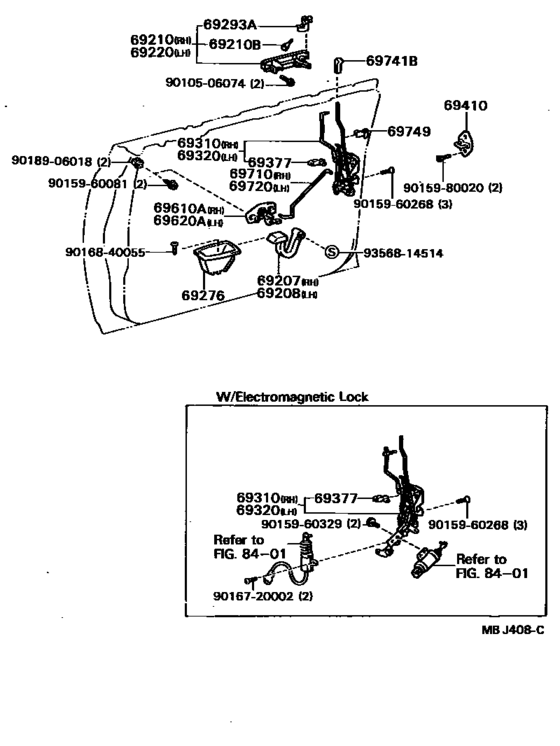

Front Door Lock & Handle ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69271-20090-03 Handle Sub-Assy, Front Door Inside, Rh[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
69271-20090-03 |
US $22.13 |
||
| replacement | |||||
|
69207
|
69207
69271-20090-13
Handle Sub-Assy, Front Door Inside, Rh
[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
69271-20090-13 |
— | ||
|
69207
|
69207
69271-20090-06 Handle Sub-Assy, Front Door Inside, Rh[08.1985 - 08.1987] ST16# BROWN,BROWN,TRIM1#,4# |
69271-20090-06 |
US $22.13 |
||
|
69208
|
69208
69272-20060-03 Handle Sub-Assy, Front Door Inside, Lh[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
69272-20060-03 |
US $22.13 |
||
| replacement | |||||
|
69208
|
69208
69272-20060-13 Handle Sub-Assy, Front Door Inside, Lh[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
69272-20060-13 |
US $22.13 |
||
|
69208
|
69208
69272-20060-06 Handle Sub-Assy, Front Door Inside, Lh[08.1985 - 08.1987] ST16# BROWN,BROWN,TRIM1#,4# |
69272-20060-06 |
US $22.13 |
||
|
69210
|
69210
69210-20120
Handle Assy, Front Door, Outside Rh
[08.1985 - 08.1987] ST16# |
69210-20120 |
— | ||
|
69210B
|
69210B
90541-03021 Cushion(For Front Door Outside Handle)[08.1985 - 08.1987] ST16# |
90541-03021 |
US $4.96 |
||
|
69220
|
69220
69220-20120
Handle Assy, Front Door Outside, Lh
[08.1985 - 08.1987] ST16# |
69220-20120 |
— | ||
|
69276
|
69276
69277-20020-03 Bezel, Front Door Inside Handle[08.1985 - 08.1987] ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
69277-20020-03 |
US $15.87 |
||
|
69276
|
69276
69277-20020-06 Bezel, Front Door Inside Handle[08.1985 - 08.1987] ST16# RH,BROWN,BROWN,TRIM1#,4# |
69277-20020-06 |
US $15.29 |
||
|
69276
|
69276
69278-20020-03 Bezel, Front Door Inside Handle[08.1985 - 08.1987] ST16# LH,GRAY,SHADOW GRAY,TRIM1# |
69278-20020-03 |
US $15.87 |
||
|
69276
|
69276
69278-20020-06 Bezel, Front Door Inside Handle[08.1985 - 08.1987] ST16# LH,BROWN,BROWN,TRIM1#,4# |
69278-20020-06 |
US $15.87 |
||
|
69293A
|
69293A
69293-16010
Snap, Front Door Outside Handle
[08.1985 - 08.1987] ST16# RH |
69293-16010 |
— | ||
|
69293A
|
69293A
69293-16020
Snap, Front Door Outside Handle
[08.1985 - 08.1987] ST16# LH |
69293-16020 |
— | ||
|
69310
|
69310
69310-20260 Lock Assy, Front Door, Rh[05.1986 - 08.1987] ST16#..F,G,S,X W/*EL |
69310-20260 |
US $100.46 |
||
|
69310
|
69310
69310-20290 Lock Assy, Front Door, Rh[08.1985 - 08.1987] ST16#..G,L,S W/O *EL |
69310-20290 |
US $91.73 |
||
|
69320
|
69320
69320-20260 Lock Assy, Front Door, Lh[05.1986 - 08.1987] ST16#..F,G,S,X W/*EL |
69320-20260 |
US $100.46 |
||
|
69320
|
69320
69320-20290 Lock Assy, Front Door, Lh[08.1985 - 08.1987] ST16#..G,L,S W/O *EL |
69320-20290 |
US $91.73 |
||
|
69377
|
69377
69759-20150 Snap, Front Door Lock Control Rod[08.1985 - 12.1985] ST16# LH |
69759-20150 |
US $3.64 |
||
| replacement | |||||
|
69377
|
69377
69759-20200 Snap, Front Door Lock Control Rod[08.1985 - 12.1985] ST16# LH |
69759-20200 |
US $3.04 |
||
|
69377
|
69377
69759-20160 Snap, Front Door Lock Control Rod[08.1985 - 12.1985] ST16# RH |
69759-20160 |
US $3.64 |
||
| replacement | |||||
|
69377
|
69377
69759-20190 Snap, Front Door Lock Control Rod[08.1985 - 12.1985] ST16# RH |
69759-20190 |
from US $2.01 |
||
|
69377
|
69377
69759-20190 Snap, Front Door Lock Control Rod[12.1985 - 08.1987] ST16# RH |
69759-20190 |
from US $2.01 |
||
|
69377
|
69377
69759-20200 Snap, Front Door Lock Control Rod[12.1985 - 08.1987] ST16# LH |
69759-20200 |
US $3.04 |
||
|
69410
|
69410
69410-12050
Plate Assy, Front Door Lock Striker
[08.1985 - 08.1987] ST16# |
69410-12050 |
— | ||
|
69610A
|
69610A
69610-20080 Control Assy, Front Door Lock Remote, Rh[08.1985 - 08.1987] ST16# |
69610-20080 |
US $27.66 |
||
|
69620A
|
69620A
69620-20050 Control Assy, Front Door Lock Remote, Lh[08.1985 - 08.1987] ST16# |
69620-20050 |
US $27.66 |
||
|
69710
|
69710
69711-20090 Link Assy, Front Door Open Control, Rh[08.1985 - 08.1987] ST16# |
69711-20090 |
US $9.17 |
||
|
69720
|
69720
69712-20090 Link, Front Door Lock Remote Control, Lh[08.1985 - 08.1987] ST16# |
69712-20090 |
US $9.17 |
||
|
69741B
|
69741B
69741-20040-03 Knob, Front Door Lock Control[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
69741-20040-03 |
US $5.53 |
||
|
69741B
|
69741B
69741-20040-06 Knob, Front Door Lock Control[08.1985 - 08.1987] ST16# BROWN,BROWN,TRIM1#,4# |
69741-20040-06 |
US $5.53 |
||
|
69749
|
69749
69749-20020
Clamp, No.1(For Luggage Door Lock Control Cable)
[08.1985 - 08.1987] ST16# |
69749-20020 |
— | ||
|
9010506074
|
9010506074
90105-06074
New Genuine Part
|
90105-06074 |
— | ||
| replacement | |||||
|
9010506074
|
9010506074
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.08 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015980020
|
9015980020
90159-80020
SCREW
|
90159-80020 |
— | ||
| replacement | |||||
|
9015980020
|
9015980020
90151-80016 SCREW CROSSRECESS |
90151-80016 |
US $2.08 |
||
|
9016720002
|
9016720002
90167-20002 New Genuine Part |
90167-20002 |
US $1.02 |
||
|
9016840055
|
9016840055
90168-40055 New Genuine Part |
90168-40055 |
US $0.96 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9356814514
|
9356814514
93568-14514 New Genuine Part |
93568-14514 |
US $1.60 |
||
| replacement | |||||
|
9356814514
|
9356814514
93568-54514 New Genuine Part |
93568-54514 |
US $1.76 |
||
