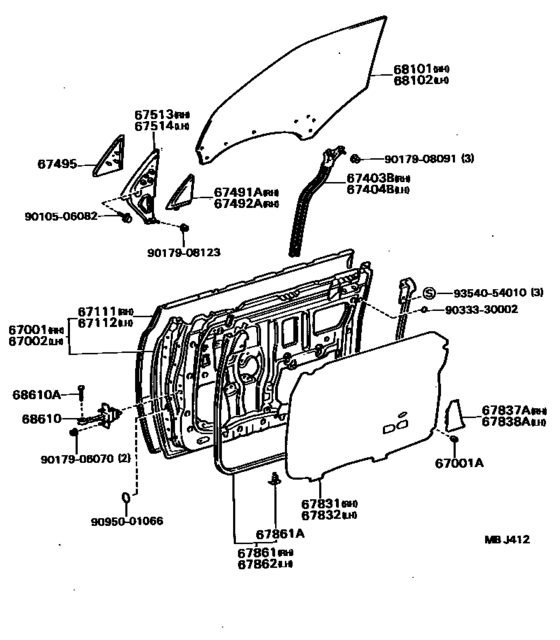

Front Door Panel & Glass ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-20630 Panel Sub-Assy, Front Door, Rh[08.1985 - 08.1987] ST16# |
67001-20630 |
US $752.75 |
||
|
67001A
|
67001A
90541-09006 Cushion, Front Door Panel[08.1985 - 08.1987] ST16# |
90541-09006 |
from US $1.76 |
||
|
67002
|
67002
67002-20600 Panel Sub-Assy, Front Door, Lh[08.1985 - 08.1987] ST16# |
67002-20600 |
US $752.75 |
||
|
67111
|
67111
67111-20150 Panel, Front Door, Outer Rh[08.1985 - 08.1987] ST16# |
67111-20150 |
US $307.22 |
||
|
67112
|
67112
67112-20170 Panel, Front Door, Outer Lh[08.1985 - 08.1987] ST16# |
67112-20170 |
US $307.22 |
||
|
67403B
|
67403B
67403-20030 Guide Sub-Assy, Front Door Window, Rear Rh[08.1985 - 08.1987] ST16# |
67403-20030 |
US $59.84 |
||
|
67404B
|
67404B
67404-20030 Guide Sub-Assy, Front Door Window, Rear Lh[08.1985 - 08.1987] ST16# |
67404-20030 |
US $59.84 |
||
|
67491A
|
67491A
67491-20110 Garnish, Front Door Lower Frame Bracket, Rh[08.1985 - 08.1987] ST16# |
67491-20110 |
US $28.54 |
||
|
67492A
|
67492A
67492-20130 Garnish, Front Door Lower Frame Bracket, Lh[08.1985 - 08.1987] ST16# |
67492-20130 |
US $28.54 |
||
|
67495
|
67495
67495-20060 Cover, Front Door Front Lower Frame, Upper[08.1985 - 08.1987] ST16# RH |
67495-20060 |
US $36.40 |
||
|
67495
|
67495
67496-20030 Cover, Front Door Front Lower Frame, Upper[08.1985 - 08.1987] ST16# LH |
67496-20030 |
US $36.40 |
||
|
67513
|
67513
67513-20040 Bracket, Front Door Mirror, Rh[08.1985 - 08.1987] ST16# |
67513-20040 |
US $66.25 |
||
|
67514
|
67514
67514-20040 Bracket, Front Door Mirror, Lh[08.1985 - 08.1987] ST16# |
67514-20040 |
US $66.25 |
||
|
67831
|
67831
67831-20260 Cover, Front Door Service Hole, Rh[08.1985 - 08.1987] ST16#..G,L,S W/O *PW |
67831-20260 |
US $13.54 |
||
| replacement | |||||
|
67831
|
67831
67831-20270 Cover, Front Door Service Hole, Rh[08.1985 - 08.1987] ST16#..G,L,S W/O *PW |
67831-20270 |
US $13.54 |
||
|
67832
|
67832
67832-20110 Cover, Front Door Service Hole, Lh[08.1985 - 08.1987] ST16# |
67832-20110 |
US $13.54 |
||
| replacement | |||||
|
67832
|
67832
67832-20100 Cover, Front Door Service Hole, Lh[08.1985 - 08.1987] ST16# |
67832-20100 |
US $14.71 |
||
|
67837A
|
67837A
67837-20060 Seal, Front Door Vent, Rh[08.1985 - 08.1987] ST16# |
67837-20060 |
US $22.42 |
||
|
67838A
|
67838A
67838-20050 Seal, Front Door Vent, Lh[08.1985 - 08.1987] ST16# |
67838-20050 |
US $22.42 |
||
|
67861
|
67861
67861-20240 Weatherstrip, Front Door, Rh[08.1985 - 08.1987] ST16# |
67861-20240 |
US $80.08 |
||
|
67861A
|
67861A
67868-30040 Retainer, Roof Side Rail, Rh[08.1985 - 08.1987] ST16# |
67868-30040 |
US $1.76 |
||
|
67862
|
67862
67862-20240 Weatherstrip, Front Door, Lh[08.1985 - 08.1987] ST16# |
67862-20240 |
US $80.08 |
||
|
68101
|
68101
68111-20360 Glass Sub-Assy, Front Door, Rh[08.1985 - 08.1987] ST16# ＊ＴＴ，厚さ＝５．０,*TT,T=5.0 |
68111-20360 |
US $308.67 |
||
|
68102
|
68102
68112-20280 Glass Sub-Assy, Front Door, Lh[08.1985 - 08.1987] ST16# ＊ＴＴ，厚さ＝５．０,*TT,T=5.0 |
68112-20280 |
US $307.22 |
||
|
68610
|
68610
68610-20040 Check Assy, Front Door[08.1985 - 08.1987] ST16# |
68610-20040 |
US $60.13 |
||
|
68610A
|
68610A
68617-90K00 Pin(For Front Door Check)[08.1985 - 08.1987] ST16# |
68617-90K00 |
US $3.20 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908091
|
9017908091
90179-08091
New Genuine Part
|
90179-08091 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.16 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
