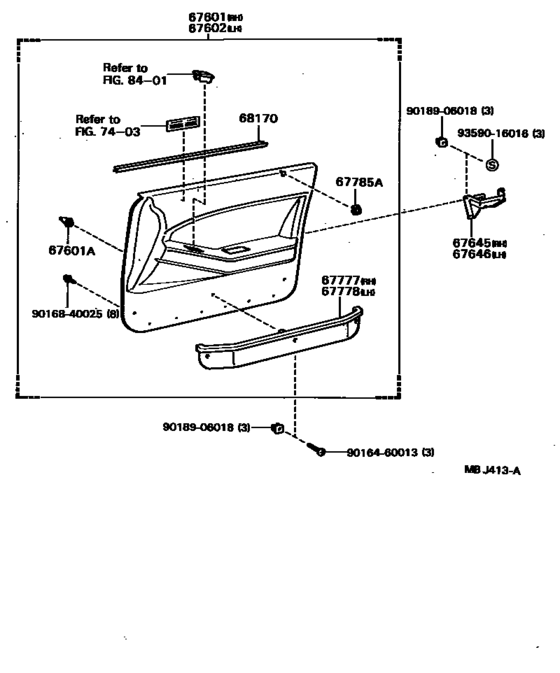

Front Door Panel & Glass ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-2B320-03 Board Sub-Assy, Front Door Trim, Rh[08.1985 - 08.1987] ST160..S GRAY,SHADOW GRAY,TRIM1# |
67610-2B320-03 |
US $428.06 |
||
|
67601
|
67601
67610-2B320-06 Board Sub-Assy, Front Door Trim, Rh[08.1985 - 08.1987] ST160..S BROWN,BROWN,TRIM1#,4# |
67610-2B320-06 |
US $428.06 |
||
|
67601
|
67601
67610-2B330-03 Board Sub-Assy, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,GRAY,SHADOW GRAY,TRIM1# |
67610-2B330-03 |
US $512.51 |
||
|
67601
|
67601
67610-2B330-06 Board Sub-Assy, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,BROWN,BROWN,TRIM1#,4# |
67610-2B330-06 |
US $512.51 |
||
|
67601
|
67601
67610-2B550-03 Board Sub-Assy, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/O *PW,GRAY,SHADOW GRAY,TRIM1# |
67610-2B550-03 |
US $463.01 |
||
|
67601
|
67601
67610-2B550-06 Board Sub-Assy, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/O *PW,BROWN,BROWN,TRIM1#,4# |
67610-2B550-06 |
US $463.01 |
||
|
67601A
|
67601A
67771-12010 Retainer, Door Trim[08.1985 - 08.1987] ST16# |
67771-12010 |
from US $2.57 |
||
|
67602
|
67602
67620-2B460-03 Board Sub-Assy, Front Door Trim, Lh[08.1985 - 08.1987] ST160..S GRAY,SHADOW GRAY,TRIM1# |
67620-2B460-03 |
US $362.54 |
||
|
67602
|
67602
67620-2B460-06 Board Sub-Assy, Front Door Trim, Lh[08.1985 - 08.1987] ST160..S BROWN,BROWN,TRIM1#,4# |
67620-2B460-06 |
US $362.54 |
||
|
67602
|
67602
67620-2B490-03 Board Sub-Assy, Front Door Trim, Lh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,GRAY,SHADOW GRAY,TRIM1# |
67620-2B490-03 |
US $550.37 |
||
|
67602
|
67602
67620-2B490-06 Board Sub-Assy, Front Door Trim, Lh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,BROWN,BROWN,TRIM1#,4# |
67620-2B490-06 |
US $550.37 |
||
|
67602
|
67602
67620-2B840-03 Board Sub-Assy, Front Door Trim, Lh[05.1986 - 08.1987] ST160..S S-TOULING,W/O *PW,GRAY,SHADOW GRAY,TRIM1# |
67620-2B840-03 |
US $400.40 |
||
|
67602
|
67602
67620-2B840-06 Board Sub-Assy, Front Door Trim, Lh[05.1986 - 08.1987] ST160..S S-TOULING,W/O *PW,BROWN,BROWN,TRIM1#,4# |
67620-2B840-06 |
US $400.40 |
||
|
67645
|
67645
67645-20020 Bracket, Front Door Armrest Set, Rh[08.1985 - 08.1987] ST16# |
67645-20020 |
US $24.17 |
||
|
67646
|
67646
67646-20020 Bracket, Front Door Armrest Set, Lh[08.1985 - 08.1987] ST16# |
67646-20020 |
US $24.17 |
||
|
67777
|
67777
67770-20030-03 Pocket, Front Door Trim, Rh[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
67770-20030-03 |
US $85.90 |
||
|
67777
|
67777
67770-20030-06 Pocket, Front Door Trim, Rh[08.1985 - 08.1987] ST16# BROWN,BROWN,TRIM1#,4# |
67770-20030-06 |
US $85.90 |
||
|
67778
|
67778
67770-20030-03 Pocket, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,GRAY,SHADOW GRAY,TRIM1# |
67770-20030-03 |
US $85.90 |
||
|
67778
|
67778
67770-20030-06 Pocket, Front Door Trim, Rh[05.1986 - 08.1987] ST160..S S-TOULING,W/*PW,BROWN,BROWN,TRIM1#,4# |
67770-20030-06 |
US $85.90 |
||
|
67785A
|
67785A
67785-20020-03 Holder, Door Locking Button Collar(For Front Door)[08.1985 - 08.1987] ST16# GRAY,SHADOW GRAY,TRIM1# |
67785-20020-03 |
US $6.84 |
||
|
67785A
|
67785A
67785-20020-06 Holder, Door Locking Button Collar(For Front Door)[08.1985 - 08.1987] ST16# BROWN,BROWN,TRIM1#,4# |
67785-20020-06 |
US $6.84 |
||
|
68170
|
68170
68170-20260 Weatherstrip Assy, Front Door Glass, Inner[08.1985 - 08.1987] ST16# RH |
68170-20260 |
US $44.12 |
||
|
68170
|
68170
68220-20220 Weatherstrip Assy, Front Door Glass, Inner[08.1985 - 08.1987] ST16# LH |
68220-20220 |
US $44.12 |
||
|
9016460013
|
9016460013
90164-60013 New Genuine Part |
90164-60013 |
US $1.46 |
||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.44 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9359016016
|
9359016016
93590-16016 New Genuine Part |
93590-16016 |
US $1.31 |
