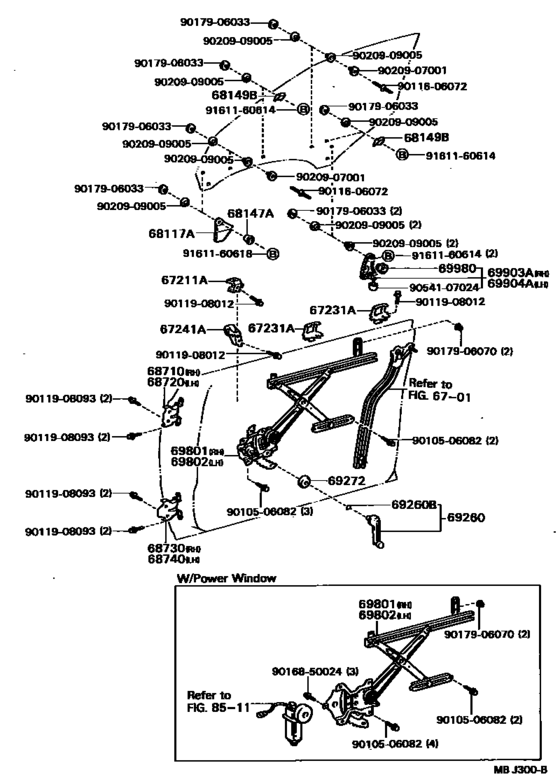

Front Door Window Regulator & Hinge ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67211A
|
67211A
67211-20020 Stop, Front Door Window, Upper[08.1985 - 08.1987] ST16# |
67211-20020 |
US $6.99 |
||
|
67231A
|
67231A
67231-20020
Support, Front Door Trim
[08.1985 - 08.1987] ST16# RH |
67231-20020 |
— | ||
|
67231A
|
67231A
67232-20020
Support, Front Door Trim
[08.1985 - 08.1987] ST16# LH |
67232-20020 |
— | ||
|
67241A
|
67241A
67241-14010 Stabilizer, Door Glass, Inner[08.1985 - 08.1987] ST16# |
67241-14010 |
US $15 |
||
| replacement | |||||
|
67241A
|
67241A
67241-14011 Stabilizer, Door Glass, Inner[08.1985 - 08.1987] ST16# |
67241-14011 |
US $14.71 |
||
|
68117A
|
68117A
68117-20010 Plate, Front Door Glass[08.1985 - 08.1987] ST16# RH |
68117-20010 |
US $12.81 |
||
|
68117A
|
68117A
68118-20010 Plate, Front Door Glass[08.1985 - 08.1987] ST16# LH |
68118-20010 |
US $12.81 |
||
|
68147A
|
68147A
68147-20020 Stop, Front Door Glass, Upper[08.1985 - 08.1987] ST16# |
68147-20020 |
US $6.84 |
||
|
68149B
|
68149B
68149-20010
Stabilizer, Front Door Glass Male
[08.1985 - 08.1987] ST16# |
68149-20010 |
— | ||
|
68710
|
68710
68710-20070 Hinge Assy, Front Door, Upper Rh[08.1985 - 08.1987] ST16# |
68710-20070 |
US $41.93 |
||
|
68720
|
68720
68720-20060 Hinge Assy, Front Door, Upper Lh[08.1985 - 08.1987] ST16# |
68720-20060 |
US $41.93 |
||
|
68730
|
68730
68730-20080
Hinge Assy, Front Door, Lower Rh
[08.1985 - 08.1987] ST16# |
68730-20080 |
— | ||
|
68740
|
68740
68740-20080 Hinge Assy, Front Door, Lower Lh[08.1985 - 08.1987] ST16# |
68740-20080 |
US $41.79 |
||
|
69260
|
69260
69260-22030-05 Handle Assy, Front Door Window Regulator[08.1985 - 08.1987] ST16#..G,L,S BEIGE,BEIGE,TRIM1#,4# |
69260-22030-05 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-22030-23
Handle Assy, Front Door Window Regulator
[08.1985 - 08.1987] ST16#..G,L,S BEIGE,BEIGE,TRIM1#,4# |
69260-22030-23 |
— | ||
|
69260
|
69260
69260-22030-13
Handle Assy, Front Door Window Regulator
[08.1985 - 08.1987] ST16#..G,L,S GRAY,SHADOW GRAY,TRIM1# |
69260-22030-13 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-22030-23
Handle Assy, Front Door Window Regulator
[08.1985 - 08.1987] ST16#..G,L,S GRAY,SHADOW GRAY,TRIM1# |
69260-22030-23 |
— | ||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[08.1985 - 08.1987] ST16#..G,L,S |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1985 - 08.1987] ST16#..G,L,S |
90520-01274 |
from US $1.01 |
||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[08.1985 - 08.1987] ST16#..G,L,S NATURAL WHITE |
69285-22010-08 |
from US $1.85 |
||
|
69801
|
69801
69810-20130 Regulator Sub-Assy, Front Door Window, Rh[08.1985 - 08.1987] ST16#..G,L,S W/O *PW |
69810-20130 |
US $82.99 |
||
|
69802
|
69802
69820-20130 Regulator Sub-Assy, Front Door Window, Lh[08.1985 - 08.1987] ST16#..G,L,S W/O *PW |
69820-20130 |
US $82.99 |
||
|
69903A
|
69903A
69903-20080 Bracket Sub-Assy, Front Door Glass, Rear Rh[08.1985 - 08.1987] ST16# |
69903-20080 |
US $39.60 |
||
|
69904A
|
69904A
69904-20060 Bracket Sub-Assy, Front Door Glass, Rear Lh[08.1985 - 08.1987] ST16# |
69904-20060 |
US $39.60 |
||
|
69980
|
69980
69981-14020 Roller Assy, Front Door Glass Guide[08.1985 - 08.1987] ST16# |
69981-14020 |
US $8.59 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011606072
|
9011606072
90116-06072
New Genuine Part
|
90116-06072 |
— | ||
|
9011908012
|
9011908012
90119-08012 New Genuine Part |
90119-08012 |
US $1.46 |
||
| replacement | |||||
|
9011908012
|
9011908012
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017906033
|
9017906033
90179-06033
New Genuine Part
|
90179-06033 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020907001
|
9020907001
90209-07001 New Genuine Part |
90209-07001 |
US $1.46 |
||
|
9020909005
|
9020909005
90209-09005 New Genuine Part |
90209-09005 |
US $1.12 |
||
|
9054107024
|
9054107024
90541-07024
Cushion, Window Regulator Door Glass Braket, No.1
|
90541-07024 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
