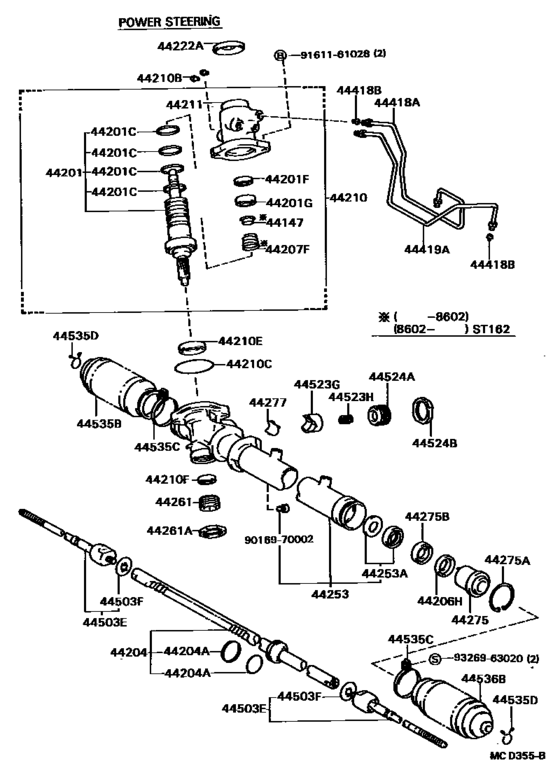

Front Steering Gear & Link ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44147
|
44147
44147-24020
Seat, Spool Valve Spring
[08.1985 - 02.1986] ST16# |
44147-24020 |
— | ||
|
44201
|
44201
44201-20050 Valve Sub-Assy, Power Steering Control[08.1985 - 02.1986] ST16# |
44201-20050 |
US $294.11 |
||
| replacement | |||||
|
44201
|
44201
44201-20180 Valve Sub-Assy, Power Steering Control[08.1985 - 02.1986] ST16# |
44201-20180 |
US $292.66 |
||
|
44201
|
44201
44201-20120 Valve Sub-Assy, Power Steering Control[02.1986 - 06.1986] ST160 |
44201-20120 |
US $294.11 |
||
|
44201C
|
44201C
90562-33002 Ring(For Power Steering Control Valve)[02.1986 - 06.1986] ST160 |
90562-33002 |
US $3.89 |
||
|
44201C
|
44201C
90562-38001
Ring(For Power Steering Control Valve)
[08.1985 - 02.1986] ST16# |
90562-38001 |
— | ||
|
44201F
|
44201F
90311-19006 Seal, Oil(For Power Steering Control Valve)[08.1985 - 08.1987] ST16# |
90311-19006 |
from US $3.04 |
||
|
44201G
|
44201G
90363-19002 Bearing(For Power Steering Control Valve)[08.1985 - 08.1987] ST16# |
90363-19002 |
US $21.67 |
||
|
44204
|
44204
44204-20060 Rack Sub-Assy, Power Steering[08.1985 - 08.1987] ST16# |
44204-20060 |
US $216.94 |
||
|
44204A
|
44204A
90301-33003 Ring(For Rack Steering Piston)[08.1985 - 08.1987] ST16# INNER |
90301-33003 |
US $4.32 |
||
|
44204A
|
44204A
90562-37001 Ring(For Rack Steering Piston)[08.1985 - 08.1987] ST16# OUTER |
90562-37001 |
US $4.37 |
||
| replacement | |||||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[08.1985 - 08.1987] ST16# OUTER |
90562-37004 |
US $3.86 |
||
|
44206H
|
44206H
90560-27007
Spacer, No.2(For Power Steering Cylinder Tube)
[08.1985 - 08.1987] ST16# |
90560-27007 |
— | ||
|
44207F
|
44207F
90502-15001
Spring, Conical(For Power Steering Control Valve)
[08.1985 - 02.1986] ST16# |
90502-15001 |
— | ||
|
44210
|
44210
44210-20060 Valve Assy, Power Steering Control[08.1985 - 02.1986] ST16# |
44210-20060 |
US $563.47 |
||
| replacement | |||||
|
44210
|
44210
44210-20220 Valve Assy, Power Steering Control[08.1985 - 02.1986] ST16# |
44210-20220 |
US $560.56 |
||
|
44210
|
44210
44210-20150 Valve Assy, Power Steering Control[02.1986 - 06.1986] ST160 |
44210-20150 |
US $563.47 |
||
|
44210B
|
44210B
90410-06002 Seat, Union(For Power Steering Control Valve)[08.1985 - 08.1987] ST16# |
90410-06002 |
US $3.52 |
||
|
44210C
|
44210C
96711-24060 Ring, O(For Power Steering Control Valve)[08.1985 - 08.1987] ST16# |
96711-24060 |
from US $2.87 |
||
|
44210E
|
44210E
90310-28001 Seal, Oil(For Power Steering Control Valve)[02.1986 - 06.1986] ST160 |
90310-28001 |
US $2.77 |
||
| replacement | |||||
|
44210E
|
44210E
90310-28003 Seal, Oil(For Power Steering Rack Housing)[02.1986 - 06.1986] ST160 |
90310-28003 |
from US $3.04 |
||
|
44210E
|
44210E
90310-31001 Seal, Oil(For Power Steering Control Valve)[08.1985 - 02.1986] ST16# |
90310-31001 |
US $1.75 |
||
|
44210F
|
44210F
90363-13002 Bearing(For Power Steering Control Valve Lower)[08.1985 - 08.1987] ST16# |
90363-13002 |
from US $21.67 |
||
|
44211
|
44211
44211-20060
Housing, Control Valve
[08.1985 - 02.1986] ST16# |
44211-20060 |
— | ||
|
44211
|
44211
44211-20100 Housing, Control Valve[02.1986 - 06.1986] ST160 |
44211-20100 |
US $132.50 |
||
|
44222A
|
44222A
45222-20020
Cover, Dust(For Power Steering Gear)
[08.1985 - 02.1986] ST16# |
45222-20020 |
— | ||
|
44222A
|
44222A
45222-32010 Cover, Dust(For Power Steering Gear)[02.1986 - 06.1986] ST160 |
45222-32010 |
from US $5.48 |
||
|
44253
|
44253
44203-20070 Housing Sub-Assy, Power Steering Rack[08.1985 - 02.1986] ST16# |
44203-20070 |
US $524.16 |
||
| replacements | |||||
|
44253
|
44253
44203-20071 Housing Sub-Assy, Power Steering Rack[08.1985 - 02.1986] ST16# |
44203-20071 |
US $524.16 |
||
|
44253
|
44253
44275-20041 Stopper, Cylinder End[08.1985 - 02.1986] ST16# |
44275-20041 |
US $19.04 |
||
|
44253
|
44253
44203-20110 Housing Sub-Assy, Power Steering Rack[02.1986 - 06.1986] ST160 |
44203-20110 |
US $524.16 |
||
| replacements | |||||
|
44253
|
44253
44203-20111 Housing Sub-Assy, Power Steering Rack[02.1986 - 06.1986] ST160 |
44203-20111 |
US $524.16 |
||
|
44253
|
44253
44275-20041 Stopper, Cylinder End[02.1986 - 06.1986] ST160 |
44275-20041 |
US $19.04 |
||
|
44253A
|
44253A
90999-99131
Seal, Oil(For Power Steering Rack Housing)
[08.1985 - 08.1987] ST16# |
90999-99131 |
— | ||
|
44261
|
44261
45524-16010 Cap(For Power Steering Pinion)[08.1985 - 08.1987] ST16# |
45524-16010 |
US $9.61 |
||
|
44261A
|
44261A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1985 - 08.1987] ST16# |
90179-36002 |
US $4.89 |
||
|
44275
|
44275
44275-20040 Stopper, Cylinder End[08.1985 - 08.1987] ST16# |
44275-20040 |
US $26.06 |
||
|
44275A
|
44275A
90521-50002 Ring, Hole Snap(For Cylinder End Stopper)[08.1985 - 08.1987] ST16# |
90521-50002 |
US $1.22 |
||
|
44275B
|
44275B
90310-26002
Seal, Oil, No.2(For Power Steering Cylinder Tube)
[08.1985 - 08.1987] ST16# |
90310-26002 |
— | ||
| replacement | |||||
|
44275B
|
44275B
90310-26013 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1985 - 08.1987] ST16# |
90310-26013 |
US $3.04 |
||
|
44277
|
44277
44277-20020
Seat, Rack Guide
[08.1985 - 08.1987] ST16# |
44277-20020 |
— | ||
|
44418A
|
44418A
44418-20060 Tube, Steering Right Turn Pressure[08.1985 - 02.1986] ST16# |
44418-20060 |
US $17.33 |
||
|
44418A
|
44418A
44418-20090 Tube, Steering Right Turn Pressure[02.1986 - 06.1986] ST160 |
44418-20090 |
US $17.33 |
||
|
44418B
|
44418B
90410-04003 Seat, Union(For Power Steering Control Valve)[08.1985 - 08.1987] ST16# RACK HOUSING SIDE |
90410-04003 |
US $2.72 |
||
|
44418B
|
44418B
96390-71200 Seat, Union(For Steering Turn Pressure Tube)[08.1985 - 08.1987] ST16# CONTROL VALVE SIDE |
96390-71200 |
US $1.60 |
||
|
44419A
|
44419A
44419-20050 Tube, Steering Left Turn Pressure[08.1985 - 02.1986] ST16# |
44419-20050 |
US $17.33 |
||
|
44419A
|
44419A
44419-20080 Tube, Steering Left Turn Pressure[02.1986 - 06.1986] ST160 |
44419-20080 |
US $18.78 |
||
|
44503E
|
44503E
45503-29105 End Sub-Assy, Steering Rack(For Power Steering)[08.1985 - 08.1987] ST16# |
45503-29105 |
US $90.27 |
||
| replacement | |||||
|
44503E
|
44503E
45503-39025 End Sub-Assy, Steering Rack[08.1985 - 08.1987] ST16# |
45503-39025 |
from US $96.10 |
||
|
44503F
|
44503F
90214-14002 Washer, Claw(For Power Steering Rack End)[08.1985 - 08.1987] ST16# |
90214-14002 |
from US $1.33 |
||
|
44523G
|
44523G
45523-20020
Guide, Rack(For Power Steering)
[08.1985 - 08.1987] ST16# |
45523-20020 |
— | ||
| replacements | |||||
|
44523G
|
44523G
44277-50011
Seat, Rack Guide
[08.1985 - 08.1987] ST16# |
44277-50011 |
— | ||
|
44523G
|
44523G
45523-50011 Guide, Rack(For Steering Gear)[08.1985 - 08.1987] ST16# |
45523-50011 |
from US $15.20 |
||
|
44523G
|
44523G
45524-20030
Cap, Rack Housing
[08.1985 - 08.1987] ST16# |
45524-20030 |
— | ||
|
44523H
|
44523H
90501-23007 Spring(For Power Steering Rack Guide)[08.1985 - 08.1987] ST16# |
90501-23007 |
from US $1.49 |
||
|
44524A
|
44524A
45524-16010 Cap(For Power Steering Pinion)[08.1985 - 08.1987] ST16# |
45524-16010 |
US $9.61 |
||
|
44524B
|
44524B
90179-36002 Nut(For Power Steering Pinion Cap)[08.1985 - 08.1987] ST16# |
90179-36002 |
US $4.89 |
||
|
44535B
|
44535B
45535-20050 Boot, Steering Rack No.1(For Power Steering)[08.1985 - 08.1987] ST16# |
45535-20050 |
from US $32.22 |
||
|
44535C
|
44535C
90949-01081 Clamp(For Power Steering Rack Boot)[08.1985 - 08.1987] ST16# |
90949-01081 |
US $5.92 |
||
|
44535D
|
44535D
90467-18003 Clip Or Clamp(For Ventilation Hose)[08.1985 - 08.1987] ST16# |
90467-18003 |
from US $1.92 |
||
|
44536B
|
44536B
45535-20050 Boot, Steering Rack No.1(For Power Steering)[08.1985 - 08.1987] ST16# |
45535-20050 |
from US $32.22 |
||
|
9016970002
|
9016970002
90169-70002 New Genuine Part |
90169-70002 |
US $1.60 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
