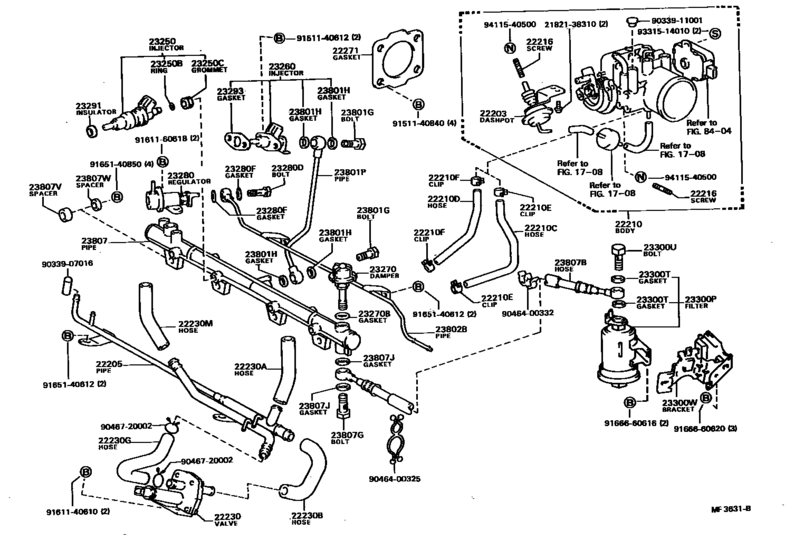

Fuel Injection System ([08.1985 - ] (8508- )1SELU) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22202-74013 Dash Pot Sub-Assy(For Throttle Body)[08.1985 - 08.1987] 1SELU..ST160 |
22202-74013 |
US $90.27 |
||
|
22205
|
22205
22205-63010 Pipe Sub-Assy, Auxiliary Air[08.1985 - 08.1987] 1SELU..ST160 |
22205-63010 |
US $110.66 |
||
|
22210
|
22210
22210-74011 Body Assy, Throttle[08.1985 - 08.1987] 1SELU..ST160 |
22210-74011 |
US $678.50 |
||
|
22210C
|
22210C
16264-74010 Hose, Water By-Pass, No.1[08.1985 - 08.1987] 1SELU..ST160 |
16264-74010 |
US $26.35 |
||
|
22210D
|
22210D
16267-74011 Hose, Water By-Pass, No.2[08.1985 - 08.1987] 1SELU..ST160 |
16267-74011 |
US $15.14 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
96135-51300 |
from US $1.92 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[08.1985 - 08.1987] 1S#..ST160 |
22216-74010 |
— | ||
|
22230
|
22230
22230-63010 Valve Assy, Auxiliary Air[08.1985 - 10.1986] 1SELU..ST160 |
22230-63010 |
US $282.46 |
||
| replacement | |||||
|
22230
|
22230
22230-74010 Valve Assy, Auxiliary Air[08.1985 - 10.1986] 1SELU..ST160 |
22230-74010 |
US $282.46 |
||
|
22230
|
22230
22230-74010 Valve Assy, Auxiliary Air[10.1986 - 08.1987] 1SELU..ST160 |
22230-74010 |
US $282.46 |
||
|
22230A
|
22230A
90445-21007 Hose, Auxiliary Air Valve, No.1[08.1985 - 08.1987] 1SELU..ST160 |
90445-21007 |
US $7.86 |
||
|
22230B
|
22230B
22234-74011
Hose, Auxiliary Air Valve, No.2
[08.1985 - 08.1987] 1SELU..ST160 |
22234-74011 |
— | ||
|
22230G
|
22230G
22236-74010
Hose, Auxiliary Air Valve, No.3
[08.1985 - 08.1987] 1SELU..ST160 |
22236-74010 |
— | ||
|
22230M
|
22230M
22237-74010 Hose, Auxiliary Air Valve, No.4[08.1985 - 08.1987] 1SELU..ST160 |
22237-74010 |
US $15.43 |
||
|
22271
|
22271
22271-74010 Gasket, Throttle Body[08.1985 - 08.1987] 1SELU..ST160 |
22271-74010 |
US $4.95 |
||
| replacement | |||||
|
22271
|
22271
22271-74011 Gasket, Throttle Body[08.1985 - 08.1987] 1SELU..ST160 |
22271-74011 |
US $5.39 |
||
|
23250
|
23250
23209-45011
Injector Assy, Fuel
[08.1985 - 08.1987] 1SELU..ST160 |
23209-45011 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-43010 Injector Assy, FuelFUEL [08.1985 - 08.1987] 1SELU..ST160 |
23209-43010 |
US $260.10 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1985 - 08.1987] 1SELU,3SGELU..ST16# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1985 - 08.1987] 1SELU,3SGELU..ST16# |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-79055
Injector Assy, Cold Start Fuel
[08.1985 - 08.1987] 1S#..ST160 |
23260-79055 |
— | ||
|
23270
|
23270
23207-45010
Damper Assy, Fuel Pressure Pulsation
[08.1985 - 08.1987] 1SELU..ST160 |
23207-45010 |
— | ||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[08.1985 - 08.1987] 1SELU..ST160 |
90430-17002 |
US $3.36 |
||
|
23280
|
23280
23280-74010 Regulator Assy, Fuel Pressure[08.1985 - 08.1987] 1SELU..ST160 |
23280-74010 |
US $132.50 |
||
|
23280D
|
23280D
90401-08003 Bolt, Union[08.1985 - 09.1985] 1SELU..ST160 |
90401-08003 |
US $2.24 |
||
|
23280D
|
23280D
90401-08004 Bolt Union(For Oil Jet)[09.1985 - 04.1987] 1SELU..ST160 |
90401-08004 |
US $3.14 |
||
|
23280F
|
23280F
90430-08005 Gasket[08.1985 - 09.1985] 1SELU..ST160 |
90430-08005 |
US $2.24 |
||
|
23280F
|
23280F
90430-08009
Gasket
[09.1985 - 08.1987] 1SELU..ST160 |
90430-08009 |
— | ||
| replacement | |||||
|
23280F
|
23280F
90430-08014 Gasket(For Oil Filter Outlet Pipe)[09.1985 - 08.1987] 1SELU..ST160 |
90430-08014 |
from US $0.86 |
||
|
23291
|
23291
23291-74010 Insulator, Injector Vibration[08.1985 - 08.1987] 1SELU..ST160 |
23291-74010 |
US $5.97 |
||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
23293-42010 |
US $5.60 |
||
|
23300P
|
23300P
23300-79095 Filter, Fuel(For Efi)[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
23300-79095 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79105 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1985 - 08.1987] 1S#,3SGELU..ST16# |
23300-79105 |
US $104.83 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
90430-12005 |
from US $0.76 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
90401-12097 |
from US $3.08 |
||
|
23300W
|
23300W
23264-74010 Bracket, Fuel Filter[08.1985 - 08.1987] 1S#,3SGELU..ST16# |
23264-74010 |
US $19.95 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[08.1985 - 09.1985] 1SELU,3SGELU..ST16# |
90401-08003 |
US $2.24 |
||
|
23801G
|
23801G
90401-08004 Bolt Union(For Oil Jet)[09.1985 - 04.1987] 1SELU..ST160; 3SGELU..ST162 *53 |
90401-08004 |
US $3.14 |
||
|
23801H
|
23801H
90430-08005 Gasket[08.1985 - 09.1985] 1SELU,3SGELU..ST16# |
90430-08005 |
US $2.24 |
||
|
23801H
|
23801H
90430-08009
Gasket
[09.1985 - 08.1987] 1SELU..ST160; 3SGELU..ST162 *53 |
90430-08009 |
— | ||
| replacement | |||||
|
23801H
|
23801H
90430-08014 Gasket(For Oil Filter Outlet Pipe)[09.1985 - 08.1987] 1SELU..ST160; 3SGELU..ST162 *53 |
90430-08014 |
from US $0.86 |
||
|
23801P
|
23801P
23801-74010
Pipe Sub-Assy, Fuel, No.1
[08.1985 - 08.1987] 1SELU..ST160 |
23801-74010 |
— | ||
|
23802B
|
23802B
23802-74010
Pipe Sub-Assy, Fuel, No.2
[08.1985 - 08.1987] 1SELU..ST160 |
23802-74010 |
— | ||
|
23807
|
23807
23807-74010
Pipe Sub-Assy, Fuel Delivery
[08.1985 - 08.1987] 1SELU..ST160 |
23807-74010 |
— | ||
|
23807B
|
23807B
23271-63050 Hose, Fuel Delivery Pipe[08.1985 - 08.1987] 1SELU..ST160 |
23271-63050 |
US $133.95 |
||
|
23807G
|
23807G
90401-14091 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1985 - 08.1987] 1SELU..ST160 |
90401-14091 |
US $8.39 |
||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[08.1985 - 08.1987] 1SELU..ST160 |
90430-14002 |
US $2.88 |
||
|
23807V
|
23807V
90560-11006 Spacer, No.1(For Delivery Pipe)[08.1985 - 08.1987] 1SELU..ST160 |
90560-11006 |
US $4.37 |
||
|
23807W
|
23807W
90560-08024 Spacer, No.2(For Delivery Pipe)[08.1985 - 08.1987] 1SELU..ST160 |
90560-08024 |
US $4.51 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.56 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9046400325
|
9046400325
90464-00325 New Genuine Part |
90464-00325 |
US $6.99 |
||
|
9046400332
|
9046400332
90464-00332 New Genuine Part |
90464-00332 |
US $3.35 |
||
|
9046720002
|
9046720002
90467-20002 Clip(For Ventilation Tube) |
90467-20002 |
from US $1.21 |
||
|
9151140612
|
9151140612
91511-40612 New Genuine Part |
91511-40612 |
US $2.91 |
||
| replacement | |||||
|
9151140612
|
9151140612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151140840
|
9151140840
91511-40840 Bolt(for Alternator) |
91511-40840 |
US $2.04 |
||
| replacement | |||||
|
9151140840
|
9151140840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140850
|
9165140850
91651-40850 New Genuine Part |
91651-40850 |
US $2.77 |
||
|
9166660616
|
9166660616
91666-60616 New Genuine Part |
91666-60616 |
US $1.92 |
||
|
9166660620
|
9166660620
91666-60620 New Genuine Part |
91666-60620 |
US $1.60 |
||
| replacement | |||||
|
9166660620
|
9166660620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
