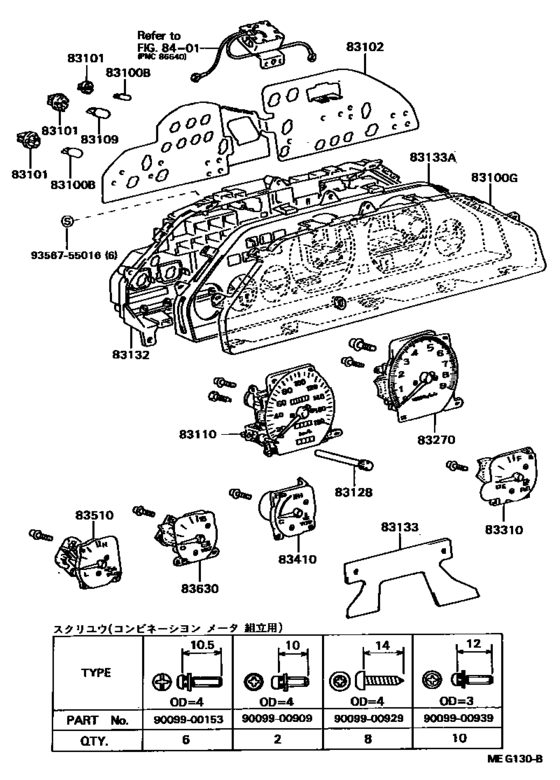

Meter ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1985 - 08.1987] ST16# １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1985 - 08.1987] ST16# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1985 - 08.1987] ST16# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-1B090
Glass, Combination Meter
[08.1985 - 08.1987] ST16# |
83138-1B090 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1985 - 08.1987] ST16# BULB;12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1985 - 08.1987] ST16# BULB;12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-1D650
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1985 - 08.1987] ST160..S,X |
83247-1D650 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-1D690
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1985 - 08.1987] ST160..S,X |
83247-1D690 |
— | ||
|
83109
|
83109
83109-24020 Bulb, Combination Meter, No.1[08.1985 - 08.1987] ST16# １２Ｖ ３．４Ｗ キャップ付き,12V 3.4W,W/GREEN CAP |
83109-24020 |
from US $6.12 |
||
|
83110
|
83110
83110-20830 Speedometer Assy[08.1985 - 08.1987] ST16#..G,S,X |
83110-20830 |
US $467.38 |
||
|
83128
|
83128
83128-14650
Knob, Trip Counter
[08.1985 - 08.1987] ST16#..G,S,X |
83128-14650 |
— | ||
|
83132
|
83132
83132-1D770
Case, Combination Meter
[08.1985 - 08.1987] ST160..S,X; ST162..5F |
83132-1D770 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-1D790
Case, Combination Meter
[08.1985 - 08.1987] ST160..S,X; ST162..5F |
83132-1D790 |
— | ||
|
83133
|
83133
83133-1B510
Plate, Combination Meter, No.1
[08.1985 - 08.1987] ST16# |
83133-1B510 |
— | ||
|
83133A
|
83133A
83133-1B350
Plate, Combination Meter, No.2
[08.1985 - 08.1987] ST160..S,X; ST162..4FC |
83133-1B350 |
— | ||
|
83270
|
83270
83242-14890 Tachometer Assy, Engine[08.1985 - 08.1987] ST160 |
83242-14890 |
US $487.76 |
||
|
83310
|
83310
83243-14690 Gage Assy, Fuel Receiver[08.1985 - 08.1987] ST16# |
83243-14690 |
US $58.68 |
||
|
83410
|
83410
83244-1B090 Gage Assy, Water Temperature Receiver[08.1985 - 08.1987] ST16# |
83244-1B090 |
US $58.68 |
||
|
83510
|
83510
83246-14630 Gauge, Oil Pressure Receiver[08.1985 - 08.1987] ST16#..G,S,X |
83246-14630 |
US $58.68 |
||
|
83630
|
83630
83251-14610 Meter, Voltage[08.1985 - 08.1987] ST16#..G,S,X |
83251-14610 |
US $115.02 |
||
|
9009900153
|
9009900153
90099-00153
New Genuine Part
|
90099-00153 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
