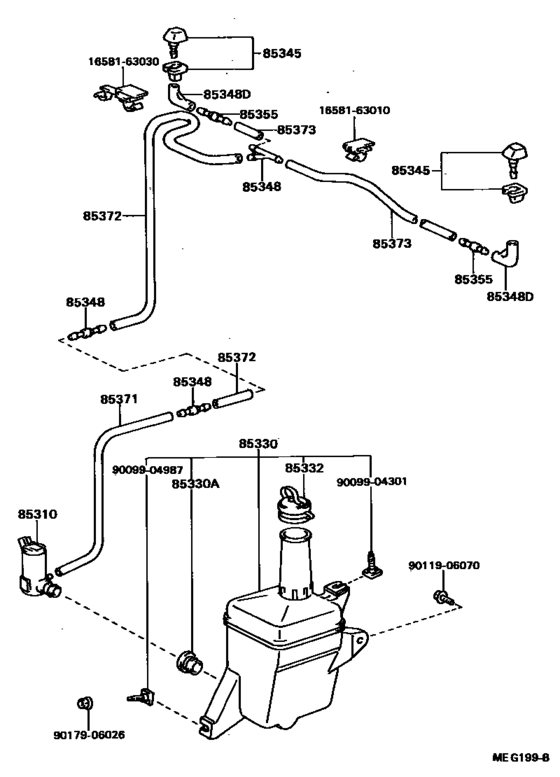

Windshield Washer ([08.1985 - ] (8508- )) Diagram Toyota CARINA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- S
- body
- 4DH
- ENGINE
- 1SELU
- TRANSMISSION
- ATM
- Model
- CARINA ED
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1985 - 08.1987] ST16# |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85331-20340
Jar Assy, Windshield Washer
[08.1985 - 08.1987] ST16# |
85331-20340 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1985 - 08.1987] ST16# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1985 - 08.1987] ST16# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1985 - 08.1987] ST16# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85332-20431
Cap, Windshield Washer Jar
[08.1985 - 08.1987] ST16# |
85332-20431 |
— | ||
|
85345
|
85345
85035-20170
Nozzle Sub-Assy, Washer
[08.1985 - 08.1987] ST16# |
85035-20170 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1985 - 08.1987] ST16# 3WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1985 - 08.1987] ST16# 2WAY |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[05.1987 - 08.1987] ST16# |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[08.1985 - 05.1987] ST16# |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1985 - 05.1987] ST16# |
85355-14481 |
US $0.98 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[08.1985 - 08.1987] ST16# |
85031-12250 |
— | ||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1985 - 08.1987] ST16# ＊Ｈ，Ｌ＝１０４０ |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[08.1985 - 08.1987] ST16# ＊Ｈ，Ｌ＝５８０ |
90099-33299 |
from US $4.37 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1985 - 08.1987] ST16# ＊Ｈ，Ｌ＝４６０ |
90446-06013 |
from US $0.70 |
||
|
1658163010
|
1658163010
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.16 |
||
|
1658163030
|
1658163030
16581-63030
Clamp, Hose(for Water Hose)
|
16581-63030 |
— | ||
|
9009904301
|
9009904301
90099-04301
New Genuine Part
|
90099-04301 |
— | ||
|
9009904987
|
9009904987
90099-04987
New Genuine Part
|
90099-04987 |
— | ||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
