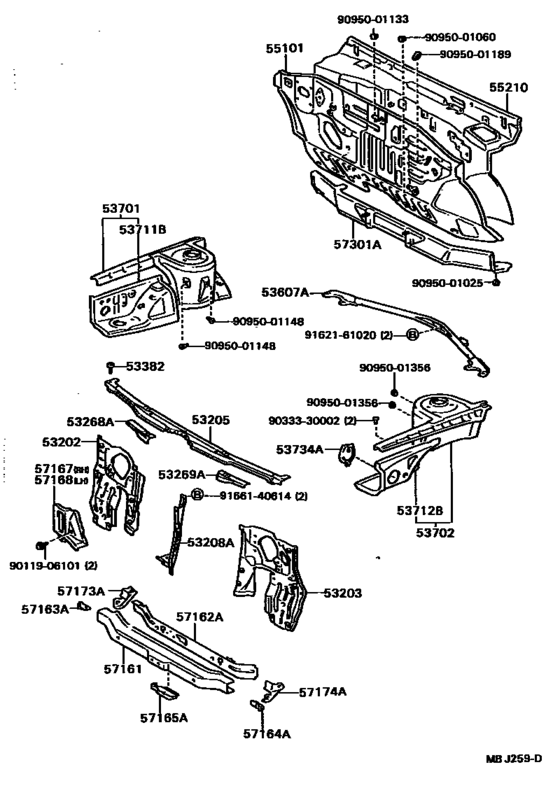

Front Fender Apron & Dash Panel ([08.1985 - ] (8508- )AT160,ST162) Diagram Toyota CARINA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- ST162
- grade
- GTR
- body
- 4D
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1985
- To
- 04.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53211-20170 Support Sub-Assy, Radiator, Rh[08.1985 - 04.1988] AT160,ST162 |
53211-20170 |
US $96.10 |
||
|
53203
|
53203
53203-20190 Support Sub-Assy, Radiator, Lh[08.1985 - 04.1988] AT160,ST162 |
53203-20190 |
US $96.10 |
||
|
53205
|
53205
53216-20110 Support Sub-Assy, Radiator, Upper[08.1985 - 04.1988] AT160,ST162 |
53216-20110 |
US $96.10 |
||
|
53208A
|
53208A
53208-20080 Support Sub-Assy, Hood Lock[08.1985 - 04.1988] AT160,ST162 |
53208-20080 |
US $35.38 |
||
|
53268A
|
53268A
53268-20010 Reinforcement, Radiator Mounting, Rh[05.1984 - 04.1988] AT15#..ATM; AT160,CT150,ST150,162 |
53268-20010 |
US $9.17 |
||
|
53269A
|
53269A
53269-20010 Reinforcement, Radiator Mounting, Lh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
53269-20010 |
US $10.05 |
||
|
53382
|
53382
53382-20020 Bumper, Hood, Front[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
53382-20020 |
US $3.06 |
||
|
53607A
|
53607A
53607-20030 Brace Sub-Assy, Front Suspension, Upper Center[08.1985 - 07.1986] ST162 |
53607-20030 |
US $107.74 |
||
| replacement | |||||
|
53607A
|
53607A
53607-20031 Brace Sub-Assy, Front Suspension, Upper Center[08.1985 - 07.1986] ST162 |
53607-20031 |
US $107.74 |
||
|
53607A
|
53607A
53607-20031 Brace Sub-Assy, Front Suspension, Upper Center[07.1986 - 04.1988] ST162 |
53607-20031 |
US $107.74 |
||
|
53701
|
53701
53701-20580 Apron Sub-Assy, Front Fender, Rh[08.1985 - 04.1988] AT160,ST162 |
53701-20580 |
US $384.38 |
||
|
53702
|
53702
53702-20600 Apron Sub-Assy, Front Fender, Lh[08.1985 - 04.1988] AT160,ST162 |
53702-20600 |
US $384.38 |
||
|
53711B
|
53711B
53711-20160 Apron, Front Fender, Front Rh[08.1985 - 04.1988] AT160,ST162 |
53711-20160 |
US $77.17 |
||
|
53712B
|
53712B
53712-20230 Apron, Front Fender, Front Lh[08.1985 - 04.1988] AT160,ST162 |
53712-20230 |
US $77.17 |
||
|
53734A
|
53734A
53734-20060
Seal, Front Fender Apron To Frame, No.2 Lh
[08.1985 - 04.1988] AT160,ST162 |
53734-20060 |
— | ||
|
55101
|
55101
55101-20721 Panel Sub-Assy, Dash[08.1985 - 04.1988] AT160,ST162..5F |
55101-20721 |
US $380.02 |
||
|
55210
|
55210
55210-20101 Insulator Assy, Dash Panel[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
55210-20101 |
US $206.75 |
||
|
57161
|
57161
57161-20110
Crossmember, Front
[08.1985 - 04.1988] AT160,ST162 |
57161-20110 |
— | ||
|
57162A
|
57162A
57162-20901 Member, Front Cross, Rear[08.1985 - 04.1988] AT160,ST162 |
57162-20901 |
US $81.54 |
||
| replacements | |||||
|
57162A
|
57162A
53228-20030 Bracket, Radiator Mounting, Lower No.1[08.1985 - 04.1988] AT160,ST162 |
53228-20030 |
US $10.05 |
||
|
57162A
|
57162A
57161-20907 Crossmember, Front[08.1985 - 04.1988] AT160,ST162 |
57161-20907 |
US $198.02 |
||
|
57162A
|
57162A
91655-40820
New Genuine Part
[08.1985 - 04.1988] AT160,ST162 |
91655-40820 |
— | ||
|
57163A
|
57163A
57163-20080 Reinforcement, Front Crossmember, No.1 Rh[08.1985 - 04.1988] AT160,ST162 |
57163-20080 |
US $11.36 |
||
|
57164A
|
57164A
57164-20080 Reinforcement, Front Crossmember, No.1 Lh[08.1985 - 04.1988] AT160,ST162 |
57164-20080 |
US $11.36 |
||
|
57165A
|
57165A
57165-20060 Reinforcement, Front Crossmember, No.2[08.1985 - 04.1988] AT160,ST162 |
57165-20060 |
US $16.16 |
||
|
57167
|
57167
57167-20080 Gusset, Front Crossmember, Upper Rh[08.1985 - 04.1988] AT160,ST162 |
57167-20080 |
US $14.56 |
||
|
57168
|
57168
57168-20070 Gusset, Front Crossmember, Upper Lh[08.1985 - 04.1988] AT160,ST162 |
57168-20070 |
US $14.56 |
||
|
57173A
|
57173A
57173-20010 Reinforcement, Front Crossmember, No.3 Rh[08.1985 - 04.1988] AT160,ST162 |
57173-20010 |
US $8.59 |
||
|
57174A
|
57174A
57174-20010 Reinforcement, Front Crossmember, No.3 Lh[08.1985 - 04.1988] AT160,ST162 |
57174-20010 |
US $8.59 |
||
|
57301A
|
57301A
57301-20021 Member Sub-Assy, Steering Gear Box Support[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
57301-20021 |
US $365.46 |
||
|
9011906101
|
9011906101
90119-06101
New Genuine Part
|
90119-06101 |
— | ||
| replacement | |||||
|
9011906101
|
9011906101
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
US $8.39 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001189
|
9095001189
90950-01189 Plug, Hole, No.3(For Dash Panel) |
90950-01189 |
US $3.79 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.60 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
