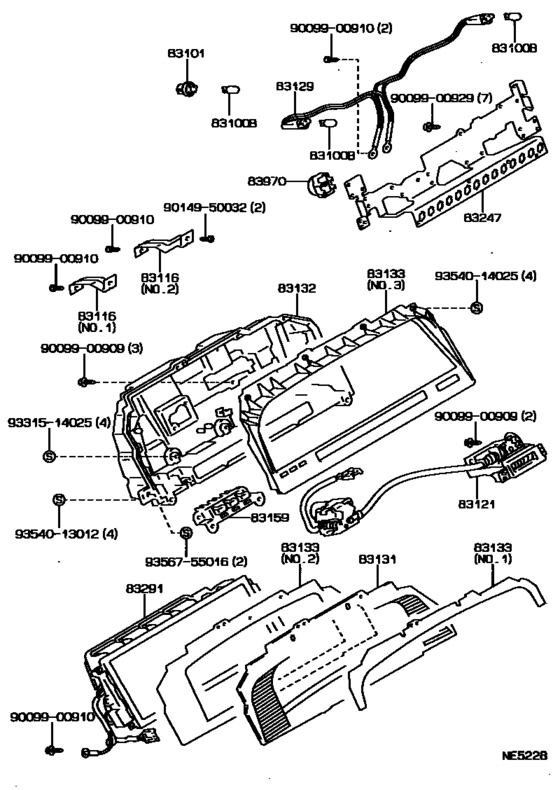

Meter ([05.1988 - ] ﾃﾞｼﾞﾀﾙ ｽﾋﾟｰﾄﾞﾒｰﾀ (8805- )AT171,ST170..GLIM,SE) Diagram Toyota CARINA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- ST170
- grade
- SE
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 05.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
83109-20010
Bulb, Combination Meter, No.1
[05.1988 - 05.1990] ST170..4FC..SE １４Ｖ １．４Ｗ，ブルー キャップ; ST170..5F..SE １４Ｖ １．４Ｗ，ブルー キャップ |
83109-20010 |
— | ||
|
83100B
|
83100B
83109-20030
Bulb, Combination Meter, No.1
[05.1988 - 05.1990] ST170..4FC..SE １２Ｖ １．４Ｗ，ブルー キャップ; ST170..5F..SE １２Ｖ １．４Ｗ，ブルー キャップ |
83109-20030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1988 - 08.1992] ST170..CI １２Ｖ １．２Ｗ ソケット無し; AT171 １２Ｖ １．２Ｗ ソケット無し; AT170,175..SG..EFI １２Ｖ １．２Ｗ ソケット無し; AT170,175,CT170..SE,SGEXT １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1988 - 08.1992] ST170..CI 12V 1.4W BULB; AT171 12V 1.4W BULB; AT170,175..SG..EFI 12V 1.4W BULB; AT170,175,CT170..SE,SGEXT 12V 1.4W BULB |
83101-14040 |
US $2.98 |
||
|
83116
|
83116
83116-20010
Bracket, Speedometer
[05.1988 - 08.1992] AT171..GLIM ＮＯ．１; ST170..4FC..SE ＮＯ．１; ST170..5F..SE ＮＯ．１ |
83116-20010 |
— | ||
|
83116
|
83116
83116-20030
Bracket, Speedometer
[05.1988 - 08.1992] AT171..GLIM ＮＯ．２; ST170..4FC..SE ＮＯ．２; ST170..5F..SE ＮＯ．２ |
83116-20030 |
— | ||
|
83121
|
83121
83121-20230
Counter, Total
[05.1988 - 08.1992] AT171..GLIM; ST170..4FC..SE; ST170..5F..SE |
83121-20230 |
— | ||
|
83129
|
83129
83129-20050
Wire, Meter
[05.1988 - 08.1992] AT171..GLIM; ST170..4FC..SE; ST170..5F..SE |
83129-20050 |
— | ||
|
83131
|
83131
83131-2B730
Dial, Meter, No.1
[05.1988 - 08.1992] AT171..GLIM; ST170..4FC..SE; ST170..5F..SE |
83131-2B730 |
— | ||
|
83132
|
83132
83132-2H250
Case, Combination Meter
[05.1988 - 05.1990] AT171,ST170..5F..(GLIM,SE) ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83132-2H250 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2H270
Case, Combination Meter
[05.1988 - 05.1990] AT171,ST170..5F..(GLIM,SE) ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83132-2H270 |
— | ||
|
83132
|
83132
83132-2H330
Case, Combination Meter
[05.1988 - 11.1992] AT17#,CT170,ST170..MTM..(GLIM,S,SE,SGEXT,SX) |
83132-2H330 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2H350
Case, Combination Meter
[05.1988 - 11.1992] AT17#,CT170,ST170..MTM..(GLIM,S,SE,SGEXT,SX) |
83132-2H350 |
— | ||
|
83133
|
83133
83133-20330
Plate, Combination Meter, No.1
[05.1988 - 08.1992] AT171..GLIM ＮＯ．１; ST170..4FC..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．１; ST170..5F..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．１ |
83133-20330 |
— | ||
|
83133
|
83133
83133-20350
Plate, Combination Meter, No.1
[05.1988 - 08.1992] AT171..GLIM ＮＯ．２; ST170..4FC..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．２; ST170..5F..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．２ |
83133-20350 |
— | ||
|
83133
|
83133
83133-20370
Plate, Combination Meter, No.1
[05.1988 - 08.1992] AT171..GLIM ＮＯ．３; ST170..4FC..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．３; ST170..5F..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ,ＮＯ．３ |
83133-20370 |
— | ||
|
83133
|
83133
83133-20430
Plate, Combination Meter, No.1
[05.1988 - 11.1992] AT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX |
83133-20430 |
— | ||
|
83159
|
83159
83159-20010 Switch, Meter, No.1[05.1988 - 08.1992] AT171..GLIM; ST170..4FC..SE; ST170..5F..SE |
83159-20010 |
US $141.23 |
||
|
83247
|
83247
83247-2B250
Plate, Meter Circuit
[05.1988 - 08.1988] ST170..5F..SE SE ｴｸｽﾄﾗ,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83247-2B250 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B270
Plate, Meter Circuit
[05.1988 - 08.1988] ST170..5F..SE SE ｴｸｽﾄﾗ,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83247-2B270 |
— | ||
|
83247
|
83247
83247-2B450
Plate, Meter Circuit
[05.1988 - 11.1992] AT170,171,ST170..MTM..(S,SE,SGEXT,SX)..(CI,EFI,EFIS) |
83247-2B450 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B590
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1988 - 11.1992] AT170,171,ST170..MTM..(S,SE,SGEXT,SX)..(CI,EFI,EFIS) |
83247-2B590 |
— | ||
|
83247
|
83247
83247-2B490
Plate, Meter Circuit
[05.1988 - 08.1992] ST170..5F..SE SE ｴｸｽﾄﾗ |
83247-2B490 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B590
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1988 - 08.1992] ST170..5F..SE SE ｴｸｽﾄﾗ |
83247-2B590 |
— | ||
|
83247
|
83247
83247-2B530
Plate, Meter Circuit
[08.1988 - 05.1990] ST170..5F..SE SG ｴｸｽﾄﾗ & ｱﾘ(*66) |
83247-2B530 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B590
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1988 - 05.1990] ST170..5F..SE SG ｴｸｽﾄﾗ & ｱﾘ(*66) |
83247-2B590 |
— | ||
|
83247
|
83247
83247-2B850
Plate, Meter Circuit
[05.1988 - 08.1992] ST170..5F..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83247-2B850 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B270
Plate, Meter Circuit
[05.1988 - 08.1992] ST170..5F..SE ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83247-2B270 |
— | ||
|
83247
|
83247
83247-2B870
Plate, Meter Circuit
[08.1988 - 05.1990] AT171,ST170..5F..(S,SE) ｱﾘ(*66) |
83247-2B870 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-2B590
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1988 - 05.1990] AT171,ST170..5F..(S,SE) ｱﾘ(*66) |
83247-2B590 |
— | ||
|
83291
|
83291
83291-20200 Computer, Combination Meter[05.1988 - 09.1988] ST170..5F..SE |
83291-20200 |
US $1,994.72 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.28 |
||
|
9331514025
|
9331514025
93315-14025 New Genuine Part |
93315-14025 |
US $1.16 |
||
|
9354013012
|
9354013012
93540-13012 SCREWTAPPING |
93540-13012 |
US $1.12 |
||
|
9354014025
|
9354014025
93540-14025 New Genuine Part |
93540-14025 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
