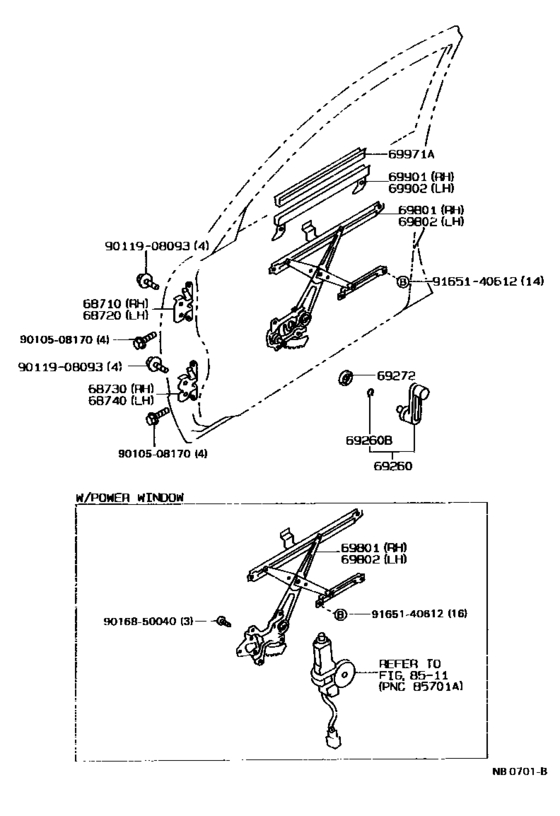

Front Door Window Regulator & Hinge ([05.1988 - ] (8805- )) Diagram Toyota CARINA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 05.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-20060
Hinge Assy, Front Door, Upper Rh
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
68710-20060 |
— | ||
|
68720
|
68720
68720-20050 Hinge Assy, Front Door, Upper Lh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
68720-20050 |
US $43.61 |
||
|
68730
|
68730
68730-16010
Hinge Assy, Front Door, Lower Rh
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
68730-16010 |
— | ||
|
68740
|
68740
68740-16010 Hinge Assy, Front Door, Lower Lh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
68740-16010 |
US $40.91 |
||
|
69260
|
69260
69260-14020-33 Handle Assy, Front Door Window Regulator[05.1988 - 05.1990] ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV GRAY,TRIM1# |
69260-14020-33 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-14020-01
Handle Assy, Front Door Window Regulator
[05.1988 - 05.1990] ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV GRAY,TRIM1# |
69260-14020-01 |
— | ||
|
69260
|
69260
69260-14020-54 Handle Assy, Front Door Window Regulator[05.1988 - 05.1990] ST170..SGEXT;AT17#,CT170..S,SG DARK BLUE,TRIM8# |
69260-14020-54 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-22030-14
Handle Assy, Front Door Window Regulator
[05.1988 - 05.1990] ST170..SGEXT;AT17#,CT170..S,SG DARK BLUE,TRIM8# |
69260-22030-14 |
— | ||
|
69260
|
69260
69260-14020-58 Handle Assy, Front Door Window Regulator[05.1988 - 05.1990] AT17#,CT170..S,SG,SV;CT176,ET176,ST170..DX,SG,SGEXT,SX SABLE,TRIM4# |
69260-14020-58 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-14020-01
Handle Assy, Front Door Window Regulator
[05.1988 - 05.1990] AT17#,CT170..S,SG,SV;CT176,ET176,ST170..DX,SG,SGEXT,SX SABLE,TRIM4# |
69260-14020-01 |
— | ||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[05.1988 - 11.1992] ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1988 - 11.1992] ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
90520-01274 |
from US $1.01 |
||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[05.1988 - 05.1990] AT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX) NATURAL WHITE,TRIM1#,4#; AT170..DX;ET176..STD NATURAL WHITE,TRIM1#; ST170..SGEXT;AT17#,CT170..S,SG NATURAL WHITE,TRIM1#,4#,8# |
69285-22010-08 |
from US $1.85 |
||
|
69801
|
69801
69801-20150
Regulator Sub-Assy, Front Door Window, Rh
[05.1988 - 05.1990] AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
69801-20150 |
— | ||
|
69801
|
69801
69810-20170
Regulator Sub-Assy, Front Door Window, Rh
[05.1988 - 11.1992] ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
69810-20170 |
— | ||
|
69802
|
69802
69802-20150
Regulator Sub-Assy, Front Door Window, Lh
[05.1988 - 05.1990] AT170,171,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
69802-20150 |
— | ||
|
69802
|
69802
69820-20170
Regulator Sub-Assy, Front Door Window, Lh
[05.1988 - 11.1992] ST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX |
69820-20170 |
— | ||
|
69901
|
69901
69901-20130
Channel Sub-Assy, Front Door Glass, Rh
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69901-20130 |
— | ||
|
69902
|
69902
69902-20060
Channel Sub-Assy, Front Door Glass, Lh
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69902-20060 |
— | ||
|
69971A
|
69971A
69971-20010
Weatherstrip, Front Door Glass Channel
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69971-20010 |
— | ||
| replacement | |||||
|
69971A
|
69971A
69971-12090 Filler, Front Door Glass Channel[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69971-12090 |
US $6.40 |
||
|
9010508170
|
9010508170
90105-08170 New Genuine Part |
90105-08170 |
US $1.89 |
||
| replacement | |||||
|
9010508170
|
9010508170
90105-08031 Bolt |
90105-08031 |
US $1.76 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
