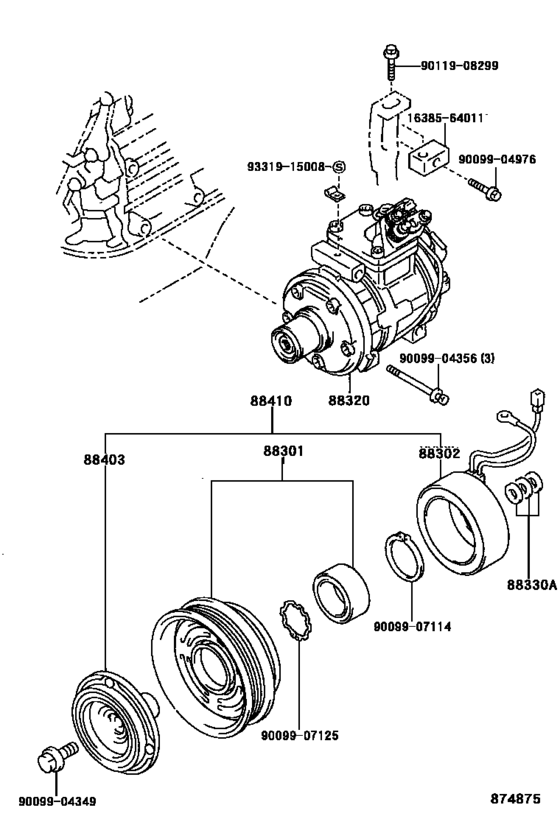

Heating & Air Conditioning - Compressor ([05.1988 - ] (8805- )) Diagram Toyota CARINA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 05.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-20140
Rotor Sub-Assy, Magnet Clutch
[05.1988 - 05.1990] ST170 |
88412-20140 |
— | ||
|
88302
|
88302
88411-20160
Stator Sub-Assy, Magnet Clutch
[05.1988 - 05.1990] ET176,ST170 |
88411-20160 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-20230
Stator Sub-Assy, Magnet Clutch
[05.1988 - 05.1990] ET176,ST170 |
88411-20230 |
— | ||
|
88320
|
88320
88320-20640
Compressor Assy, Cooler
[05.1988 - 01.1989] ST170 |
88320-20640 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-20641
Compressor Assy, Cooler
[05.1988 - 01.1989] ST170 |
88320-20641 |
— | ||
|
88320
|
88320
88320-60310
Compressor Assy, Cooler
[01.1989 - 04.1989] ST170 |
88320-60310 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[05.1988 - 11.1992] AT17#,ET176,ST170; CT170..SE |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-20290 Clutch Assy, Magnet[05.1988 - 01.1989] ST170 |
88410-20290 |
US $563.47 |
||
| replacement | |||||
|
88410
|
88410
88410-20470 Clutch Assy, Magnet[05.1988 - 01.1989] ST170 |
88410-20470 |
US $556.19 |
||
|
88410
|
88410
88410-20490 Clutch Assy, Magnet[01.1989 - 04.1989] ST170 |
88410-20490 |
US $563.47 |
||
|
1638564011
|
1638564011
16385-64011 Slider, Fan Belt Adjusting |
16385-64011 |
US $11.39 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009904976
|
9009904976
90099-04976
New Genuine Part
|
90099-04976 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9011908299
|
9011908299
90119-08299 New Genuine Part |
90119-08299 |
US $1.43 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
