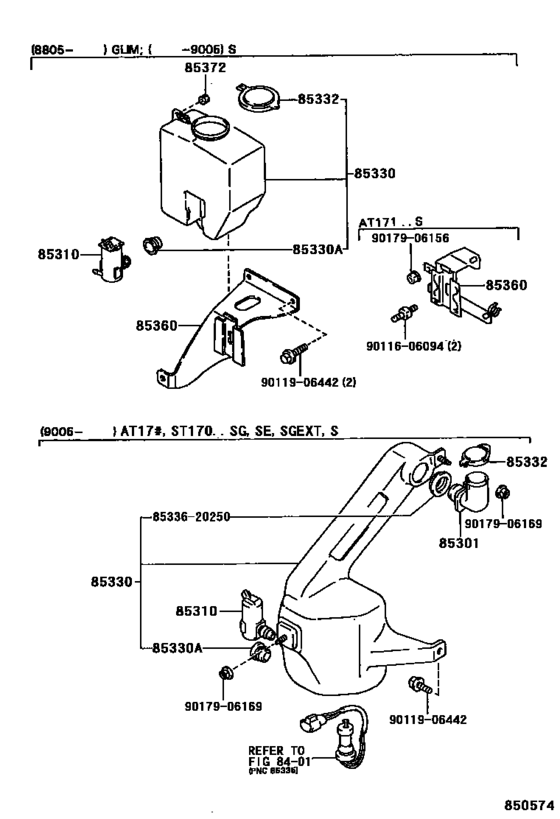

Windshield Washer ([05.1988 - ] (8805- )) Diagram Toyota CARINA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 05.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85331-20630
Jar Assy, Windshield Washer
[05.1988 - 11.1988] CT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV |
85331-20630 |
— | ||
| replacement | |||||
|
85330
|
85330
85331-20631
Jar Assy, Windshield Washer
[05.1988 - 11.1988] CT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV |
85331-20631 |
— | ||
|
85330
|
85330
85331-20631
Jar Assy, Windshield Washer
[11.1988 - 11.1992] CT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV |
85331-20631 |
— | ||
|
85330
|
85330
85331-20640
Jar Assy, Windshield Washer
[05.1988 - 08.1988] AT17#,CT170,ST170..SED ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ; AT170,CT176,ET176..(VAN,WG)..(DX,STD,SV) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(*RW) |
85331-20640 |
— | ||
| replacement | |||||
|
85330
|
85330
85331-20641
Jar Assy, Windshield Washer
[05.1988 - 08.1988] AT17#,CT170,ST170..SED ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ; AT170,CT176,ET176..(VAN,WG)..(DX,STD,SV) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(*RW) |
85331-20641 |
— | ||
|
85330
|
85330
85331-20641
Jar Assy, Windshield Washer
[11.1988 - 11.1992] CT176,ET176,ST170..SG,SX; AT17#,CT170,ST170..SED ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85331-20641 |
— | ||
|
85332
|
85332
85332-32161
Cap Assy, Windshield Washer
[11.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85332-32161 |
— | ||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1988 - 05.1990] CT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV Ｌ＝１４５０ |
90099-33080 |
from US $5.95 |
||
|
8533620250
|
8533620250
85336-20250
Switch Assy, Reserve Tank Level Warning
|
85336-20250 |
— | ||
|
9011606094
|
9011606094
90116-06094 New Genuine Part |
90116-06094 |
US $1.89 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $1.05 |
||
