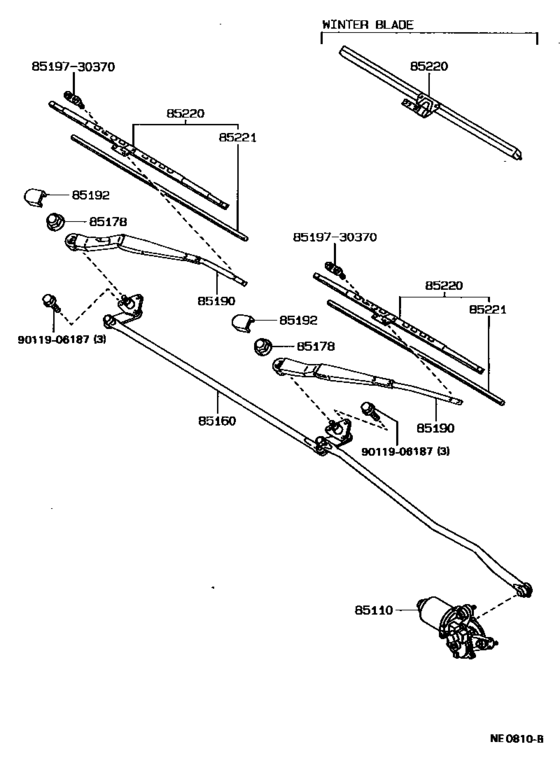

Windshield Wiper ([05.1988 - ] (8805- )) Diagram Toyota CARINA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1988
- To
- 05.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-20480 Motor Assy, Windshield Wiper[05.1988 - 03.1989] AT17#,CT17#,ET176,ST170 |
85110-20480 |
US $366.91 |
||
| replacement | |||||
|
85110
|
85110
85110-20510 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1988 - 03.1989] AT17#,CT17#,ET176,ST170 |
85110-20510 |
US $451.36 |
||
|
85110
|
85110
85110-20481 Motor Assy, Windshield Wiper[03.1989 - 01.1991] AT17#,CT17#,ET176,ST170 |
85110-20481 |
US $349.44 |
||
| replacement | |||||
|
85110
|
85110
85110-20510 Motor Assy, Windshield WiperWINDSHIELD WIPER [03.1989 - 01.1991] AT17#,CT17#,ET176,ST170 |
85110-20510 |
US $451.36 |
||
|
85110
|
85110
85110-20490 Motor Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-20490 |
US $368.37 |
||
| replacement | |||||
|
85110
|
85110
85110-20510 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
85110-20510 |
US $451.36 |
||
|
85160
|
85160
85150-20640 Link Assy, Windshield Wiper[03.1990 - 01.1991] AT17#,CT17#,ET176,ST170 |
85150-20640 |
US $152.88 |
||
| replacement | |||||
|
85160
|
85160
85150-20701
Link Assy, Windshield Wiper
[03.1990 - 01.1991] AT17#,CT17#,ET176,ST170 |
85150-20701 |
— | ||
|
85160
|
85160
85160-20350 Link Assy, Windshield Wiper[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 |
85160-20350 |
US $142.69 |
||
| replacement | |||||
|
85160
|
85160
85150-20701
Link Assy, Windshield Wiper
[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 |
85150-20701 |
— | ||
|
85178
|
85178
90179-08113 Nut (For Front Wiper Arm Setting)[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
90179-08113 |
from US $1.92 |
||
|
85190
|
85190
85190-20610 Arm Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85190-20610 |
US $60.13 |
||
| replacement | |||||
|
85190
|
85190
85190-20611 Arm Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85190-20611 |
US $59.55 |
||
|
85190
|
85190
85210-20210 Arm Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85210-20210 |
US $60.13 |
||
| replacement | |||||
|
85190
|
85190
85210-20211
Arm Assy, Windshield Wiper
[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85210-20211 |
— | ||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85192-12800 |
from US $2.15 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85292-12020 |
from US $1.52 |
||
|
85220
|
85220
85220-16580 Blade Assy, Windshield Wiper[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
85220-16580 |
US $55.33 |
||
| replacement | |||||
|
85220
|
85220
85291-16010 Blade Assy, Windshield Wiper[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
85291-16010 |
US $57.22 |
||
|
85220
|
85220
85220-16750
Blade Assy, Windshield Wiper
[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85220-16750 |
— | ||
| replacement | |||||
|
85220
|
85220
85222-12700 Blade Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85222-12700 |
US $24.98 |
||
|
85220
|
85220
85220-32550 Blade Assy, Windshield Wiper[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
85220-32550 |
US $74.26 |
||
| replacement | |||||
|
85220
|
85220
85291-32030
Blade Assy, Windshield Wiper
[05.1988 - 03.1990] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
85291-32030 |
— | ||
|
85220
|
85220
85220-32690 Blade Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85220-32690 |
US $44.26 |
||
| replacement | |||||
|
85220
|
85220
85212-12290 Blade Assy, Windshield Wiper[05.1988 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85212-12290 |
US $30.23 |
||
|
85220
|
85220
85291-16010 Blade Assy, Windshield Wiper[03.1990 - 11.1992] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
85291-16010 |
US $57.22 |
||
|
85220
|
85220
85291-32030
Blade Assy, Windshield Wiper
[03.1990 - 11.1992] AT17#,CT17#,ET176,ST170 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
85291-32030 |
— | ||
|
85221
|
85221
85213-17040 Blade, Windshield Wiper[03.1990 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85213-17040 |
US $10.92 |
||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[03.1990 - 05.1990] AT17#,CT17#,ET176,ST170 右側 |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-12200
Blade, Windshield Wiper
[11.1989 - 03.1990] AT17#,CT17#,ET176,ST170 右側 |
85221-12200 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[11.1989 - 03.1990] AT17#,CT17#,ET176,ST170 右側 |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-12240
Blade, Windshield Wiper
[11.1989 - 03.1990] AT17#,CT17#,ET176,ST170 左側 |
85221-12240 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[11.1989 - 03.1990] AT17#,CT17#,ET176,ST170 左側 |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-20130
Blade, Windshield Wiper
[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 右側 |
85221-20130 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 右側 |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-20140
Blade, Windshield Wiper
[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 左側 |
85221-20140 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[05.1988 - 11.1989] AT17#,CT17#,ET176,ST170 左側 |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85223-22700
Blade, Windshield Wiper
[03.1990 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85223-22700 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[03.1990 - 05.1990] AT17#,CT17#,ET176,ST170 左側 |
85214-24H90 |
from US $12.59 |
||
|
8519730370
|
8519730370
85197-30370 New Genuine Part |
85197-30370 |
US $4.48 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.21 |
||
