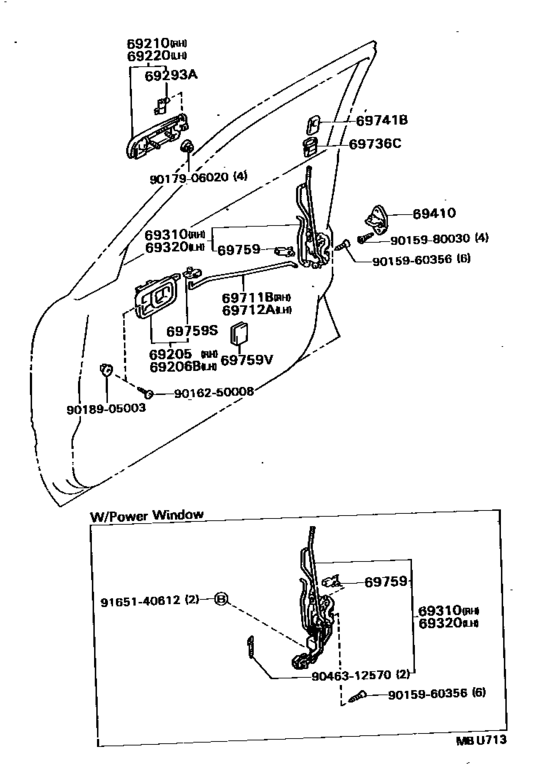

Front Door Lock & Handle ([05.1990 - ] (9005- )) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 05.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-20040-03 Handle Sub-Assy, Front Door Inside, Rh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69205-20040-03 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20040-B1 Handle Sub-Assy, Front Door Inside, Rh (GRAY)[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69205-20040-B1 |
from US $19.15 |
||
|
69205
|
69205
69205-20040-06 Handle Sub-Assy, Front Door Inside, Rh[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69205-20040-06 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20040-B1 Handle Sub-Assy, Front Door Inside, Rh (GRAY)[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69205-20040-B1 |
from US $19.15 |
||
|
69205
|
69205
69205-20040-14 Handle Sub-Assy, Front Door Inside, Rh[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69205-20040-14 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20040-B1 Handle Sub-Assy, Front Door Inside, Rh (GRAY)[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69205-20040-B1 |
from US $19.15 |
||
|
69206B
|
69206B
69206-20040-03 Handle Sub-Assy, Front Door Inside, Lh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69206-20040-03 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20040-B1 Handle Sub-Assy, Front Door Inside, Lh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69206-20040-B1 |
from US $15.67 |
||
|
69206B
|
69206B
69206-20040-06 Handle Sub-Assy, Front Door Inside, Lh[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69206-20040-06 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20040-B1 Handle Sub-Assy, Front Door Inside, Lh[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69206-20040-B1 |
from US $15.67 |
||
|
69206B
|
69206B
69206-20040-14 Handle Sub-Assy, Front Door Inside, Lh[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69206-20040-14 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20040-B1 Handle Sub-Assy, Front Door Inside, Lh[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69206-20040-B1 |
from US $15.67 |
||
|
69210
|
69210
69210-20250 Handle Assy, Front Door, Outside Rh[05.1990 - 11.1992] AT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX |
69210-20250 |
US $90.27 |
||
|
69220
|
69220
69220-20250 Handle Assy, Front Door Outside, Lh[05.1990 - 11.1992] AT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX |
69220-20250 |
US $90.27 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 右側 |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-20391 Lock Assy, Front Door, Rh[05.1990 - 08.1992] AT17#,CT170,ST170..GLIM,SE,SGEXT |
69030-20391 |
US $224.22 |
||
|
69320
|
69320
69040-20390 Lock Assy, Front Door, Lh[05.1990 - 08.1992] AT170,175,ST170..SGEXT |
69040-20390 |
US $202.38 |
||
|
69320
|
69320
69040-20400 Lock Assy, Front Door, Lh[10.1990 -] AT170,ST170..(4FC,5F)..SGEXT ﾏｲﾛ-ﾄﾞ,ｱﾘ(ｼﾔｿｸｶﾝﾉｳｵ-ﾄ) |
69040-20400 |
US $202.38 |
||
|
69410
|
69410
69410-20080
Plate Assy, Front Door Lock Striker
[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69410-20080 |
— | ||
|
69711B
|
69711B
69711-20130 Link, Front Door Lock Remote Control, Rh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69711-20130 |
US $9.03 |
||
|
69712A
|
69712A
69712-20130 Link, Front Door Lock Remote Control, Lh[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69712-20130 |
US $9.03 |
||
|
69736C
|
69736C
69736-12030
Guide, Front Door Lock Link
[05.1988 - 11.1992] CT176,ET176..SG;AT17#,CT170,ST170 |
69736-12030 |
— | ||
|
69741B
|
69741B
69741-90K00-36 Knob, Front Door Lock Control[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69741-90K00-36 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-12040-B1 Knob, Front Door Lock Control (GRAY)[05.1990 - 11.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT,SX SABLE,TRIM4# |
69741-12040-B1 |
from US $5.64 |
||
|
69741B
|
69741B
69741-90K00-43 Knob, Front Door Lock Control[05.1990 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69741-90K00-43 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-90K00-C0 Knob, Front Door Lock Control[05.1990 - 11.1992] AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
69741-90K00-C0 |
US $3.52 |
||
|
69741B
|
69741B
69741-90K00-54 Knob, Front Door Lock Control[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69741-90K00-54 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-12040-B1 Knob, Front Door Lock Control (GRAY)[05.1990 - 08.1992] AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
69741-12040-B1 |
from US $5.64 |
||
|
69759
|
69759
69759-24080 Snap, Front Door Lock Control Rod[05.1990 - 11.1992] AT17#,CT17#,ET176,ST170 YELLOW |
69759-24080 |
from US $2.50 |
||
|
69759
|
69759
69759-24090 Snap, Front Door Lock Control Rod[05.1990 - 11.1992] AT17#,CT17#,ET176,ST170 BROWN |
69759-24090 |
US $2.88 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 左側 |
69759-14050 |
from US $2.24 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 右側 |
69759-24070 |
US $2.88 |
||
|
69759V
|
69759V
69759-12011
Silencer, Rear Door Lock Link
[08.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
69759-12011 |
— | ||
|
9015960356
|
9015960356
90159-60356 New Genuine Part |
90159-60356 |
US $1.92 |
||
|
9015980030
|
9015980030
90159-80030 New Genuine Part |
90159-80030 |
US $1.31 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
US $1.12 |
||
|
9017906020
|
9017906020
90179-06020 New Genuine Part |
90179-06020 |
US $2.48 |
||
| replacement | |||||
|
9017906020
|
9017906020
90179-06012 New Genuine Part |
90179-06012 |
US $2.48 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
