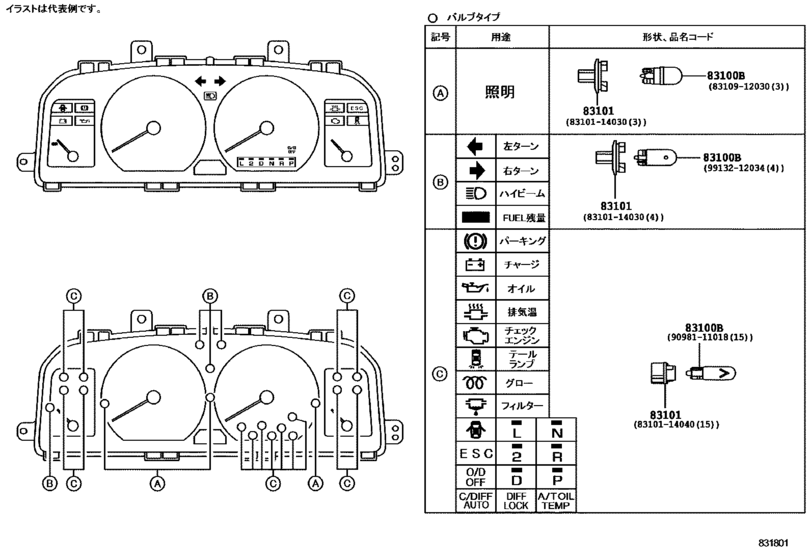

Meter ([05.1988 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞ)---ｱﾘ(ﾀｺﾒｰﾀ) (8805-9005)AT170..SG ; (8805- )GLIM,S,SE,SGEX T,SX) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 05.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1990 - 11.1992] ST170..4FC １２Ｖ １．２Ｗ ソケット無し,ｲﾗｽﾄｻﾝｼﾖｳ |
90981-11018 |
from US $0.96 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1990 - 11.1992] ST170 １２Ｖ ３．４Ｗ,ｲﾗｽﾄｻﾝｼﾖｳ |
99132-12034 |
from US $0.68 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1990 - 11.1992] ST170 ｲﾗｽﾄｻﾝｼﾖｳ,12V 3.4W BULB |
83101-14030 |
from US $1.40 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1990 - 11.1992] ST170..4FC ｲﾗｽﾄｻﾝｼﾖｳ,12V 1.4W BULB |
83101-14040 |
from US $1.25 |
