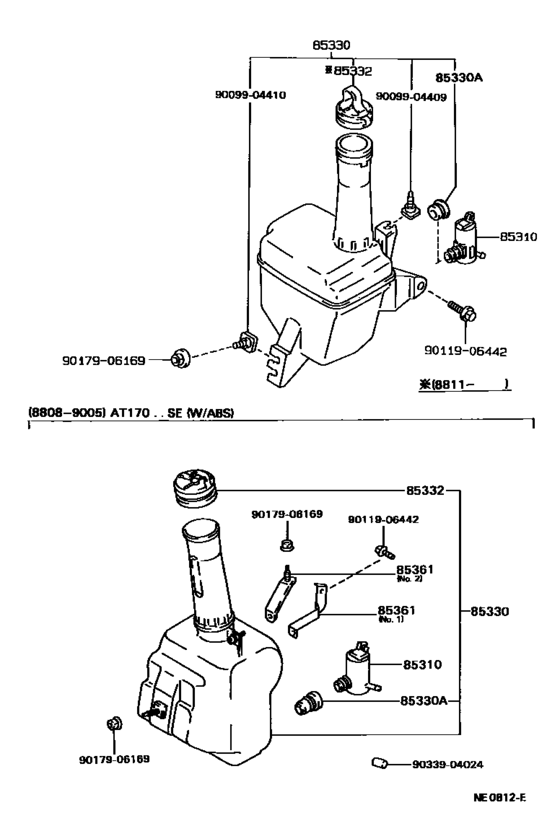

Windshield Washer ([05.1988 - ] (8805- )) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- ST170
- grade
- SGEXT
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 05.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85331-20631
Jar Assy, Windshield Washer
[11.1988 - 11.1992] CT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV |
85331-20631 |
— | ||
|
85330
|
85330
85331-20641
Jar Assy, Windshield Washer
[11.1988 - 11.1992] CT176,ET176,ST170..SG,SX; AT17#,CT170,ST170..SED ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85331-20641 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1990 - 07.1990] AT17#,ST170..GLIM,S,SE,SG,SGEXT; AT170..DX;CT170..SED |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1990 - 07.1990] AT17#,ST170..GLIM,S,SE,SG,SGEXT; AT170..DX;CT170..SED |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1990 - 07.1990] AT17#,ST170..GLIM,S,SE,SG,SGEXT; AT170..DX;CT170..SED |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-20250
Cap, Windshield Washer Jar
[05.1990 - 08.1992] AT17#,ST170..S,SE,SG,SGEXT ｱﾘ(*66) |
85316-20250 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[05.1990 - 08.1992] AT17#,ST170..S,SE,SG,SGEXT ｱﾘ(*66) |
85316-16070 |
from US $1.75 |
||
|
85332
|
85332
85332-32161
Cap Assy, Windshield Washer
[11.1988 - 11.1992] AT17#,CT17#,ET176,ST170 |
85332-32161 |
— | ||
|
9009904409
|
9009904409
90099-04409
New Genuine Part
|
90099-04409 |
— | ||
|
9009904410
|
9009904410
90099-04410
New Genuine Part
|
90099-04410 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $1.05 |
||
|
9033904024
|
9033904024
90339-04024 Cap, Transfer, Rear Case |
90339-04024 |
US $1.60 |
||
