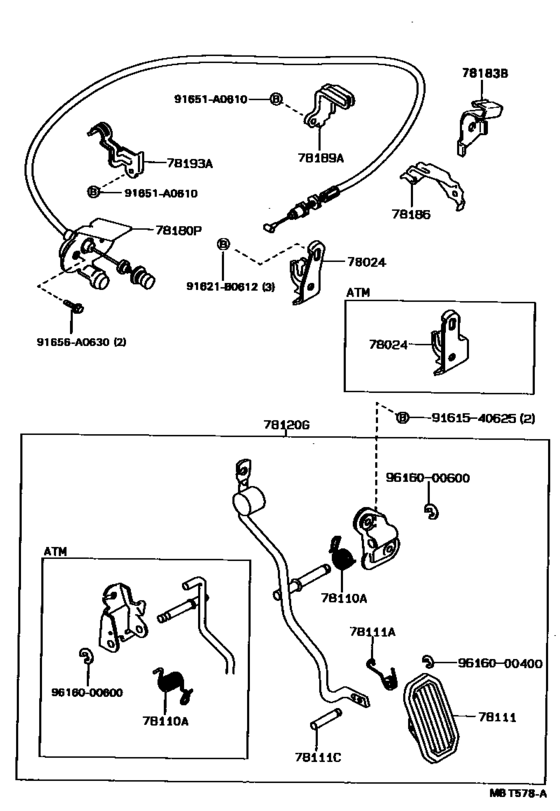

Accelerator Link ([12.1987 - ] (8712- )ST171..LHD) Diagram Toyota CARINA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- ST171
- grade
- GL
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 12.1987
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-32080 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [12.1987 - 03.1992] ST171..5F |
78024-32080 |
US $39.46 |
||
|
78110A
|
78110A
90508-26062 Spring (For Accelerator Pedal Rod)[12.1987 - 11.1989] AT171..EFI WD=2.6,CW=3.88; ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
90508-26062 |
US $3.20 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT171,CT170,ST171 |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 12.1988] ST171..5F;AT171,ST171..RHD..4FC;AT171,CT170..5F..(CBR,DSL) |
90508-18050 |
— | ||
|
78111A
|
78111A
90508-18081 Spring (For Accelerator Pedal)[12.1988 - 11.1989] ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
90508-18081 |
US $1.89 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT171,CT170,ST171 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20340 Rod Assy, Accelerator PedalACCELERATOR PEDAL [12.1987 - 11.1989] ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
78120-20340 |
US $43.10 |
||
|
78180P
|
78180P
78180-2B300 Cable Assy, Accelerator ControlACCELERATOR CONTROL [12.1987 - 03.1992] ST171..G |
78180-2B300 |
US $55.04 |
||
|
78183B
|
78183B
78183-20090
Clamp, Accelerator Control Cable
[12.1987 - 03.1992] ST171..G |
78183-20090 |
— | ||
|
78186
|
78186
78186-32040 Support, Accelerator Control Cable, No.1[12.1987 - 03.1992] ST171 |
78186-32040 |
US $8.59 |
||
|
78189A
|
78189A
78189-32040 Support, Accelerator Control Cable, No.2[12.1987 - 11.1989] ST171..LHD |
78189-32040 |
US $6.70 |
||
| replacement | |||||
|
78189A
|
78189A
78189-32041 Clamp, Throttle Cable, No.3[12.1987 - 11.1989] ST171..LHD |
78189-32041 |
US $6.26 |
||
|
78189A
|
78189A
78189-32041 Clamp, Throttle Cable, No.3[11.1989 - 03.1992] ST171..LHD |
78189-32041 |
US $6.26 |
||
|
78193A
|
78193A
78193-32050 Clamp, Throttle Cable, No.2[12.1987 - 03.1992] ST171..LHD |
78193-32050 |
US $8.59 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651A0610
|
91651A0610
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9161540625
|
9161540625
91615-40625 Bolt, W/washer (for Parking Cove & Case) |
91615-40625 |
US $1.89 |
||
| replacement | |||||
|
9161540625
|
9161540625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
