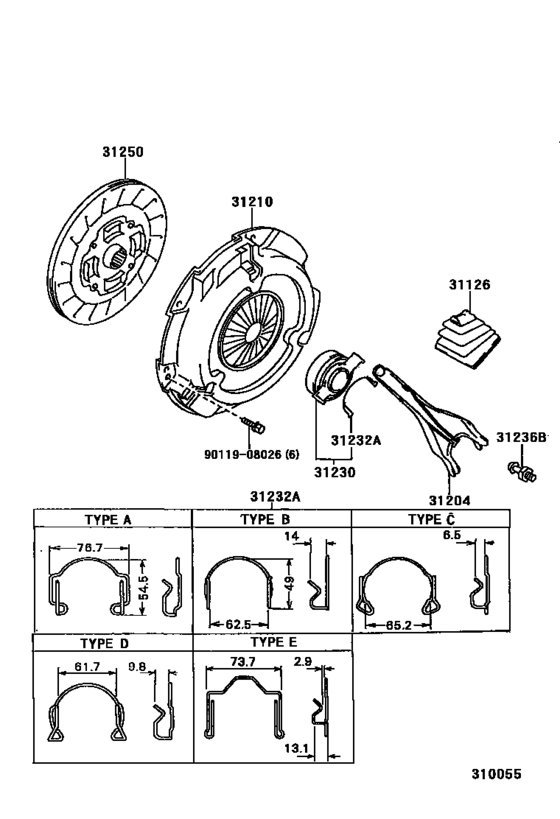

Clutch & Release Fork ([08.1996 - ] (9608- )MTM) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- ST215
- grade
- SI
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[08.1996 - 12.2001] CT210,211,215,ST215..5F |
31126-32010 |
from US $12.83 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[08.1996 - 12.2001] CT210,211,215,ST215..5F |
31204-20100 |
from US $30.40 |
||
|
31210
|
31210
31210-20331 Cover Assy, Clutch[08.1996 -] ST215..5F |
31210-20331 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-20333 Cover Assy, Clutch[08.1996 -] ST215..5F |
31210-20333 |
US $246.06 |
||
|
31230
|
31230
31230-20170 Bearing Assy, Clutch Release[08.1996 - 08.1998] CT215,ST215..5F |
31230-20170 |
from US $46.51 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[08.1996 - 12.2001] CT210,211,215,ST215..5F TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-20020 |
from US $1.56 |
||
|
31236B
|
31236B
31236-20060 Ball, Release Fork[08.1996 - 08.1998] CT215,ST215..5F |
31236-20060 |
from US $8.32 |
||
|
31250
|
31250
31250-20141 Disc Assy, Clutch[08.1996 - 08.1998] ST215..5F |
31250-20141 |
US $228.59 |
||
| replacement | |||||
|
31250
|
31250
31250-33032 Disc Assy, Clutch[08.1996 - 08.1998] ST215..5F |
31250-33032 |
from US $174.72 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
