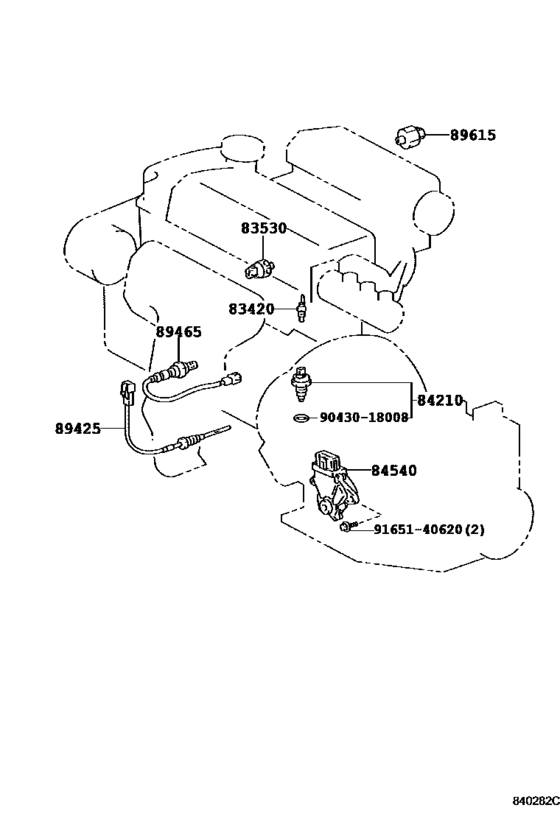

Switch & Relay & Computer ([08.1996 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9608- )ST215) Diagram Toyota CARINA
- Year
- 1996 - 1998
- Sales region
- Japan
- Frame
- ST215
- grade
- SI
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1996
- To
- 08.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[08.1996 - 10.1996] AT21#,ST215 |
83420-20040 |
from US $35.65 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST215 ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] ST215 ＤＥＮＳＯ |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] ST215 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[08.1996 - 03.1998] AT211,212,ST215 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.1996 - 03.1998] AT211,212,ST215 |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] AT211,212; ST215 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1996 -] AT21#,CT210,211,215,ST215..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1996 -] AT21#,CT210,211,215,ST215..MTM |
84210-52050 |
from US $20.67 |
||
|
89425
|
89425
89425-20210 Sensor, Exhaust Gas Temperature[08.1996 - 11.1997] ST215 |
89425-20210 |
US $279.55 |
||
| replacement | |||||
|
89425
|
89425
89425-20290
Sensor, Exhaust Gas Temperature
[08.1996 - 11.1997] ST215 |
89425-20290 |
— | ||
|
89465
|
89465
89465-20270
Sensor, Oxygen
[08.1996 -] ST215 |
89465-20270 |
— | ||
|
89615
|
89615
89615-20030 Sensor, Knock Control[08.1996 - 10.1999] ST215 ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[08.1996 - 10.1999] ST215 ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[08.1996 - 10.1999] ST215 ＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[08.1996 - 10.1999] ST215 ＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
