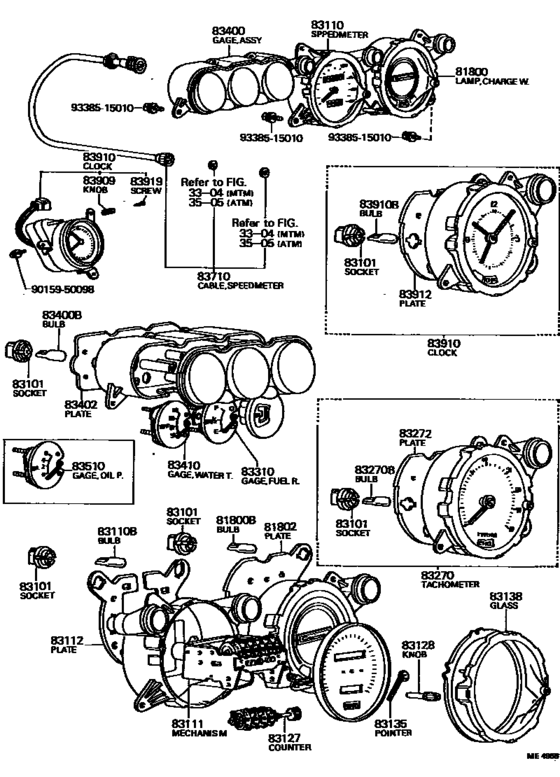

Meter ([08.1972 - 09.1975] (7208-7509)) Diagram Toyota CARINA
- Year
- 1972 - 1975
- Sales region
- Europe
- Frame
- TA12
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 08.1972
- To
- 09.1975
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83101
|
83101
83101-10010
Socket & Wire, Indicator Lamp
[03.1973 - 07.1977] TA1# |
83101-10010 |
— | ||
| replacement | |||||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[03.1973 - 07.1977] TA1# |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[12.1970 - 03.1973] TA1# |
83101-12010 |
— | ||
|
83110
|
83110
83110-14060
Speedometer Assy
[12.1970 - 09.1971] TA1# KM. |
83110-14060 |
— | ||
| replacement | |||||
|
83110
|
83110
83110-14061
Speedometer Assy
[12.1970 - 09.1971] TA1# KM. |
83110-14061 |
— | ||
|
83110
|
83110
83110-14061
Speedometer Assy
[08.1972 - 03.1973] TA1# KM. |
83110-14061 |
— | ||
|
83110
|
83110
83110-14062
Speedometer Assy
[03.1973 - 09.1975] TA1# KM. |
83110-14062 |
— | ||
|
83110
|
83110
83110-14070 Speedometer Assy[12.1970 - 07.1972] TA1# MILE |
83110-14070 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14081
Speedometer Assy
[12.1970 - 07.1972] TA1# MILE |
83110-14081 |
— | ||
|
83110
|
83110
83110-14071 Speedometer Assy[08.1972 - 03.1973] TA1# MILE |
83110-14071 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14081
Speedometer Assy
[08.1972 - 03.1973] TA1# MILE |
83110-14081 |
— | ||
|
83110
|
83110
83110-14072 Speedometer Assy[03.1973 - 09.1975] TA1# MILE |
83110-14072 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14082
Speedometer Assy
[03.1973 - 09.1975] TA1# MILE |
83110-14082 |
— | ||
|
83110B
|
83110B
99132-12034 Bulb, Position Indicator Lamp[12.1970 - 09.1975] TA1# 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83110B
|
83110B
00234-00158 Bulb, Position Indicator Lamp[12.1970 - 09.1975] TA1# 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83111
|
83111
83112-14011
Mechanism, Speedometer
[03.1973 - 09.1975] TA1# KM. |
83112-14011 |
— | ||
|
83111
|
83111
83112-14072
Mechanism, Speedometer
[03.1973 - 09.1975] TA1# MILE |
83112-14072 |
— | ||
|
83112
|
83112
83102-14070
Plate Sub-Assy, Speedometer Circuit
[12.1970 - 03.1973] TA1# |
83102-14070 |
— | ||
|
83112
|
83112
83102-14071
Plate Sub-Assy, Speedometer Circuit
[03.1973 - 09.1975] TA1# |
83102-14071 |
— | ||
|
83127
|
83127
83127-12200
Counter, Trip
[03.1973 - 09.1975] TA1# |
83127-12200 |
— | ||
|
83128
|
83128
83128-14061
Knob, Trip Counter
[03.1973 - 09.1975] TA1# |
83128-14061 |
— | ||
|
83135
|
83135
83135-14061
Pointer, Speedometer
[03.1973 - 09.1975] TA1# |
83135-14061 |
— | ||
|
83138
|
83138
83138-14101
Glass, Speedometer
[03.1973 - 09.1975] TA1# |
83138-14101 |
— | ||
| replacement | |||||
|
83138
|
83138
83138-14060
Glass, Speedometer
[03.1973 - 09.1975] TA1# |
83138-14060 |
— | ||
|
83270
|
83270
83270-14090
Tachometer Assy, Engine
[08.1972 - 09.1975] TA12..ST |
83270-14090 |
— | ||
|
83270B
|
83270B
99132-12034 Bulb, Position Indicator Lamp[08.1972 - 09.1975] TA12..ST 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83270B
|
83270B
00234-00158 Bulb, Position Indicator Lamp[08.1972 - 09.1975] TA12..ST 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83272
|
83272
83102-14190
Plate Sub-Assy, Charge Warning Circuit
[08.1972 - 09.1975] TA12..ST |
83102-14190 |
— | ||
|
83310
|
83310
83310-14030
Gage Assy, Fuel Receiver
[12.1970 - 07.1972] TA1# |
83310-14030 |
— | ||
|
83310
|
83310
83310-14070
Gage Assy, Fuel Receiver
[08.1972 - 09.1975] TA1#..LHD |
83310-14070 |
— | ||
|
83400
|
83400
83400-14040
Gage Assy, Combination
[08.1972 - 01.1974] TA12..ST DC. |
83400-14040 |
— | ||
| replacement | |||||
|
83400
|
83400
83400-14041
Gage Assy, Combination
[08.1972 - 01.1974] TA12..ST DC. |
83400-14041 |
— | ||
|
83400
|
83400
83400-14041
Gage Assy, Combination
[01.1974 - 09.1975] TA12..ST DC. |
83400-14041 |
— | ||
|
83400
|
83400
83400-14080
Gage Assy, Combination
[08.1972 - 09.1975] TA12..ST DF. |
83400-14080 |
— | ||
|
83400B
|
83400B
99132-12034 Bulb, Position Indicator Lamp[08.1972 - 09.1975] TA1# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83400B
|
83400B
00234-00158 Bulb, Position Indicator Lamp[08.1972 - 09.1975] TA1# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83402
|
83402
83102-14180
Plate Sub-Assy, Combination Gage Circuit
[08.1972 - 09.1975] TA12..ST |
83102-14180 |
— | ||
| replacement | |||||
|
83402
|
83402
83102-14170
Plate Sub-Assy, Combination Gage Circuit
[08.1972 - 09.1975] TA12..ST |
83102-14170 |
— | ||
|
83410
|
83410
83410-14050
Gage Assy, Water Temperature Receiver
[12.1970 - 07.1972] TA1# |
83410-14050 |
— | ||
|
83410
|
83410
83410-14090
Gage Assy, Water Temperature Receiver
[08.1972 - 09.1975] TA1#..LHD DC. |
83410-14090 |
— | ||
|
83410
|
83410
83410-14110
Gage Assy, Water Temperature Receiver
[08.1972 - 09.1975] TA1#..LHD DF. |
83410-14110 |
— | ||
|
83510
|
83510
83510-14030
Gage Assy, Oil Pressure Receiver
[08.1972 - 09.1975] TA12..ST KG/SQUARE CM. |
83510-14030 |
— | ||
|
83510
|
83510
83510-14050
Gage Assy, Oil Pressure Receiver
[08.1972 - 09.1975] TA12..ST LB/SQUARE IN. |
83510-14050 |
— | ||
|
83710
|
83710
83710-19105 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [12.1970 - 08.1973] TA1#..LHD..MTM L=1700 |
83710-19105 |
US $46.88 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[08.1972 - 07.1977] TA1# |
83909-14012 |
— | ||
|
83910
|
83910
83910-14040
Clock Assy
[08.1972 - 09.1975] TA12..ST FOR CONSOL |
83910-14040 |
— | ||
|
83919
|
83919
83919-14012
Screw, Thermometer
[08.1972 - 07.1977] TA1# |
83919-14012 |
— | ||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.52 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
