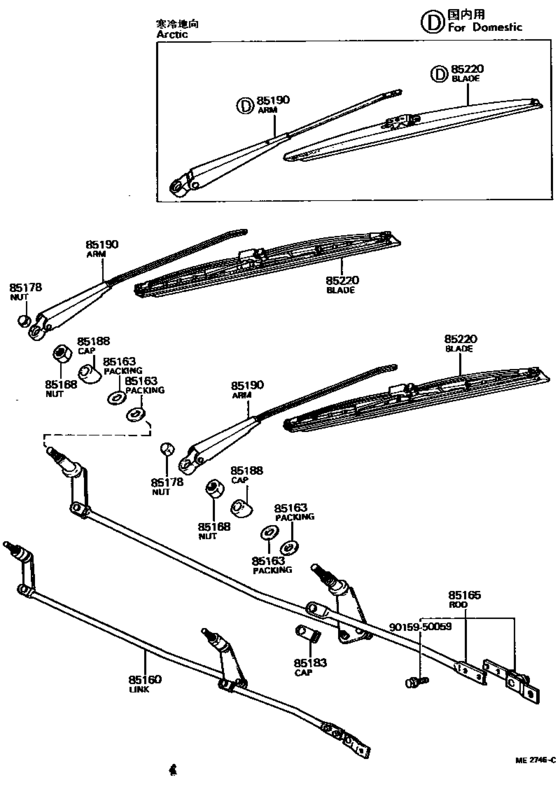

Windshield Wiper ([08.1972 - 09.1975] (7208-7509)ST) Diagram Toyota CARINA
- Year
- 1972 - 1975
- Sales region
- Europe
- Frame
- TA12
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 08.1972
- To
- 09.1975
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85160
|
85160
85160-20050
Link Assy, Windshield Wiper
[12.1970 - 06.1972] TA1#..LHD |
85160-20050 |
— | ||
|
85160
|
85160
85160-20051
Link Assy, Windshield Wiper
[06.1972 - 04.1973] TA1#..LHD |
85160-20051 |
— | ||
|
85160
|
85160
85160-20052
Link Assy, Windshield Wiper
[04.1973 - 09.1975] TA1#..LHD |
85160-20052 |
— | ||
|
85163
|
85163
85163-20040
Packing, Windshield Wiper Pivot
[12.1970 - 09.1975] TA1# |
85163-20040 |
— | ||
|
85165
|
85165
85166-20050
Rod, Windshield Wiper Link W/crank
[06.1972 - 04.1973] TA1#..LHD |
85166-20050 |
— | ||
|
85165
|
85165
85166-20052
Rod, Windshield Wiper Link W/crank
[04.1973 - 09.1975] TA1#..LHD |
85166-20052 |
— | ||
|
85168
|
85168
85186-12090
Nut, Windshield Wiper Link Pivot
[06.1975 - 09.1975] TA1# |
85186-12090 |
— | ||
|
85168
|
85168
85186-20040
Nut, Windshield Wiper Link Pivot
[12.1970 - 06.1975] TA1# |
85186-20040 |
— | ||
| replacement | |||||
|
85168
|
85168
85186-12090
Nut, Windshield Wiper Link Pivot
[12.1970 - 06.1975] TA1# |
85186-12090 |
— | ||
|
85178
|
85178
90176-08005 Nut (For Front Wiper Arm Setting)[06.1975 - 10.1976] TA1# |
90176-08005 |
US $1.75 |
||
|
85178
|
85178
90176-08008
Nut (For Front Wiper Arm Setting)
[12.1970 - 01.1974] TA1# |
90176-08008 |
— | ||
| replacement | |||||
|
85178
|
85178
90176-08005 Nut (For Front Wiper Arm Setting)[12.1970 - 01.1974] TA1# |
90176-08005 |
US $1.75 |
||
|
85178
|
85178
90176-08018
Nut (For Front Wiper Arm Setting)
[01.1974 - 06.1975] TA1# |
90176-08018 |
— | ||
| replacement | |||||
|
85178
|
85178
90176-08005 Nut (For Front Wiper Arm Setting)[01.1974 - 06.1975] TA1# |
90176-08005 |
US $1.75 |
||
|
85183
|
85183
85183-30030
Cap Or Rod, Windshield Wiper Shield
[06.1972 - 07.1972] TA1# |
85183-30030 |
— | ||
| replacement | |||||
|
85183
|
85183
85183-30031
Cap Or Rod, Windshield Wiper Shield
[06.1972 - 07.1972] TA1# |
85183-30031 |
— | ||
|
85183
|
85183
85183-30031
Cap Or Rod, Windshield Wiper Shield
[08.1972 - 09.1975] TA1# |
85183-30031 |
— | ||
|
85188
|
85188
85185-20040
Cap, Windshield Wiper Pivot, No.1
[12.1970 - 09.1975] TA1# |
85185-20040 |
— | ||
| replacement | |||||
|
85188
|
85188
85179-20040
Cap, Windshield Wiper Pivot, No.1
[12.1970 - 09.1975] TA1# |
85179-20040 |
— | ||
|
85190
|
85190
85190-14090 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1972 - 09.1975] TA12..ST WIRE TYPE |
85190-14090 |
US $78.62 |
||
| replacement | |||||
|
85190
|
85190
85190-14H91
Arm Assy, Windshield Wiper
[08.1972 - 09.1975] TA12..ST WIRE TYPE |
85190-14H91 |
— | ||
|
85220
|
85220
85220-14011
Blade Assy, Windshield Wiper
[08.1972 - 09.1975] TA12..ST WIRE TYPE |
85220-14011 |
— | ||
|
9015950059
|
9015950059
90159-50059 New Genuine Part |
90159-50059 |
US $2.91 |
||
