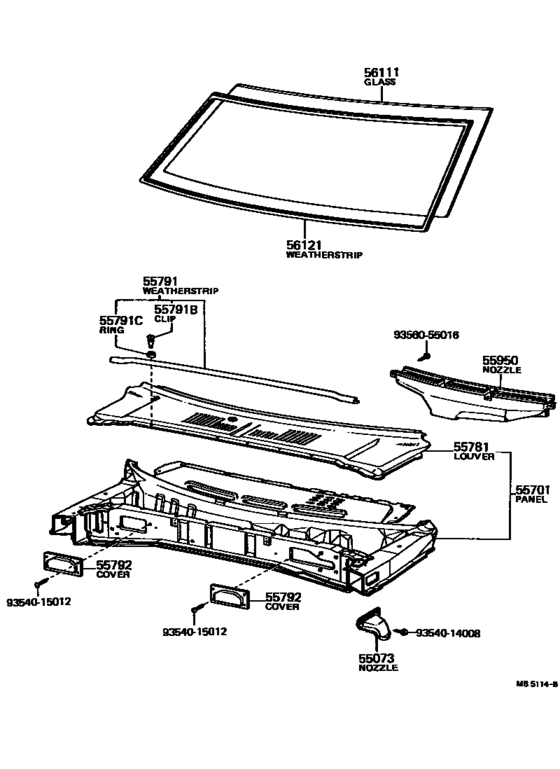

Cowl Panel & Windshield Glass ([10.1975 - 07.1977] (7510-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55073
|
55073
55073-14010
Nozzle Sub-Assy, Cowl Panel Water Extract
[12.1970 - 09.1975] TA1# |
55073-14010 |
— | ||
|
55073
|
55073
55073-14020
Nozzle Sub-Assy, Cowl Panel Water Extract
[10.1975 - 02.1976] TA14 |
55073-14020 |
— | ||
|
55701
|
55701
55700-14020
Panel Sub-Assy, Cowl
[12.1970 - 09.1975] TA1#..LHD |
55700-14020 |
— | ||
|
55701
|
55701
55700-14021
Panel Sub-Assy, Cowl
[10.1975 - 07.1977] TA14..LHD |
55700-14021 |
— | ||
|
55781
|
55781
55711-14040
Louver, Cowl Ventilator
[10.1975 - 07.1977] TA14..LHD |
55711-14040 |
— | ||
|
55781
|
55781
55711-20050
Louver, Cowl Ventilator
[12.1970 - 09.1975] TA1#..LHD |
55711-20050 |
— | ||
|
55791
|
55791
53383-14020
Weatherstrip, Hood To Cowl Top
[10.1975 - 07.1977] TA14 |
53383-14020 |
— | ||
|
55791
|
55791
53383-14902
Weatherstrip, Hood To Cowl Top
[02.1972 - 09.1975] TA1# |
53383-14902 |
— | ||
|
55791
|
55791
53383-20902
Weatherstrip, Hood To Cowl Top
[12.1970 - 02.1972] TA1# |
53383-20902 |
— | ||
|
55791B
|
55791B
90467-07050
Clip, Step Plate Cover
[12.1970 - 10.1976] TA1# |
90467-07050 |
— | ||
| replacement | |||||
|
55791B
|
55791B
90467-08008 Clip, Step Plate Cover[12.1970 - 10.1976] TA1# |
90467-08008 |
from US $2.51 |
||
|
55791B
|
55791B
90467-08008 Clip, Step Plate Cover[10.1976 - 07.1977] TA14 |
90467-08008 |
from US $2.51 |
||
|
55791C
|
55791C
90562-04066 Ring(For Hood To Cowl Top Weatherstrip)[10.1975 - 07.1977] TA14 |
90562-04066 |
US $2.91 |
||
|
55792
|
55792
55071-20010
Cover, Wiper Motor Service Hole
[10.1975 - 07.1977] TA14 |
55071-20010 |
— | ||
|
55950
|
55950
55950-14020
Nozzle Assy, Defroster
[10.1975 - 07.1977] TA14..LHD |
55950-14020 |
— | ||
|
56111
|
56111
56111-14051
Glass, Windshield
[01.1974 - 07.1977] TA1# TN.LM. T=5.7 |
56111-14051 |
— | ||
|
56111
|
56111
56111-20110
Glass, Windshield
[12.1970 - 09.1975] TA1#..ST,STD ZN.TP. T=5.0 |
56111-20110 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-14051
Glass, Windshield
[12.1970 - 09.1975] TA1#..ST,STD ZN.TP. T=5.0 |
56111-14051 |
— | ||
|
56111
|
56111
56111-20120
Glass, Windshield
[12.1970 - 07.1977] TA1# TN.ZN.TP. T=5.0 |
56111-20120 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-14051
Glass, Windshield
[12.1970 - 07.1977] TA1# TN.ZN.TP. T=5.0 |
56111-14051 |
— | ||
|
56111
|
56111
56111-20130
Glass, Windshield
[12.1970 - 01.1974] TA1# TN.LM. T=6.6 |
56111-20130 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-14051
Glass, Windshield
[12.1970 - 01.1974] TA1# TN.LM. T=6.6 |
56111-14051 |
— | ||
|
56111
|
56111
56111-20140
Glass, Windshield
[12.1970 - 01.1974] TA1#..ST,STD LM.T=6.6 |
56111-20140 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-14051
Glass, Windshield
[12.1970 - 01.1974] TA1#..ST,STD LM.T=6.6 |
56111-14051 |
— | ||
|
56121
|
56121
56121-14070
Weatherstrip, Windshield
[12.1970 - 07.1977] TA1# |
56121-14070 |
— | ||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.44 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
