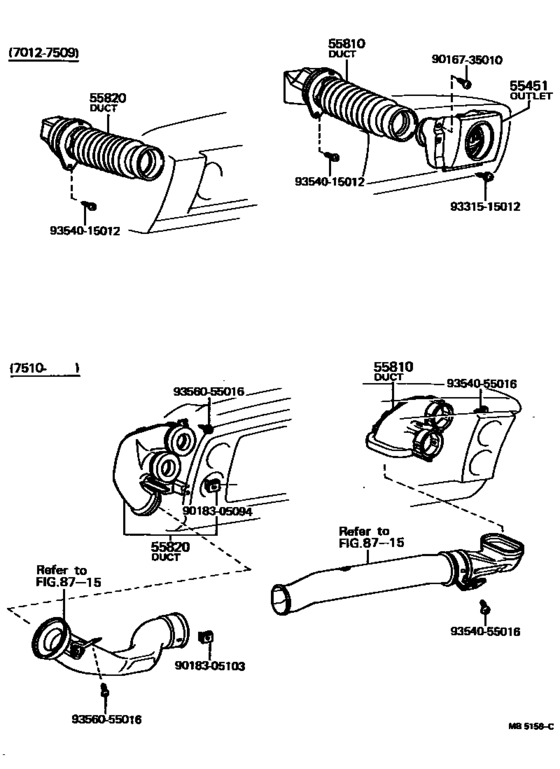

Cowl Ventilator ([12.1970 - 07.1977] (7012-7707)LHD) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55451
|
55451
55403-14020
Outlet, Air Outer, Rh
[12.1970 - 07.1972] TA1#..LHD |
55403-14020 |
— | ||
|
55451
|
55451
55403-14021-01
Outlet, Air Outer, Rh
[08.1972 - 09.1975] TA1#..LHD BLACK,BLACK,TRIM2# |
55403-14021-01 |
— | ||
|
55451
|
55451
55403-14021-06
Outlet, Air Outer, Rh
[01.1974 - 09.1975] TA1#..LHD BROWN,BROWN,TRIM0#,4# |
55403-14021-06 |
— | ||
|
55810
|
55810
55087-14010
Duct Assy, Side Ventilator, Rh
[10.1975 - 07.1977] TA14..LHD |
55087-14010 |
— | ||
|
55810
|
55810
55805-14010
Duct Assy, Side Ventilator, Rh
[12.1970 - 09.1975] TA1# |
55805-14010 |
— | ||
|
55820
|
55820
55084-14020
Duct Assy, Side Ventilator, Lh
[10.1975 - 07.1977] TA14..LHD |
55084-14020 |
— | ||
|
55820
|
55820
55806-14010
Duct Assy, Side Ventilator, Lh
[12.1970 - 09.1975] TA1# |
55806-14010 |
— | ||
|
9016735010
|
9016735010
90167-35010 New Genuine Part |
90167-35010 |
US $2.33 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
