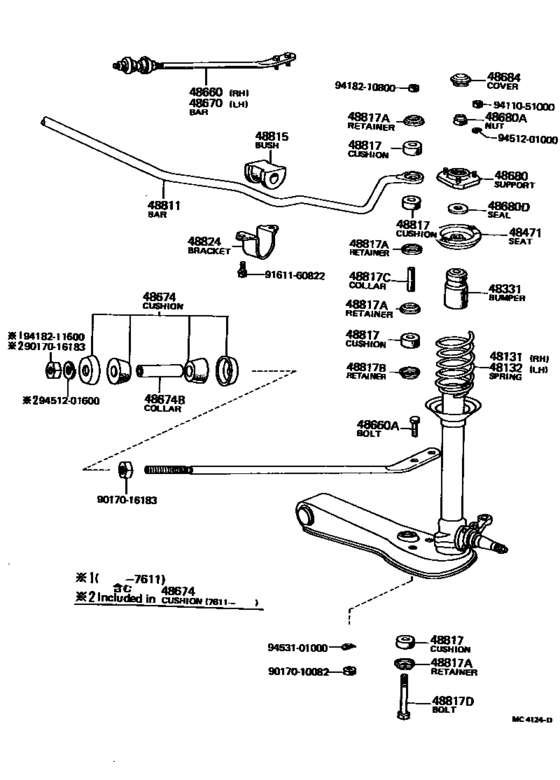

Front Spring & Shock Absorber ([12.1970 - 07.1977] (7012-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-14010
Spring, Front Coil, Rh
[12.1970 - 09.1975] TA1# |
48131-14010 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-14030
Spring, Front Coil, Rh
[12.1970 - 09.1975] TA1# |
48131-14030 |
— | ||
|
48131
|
48131
48131-14310 Spring, Front Coil, RhFRONT COIL, RH [10.1975 - 07.1977] TA14..ST |
48131-14310 |
US $132.50 |
||
| replacement | |||||
|
48131
|
48131
48131-14680
Spring, Front Coil, Rh
[10.1975 - 07.1977] TA14..ST |
48131-14680 |
— | ||
|
48132
|
48132
48131-14010
Spring, Front Coil, Rh
[12.1970 - 09.1975] TA1# |
48131-14010 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-14030
Spring, Front Coil, Rh
[12.1970 - 09.1975] TA1# |
48131-14030 |
— | ||
|
48132
|
48132
48131-14310 Spring, Front Coil, RhFRONT COIL, RH [10.1975 - 07.1977] TA14..ST |
48131-14310 |
US $132.50 |
||
| replacement | |||||
|
48132
|
48132
48131-14680
Spring, Front Coil, Rh
[10.1975 - 07.1977] TA14..ST |
48131-14680 |
— | ||
|
48331
|
48331
48331-14020 Bumper, Front Spring, No.1[12.1970 - 07.1977] TA1# |
48331-14020 |
US $16 |
||
|
48471
|
48471
48044-14010
Seat, Front Spring, Upper
[12.1970 - 09.1975] TA1# |
48044-14010 |
— | ||
|
48471
|
48471
48044-14011 Seat, Front Spring, UpperFRONT SPRING, UPPER [10.1975 - 07.1977] TA14 |
48044-14011 |
US $19.36 |
||
| replacement | |||||
|
48471
|
48471
48044-14020
Seat, Front Spring, Upper
[10.1975 - 07.1977] TA14 |
48044-14020 |
— | ||
|
48660
|
48660
48661-19025 Bar Assy, Strut, RhSTRUT, RH [12.1970 - 02.1975] TA1# |
48661-19025 |
US $74.26 |
||
| replacement | |||||
|
48660
|
48660
48661-19026
Bar Assy, Strut, Rh
[12.1970 - 02.1975] TA1# |
48661-19026 |
— | ||
|
48660
|
48660
48661-19026
Bar Assy, Strut, Rh
[02.1975 - 09.1975] TA1# |
48661-19026 |
— | ||
|
48660
|
48660
48661-19027
Bar Assy, Strut, Rh
[10.1975 - 07.1977] TA14 |
48661-19027 |
— | ||
| replacements | |||||
|
48660
|
48660
48660-19056 Bar Assy, Strut, RhSTRUT, RH [10.1975 - 07.1977] TA14 |
48660-19056 |
US $75.71 |
||
|
48660
|
48660
48670-19056 Bar Assy, Strut, LhSTRUT, LH [10.1975 - 07.1977] TA14 |
48670-19056 |
US $75.71 |
||
|
48660A
|
48660A
90101-10148
Bolt(For Strut Bar Setting)
[12.1970 - 07.1977] TA1# |
90101-10148 |
— | ||
|
48670
|
48670
48661-19026
Bar Assy, Strut, Rh
[12.1970 - 09.1975] TA1# |
48661-19026 |
— | ||
|
48670
|
48670
48661-19027
Bar Assy, Strut, Rh
[10.1975 - 07.1977] TA14 |
48661-19027 |
— | ||
| replacements | |||||
|
48670
|
48670
48660-19056 Bar Assy, Strut, RhSTRUT, RH [10.1975 - 07.1977] TA14 |
48660-19056 |
US $75.71 |
||
|
48670
|
48670
48670-19056 Bar Assy, Strut, LhSTRUT, LH [10.1975 - 07.1977] TA14 |
48670-19056 |
US $75.71 |
||
|
48674
|
48674
48674-19025
Cushion, Strut Bar
[12.1970 - 03.1974] TA1# |
48674-19025 |
— | ||
| replacement | |||||
|
48674
|
48674
48674-19026
Cushion, Strut Bar
[12.1970 - 03.1974] TA1# |
48674-19026 |
— | ||
|
48674
|
48674
48674-19026
Cushion, Strut Bar
[03.1974 - 09.1975] TA1# |
48674-19026 |
— | ||
|
48674
|
48674
48674-19056 Cushion, Strut BarSTRUT BAR [10.1975 - 11.1976] TA14 |
48674-19056 |
US $22.86 |
||
| replacement | |||||
|
48674
|
48674
48674-19058 Cushion, Strut Bar[10.1975 - 11.1976] TA14 |
48674-19058 |
US $29.79 |
||
|
48674
|
48674
48674-19058 Cushion, Strut Bar[11.1976 - 07.1977] TA14 |
48674-19058 |
US $29.79 |
||
|
48674B
|
48674B
90387-16052
Collar(For Strut Bar Cushion)
[12.1970 - 09.1975] TA1# |
90387-16052 |
— | ||
|
48674B
|
48674B
90387-16108 Collar(For Strut Bar Cushion)[10.1975 - 07.1977] TA14 |
90387-16108 |
US $8.64 |
||
|
48680
|
48680
48609-14011 Support Assy, Front SuspensionFRONT SUSPENSION [10.1975 - 07.1977] TA14 |
48609-14011 |
US $71.05 |
||
| replacement | |||||
|
48680
|
48680
48609-14040
Support Assy, Front Suspension
[10.1975 - 07.1977] TA14 |
48609-14040 |
— | ||
|
48680
|
48680
48680-14010 Support Assy, Front SuspensionFRONT SUSPENSION [12.1970 - 09.1975] TA1# |
48680-14010 |
US $72.96 |
||
|
48680A
|
48680A
90179-14090 Nut(For Idler Arm Support)[12.1970 - 06.1971] TA1# |
90179-14090 |
US $3.64 |
||
| replacement | |||||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[12.1970 - 06.1971] TA1# |
94182-11400 |
US $4.96 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[06.1971 - 07.1977] TA1# |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[12.1970 - 07.1977] TA1# |
90303-22049 |
from US $3.71 |
||
|
48684
|
48684
48684-10010 Cover, Bearing Dust[10.1975 - 07.1977] TA14 |
48684-10010 |
from US $1.27 |
||
|
48684
|
48684
48684-14010
Cover, Bearing Dust
[12.1970 - 09.1975] TA1# |
48684-14010 |
— | ||
|
48811
|
48811
48811-14030
Bar, Stabilizer, Front
[12.1970 - 03.1973] TA1# |
48811-14030 |
— | ||
|
48811
|
48811
48811-14031
Bar, Stabilizer, Front
[03.1973 - 09.1975] TA1# |
48811-14031 |
— | ||
|
48811
|
48811
48811-14120
Bar, Stabilizer, Front
[10.1975 - 07.1977] TA14..ST |
48811-14120 |
— | ||
|
48815
|
48815
48815-20060 Bush, Front Stabilizer Bar, No.1[12.1970 - 07.1977] TA10,12; TA14..ST |
48815-20060 |
from US $7.47 |
||
|
48817
|
48817
48817-10010 Cushion, Front Stabilizer[12.1970 - 03.1973] TA1# |
48817-10010 |
from US $3.84 |
||
|
48817
|
48817
48817-14010
Cushion, Front Stabilizer
[03.1973 - 07.1977] TA1# |
48817-14010 |
— | ||
| replacement | |||||
|
48817
|
48817
48817-20020 Cushion, Front Stabilizer[03.1973 - 07.1977] TA1# |
48817-20020 |
US $6.08 |
||
|
48817A
|
48817A
90948-02024 Retainer, Cushion, No.1(For Front Stabilizer Bar)[12.1970 - 03.1973] TA1# T=1.2 |
90948-02024 |
from US $2.88 |
||
|
48817A
|
48817A
90948-02038 Retainer, Cushion, No.1(For Front Stabilizer Bar)[03.1973 - 07.1977] TA1# T=1.6 |
90948-02038 |
from US $2.75 |
||
|
48817B
|
48817B
90948-02025 Retainer, Cushion, No.1(For Front Stabilizer Bar)[12.1970 - 03.1973] TA1# T=1.0 |
90948-02025 |
US $3.20 |
||
|
48817B
|
48817B
90948-02037 Retainer, Cushion, No.2(For Front Stabilizer Bar)[03.1973 - 07.1977] TA1# T=1.2 |
90948-02037 |
US $3.68 |
||
|
48817C
|
48817C
90387-09057
Collar(For Stabilizer Bar)
[12.1970 - 03.1973] TA1# |
90387-09057 |
— | ||
|
48817C
|
48817C
90387-09112
Collar(For Stabilizer Bar)
[03.1973 - 07.1977] TA1# |
90387-09112 |
— | ||
|
48817D
|
48817D
90101-08274
Bolt(For Front Stabilizer)
[12.1970 - 07.1977] TA1# |
90101-08274 |
— | ||
|
48824
|
48824
48824-12030 Bracket, Stabilizer, FrontSTABILIZER, FRONT [10.1975 - 03.1977] TA14 |
48824-12030 |
US $5.39 |
||
| replacement | |||||
|
48824
|
48824
48824-14030 Bracket, Stabilizer, FrontSTABILIZER, FRONT [10.1975 - 03.1977] TA14 |
48824-14030 |
US $5.24 |
||
|
48824
|
48824
48824-14020 Bracket, Stabilizer, FrontSTABILIZER, FRONT [08.1974 - 09.1975] TA1# |
48824-14020 |
US $3.64 |
||
|
48824
|
48824
48824-14030 Bracket, Stabilizer, FrontSTABILIZER, FRONT [03.1977 - 07.1977] TA14 |
48824-14030 |
US $5.24 |
||
|
48824
|
48824
48824-22010 Bracket, Stabilizer, Front[12.1970 - 08.1974] TA1# |
48824-22010 |
US $3.35 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9017016183
|
9017016183
90170-16183 New Genuine Part |
90170-16183 |
US $3.84 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.88 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.40 |
||
|
9418211600
|
9418211600
94182-11600 New Genuine Part |
94182-11600 |
US $6.84 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
