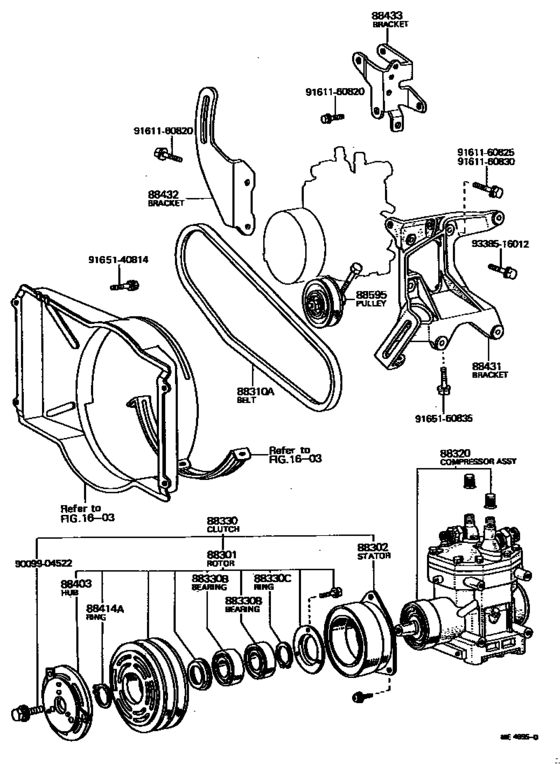

Heating & Air Conditioning - Compressor ([10.1975 - 07.1977] (7510-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88401-12032
Rotor Sub-Assy, Magnet Clutch
[01.1974 - 09.1975] TA1# |
88401-12032 |
— | ||
|
88301
|
88301
88401-14020
Rotor Sub-Assy, Magnet Clutch
[12.1970 - 07.1972] TA1# |
88401-14020 |
— | ||
|
88301
|
88301
88401-20040
Rotor Sub-Assy, Magnet Clutch
[08.1972 - 01.1974] TA1# |
88401-20040 |
— | ||
| replacement | |||||
|
88301
|
88301
88401-14060
Rotor Sub-Assy, Magnet Clutch
[08.1972 - 01.1974] TA1# |
88401-14060 |
— | ||
|
88301
|
88301
88401-20050
Rotor Sub-Assy, Magnet Clutch
[10.1975 - 07.1977] TA14 |
88401-20050 |
— | ||
| replacement | |||||
|
88301
|
88301
88401-14060
Rotor Sub-Assy, Magnet Clutch
[10.1975 - 07.1977] TA14 |
88401-14060 |
— | ||
|
88302
|
88302
88411-12021
Stator Sub-Assy, Magnet Clutch
[01.1974 - 09.1975] TA1# |
88411-12021 |
— | ||
|
88302
|
88302
88411-20010
Stator Sub-Assy, Magnet Clutch
[12.1970 - 01.1974] TA1# |
88411-20010 |
— | ||
|
88302
|
88302
88411-20060
Stator Sub-Assy, Magnet Clutch
[10.1975 - 07.1977] TA14 |
88411-20060 |
— | ||
|
88310A
|
88310A
99522-10938
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[12.1970 - 01.1974] TA1# |
99522-10938 |
— | ||
| replacement | |||||
|
88310A
|
88310A
99322-50940 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[12.1970 - 01.1974] TA1# |
99322-50940 |
US $19.22 |
||
|
88310A
|
88310A
99522-10951
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[01.1974 - 09.1975] TA1# |
99522-10951 |
— | ||
| replacement | |||||
|
88310A
|
88310A
99322-50950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[01.1974 - 09.1975] TA1# |
99322-50950 |
— | ||
|
88310A
|
88310A
99522-10964 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [10.1975 - 07.1977] TA14 |
99522-10964 |
US $13.98 |
||
| replacement | |||||
|
88310A
|
88310A
99322-00960 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[10.1975 - 07.1977] TA14 |
99322-00960 |
US $17.62 |
||
|
88320
|
88320
88320-14010
Compressor Assy, Cooler
[12.1970 - 07.1977] TA1# |
88320-14010 |
— | ||
|
88330
|
88330
88410-12022
Clutch Assy, Magnet
[01.1974 - 09.1975] TA1# |
88410-12022 |
— | ||
|
88330
|
88330
88410-14011
Clutch Assy, Magnet
[12.1970 - 01.1974] TA1# |
88410-14011 |
— | ||
|
88330
|
88330
88410-20071
Clutch Assy, Magnet
[10.1975 - 07.1977] TA14 |
88410-20071 |
— | ||
|
88330B
|
88330B
90099-10083
Bearing, Magnet Clutch
[12.1970 - 07.1977] TA1# |
90099-10083 |
— | ||
|
88330C
|
88330C
90096-90007
Ring, Snap (For Magnet Clutch)
[01.1974 - 07.1977] TA1# |
90096-90007 |
— | ||
|
88330C
|
88330C
90099-07100
Ring, Snap (For Magnet Clutch)
[12.1970 - 01.1974] TA1# |
90099-07100 |
— | ||
|
88403
|
88403
88403-12020
Hub Sub-Assy, Magnet Clutch
[10.1975 - 07.1977] TA14 |
88403-12020 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-20031
Hub Sub-Assy, Magnet Clutch
[10.1975 - 07.1977] TA14 |
88403-20031 |
— | ||
|
88403
|
88403
88403-20030
Hub Sub-Assy, Magnet Clutch
[01.1974 - 09.1975] TA1# |
88403-20030 |
— | ||
|
88414A
|
88414A
90096-90005
Ring, Snap (For Magnet Clutch)
[10.1975 - 07.1977] TA14 |
90096-90005 |
— | ||
|
88414A
|
88414A
90099-90009
Ring, Snap (For Magnet Clutch)
[01.1974 - 09.1975] TA1# |
90099-90009 |
— | ||
| replacement | |||||
|
88414A
|
88414A
90096-90005
Ring, Snap (For Magnet Clutch)
[01.1974 - 09.1975] TA1# |
90096-90005 |
— | ||
|
88431
|
88431
88431-14010
Bracket, Compressor Mounting, No.1
[12.1970 - 07.1977] TA1# |
88431-14010 |
— | ||
|
88432
|
88432
88437-12091
Bracket, Compressor Mounting, No.2
[10.1975 - 07.1977] TA14 |
88437-12091 |
— | ||
|
88433
|
88433
88437-14120
Bracket, Compressor Mounting, No.3
[10.1975 - 07.1977] TA14 |
88437-14120 |
— | ||
|
88595
|
88595
88440-14010 Pulley, Cooler Compressor IdleCOOLER COMPRESSOR IDLE [01.1974 - 09.1975] TA1# |
88440-14010 |
US $94.64 |
||
|
88595
|
88595
88440-22020 Pulley, Cooler Compressor IdleCOOLER COMPRESSOR IDLE [12.1970 - 01.1974] TA1# |
88440-22020 |
US $100.46 |
||
| replacement | |||||
|
88595
|
88595
88440-14010 Pulley, Cooler Compressor IdleCOOLER COMPRESSOR IDLE [12.1970 - 01.1974] TA1# |
88440-14010 |
US $94.64 |
||
|
9009904522
|
9009904522
90099-04522
New Genuine Part
|
90099-04522 |
— | ||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $1.02 |
||
