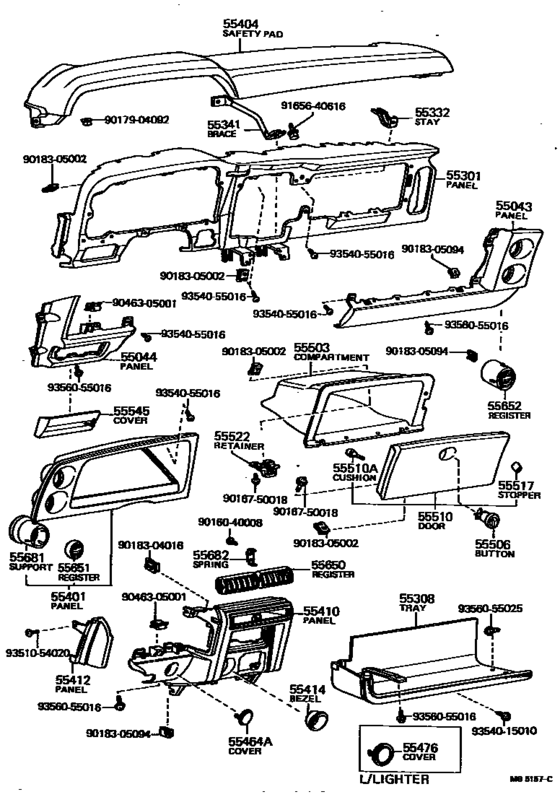

Instrument Panel & Glove Compartment ([10.1975 - 07.1977] (7510-7707)LHD) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55043
|
55043
55432-14020-01
Panel Sub-Assy, Instrument Panel Finish, Lower Rh
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55432-14020-01 |
— | ||
|
55043
|
55043
55432-14020-06
Panel Sub-Assy, Instrument Panel Finish, Lower Rh
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55432-14020-06 |
— | ||
|
55044
|
55044
55433-14010-01
Panel Sub-Assy, Instrument Panel Finish, Lower Lh
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55433-14010-01 |
— | ||
|
55044
|
55044
55433-14010-06
Panel Sub-Assy, Instrument Panel Finish, Lower Lh
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55433-14010-06 |
— | ||
|
55301
|
55301
55301-14020
Panel Sub-Assy, Instrument
[12.1970 - 07.1972] TA1#..LHD |
55301-14020 |
— | ||
|
55301
|
55301
55301-14021
Panel Sub-Assy, Instrument
[08.1972 - 09.1975] TA1#..LHD |
55301-14021 |
— | ||
|
55301
|
55301
55301-14060
Panel Sub-Assy, Instrument
[10.1975 - 07.1977] TA14..LHD |
55301-14060 |
— | ||
|
55308
|
55308
55601-14020 Tray Sub-Assy, Instrument Panel UnderINSTRUMENT PANEL UNDER [10.1975 - 08.1976] TA14..LHD..(DLX,ST) |
55601-14020 |
US $27.23 |
||
| replacement | |||||
|
55308
|
55308
55601-14021
Tray Sub-Assy, Instrument Panel Under
[10.1975 - 08.1976] TA14..LHD..(DLX,ST) |
55601-14021 |
— | ||
|
55308
|
55308
55601-14021
Tray Sub-Assy, Instrument Panel Under
[08.1976 - 07.1977] TA14..LHD..(DLX,ST) |
55601-14021 |
— | ||
|
55332
|
55332
55326-14010
Stay, Instrument Panel
[10.1975 - 07.1977] TA14 |
55326-14010 |
— | ||
|
55341
|
55341
55341-14010
Brace, Instrument Panel, No.1
[10.1975 - 07.1977] TA14 |
55341-14010 |
— | ||
|
55401
|
55401
55404-14090
Panel Sub-Assy, Instrument Cluster Finish
[10.1975 - 07.1977] TA14..LHD..(DLX,ST) |
55404-14090 |
— | ||
|
55404
|
55404
55401-14230-01
Safety Pad Sub-Assy, Instrument Panel, Upper
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55401-14230-01 |
— | ||
|
55404
|
55404
55401-14230-06
Safety Pad Sub-Assy, Instrument Panel, Upper
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55401-14230-06 |
— | ||
|
55404
|
55404
55404-14020
Safety Pad Sub-Assy, Instrument Panel, Upper
[12.1970 - 07.1972] TA1#..LHD |
55404-14020 |
— | ||
|
55404
|
55404
55404-14021-01
Safety Pad Sub-Assy, Instrument Panel, Upper
[08.1972 - 09.1975] TA1#..LHD BLACK,BLACK,TRIM2# |
55404-14021-01 |
— | ||
|
55404
|
55404
55404-14021-06
Safety Pad Sub-Assy, Instrument Panel, Upper
[01.1974 - 09.1975] TA1#..LHD BROWN,BROWN,TRIM0#,4# |
55404-14021-06 |
— | ||
|
55410
|
55410
55412-14040-01
Panel Assy, Instrument Cluster Finish, No.2
[10.1975 - 07.1977] TA14..LHD..(DLX,ST) BLACK,BLACK,TRIM2# |
55412-14040-01 |
— | ||
|
55410
|
55410
55412-14040-06
Panel Assy, Instrument Cluster Finish, No.2
[10.1975 - 07.1977] TA14..LHD..(DLX,ST) BROWN,BROWN,TRIM0#,4# |
55412-14040-06 |
— | ||
|
55412
|
55412
55414-14060
Panel, Instrument Cluster Finish, End
[10.1975 - 07.1977] TA14..LHD..(DLX,ST) |
55414-14060 |
— | ||
| replacement | |||||
|
55412
|
55412
55414-14050
Panel, Instrument Cluster Finish, End
[10.1975 - 07.1977] TA14..LHD..(DLX,ST) |
55414-14050 |
— | ||
|
55414
|
55414
55477-14020
Bezel, Cigar Lighter Hole
[10.1975 - 07.1977] TA14 |
55477-14020 |
— | ||
|
55464A
|
55464A
55619-14010 Cover, Switch HoleSWITCH HOLE [12.1970 - 07.1972] TA1#..LHD |
55619-14010 |
US $3.49 |
||
| replacement | |||||
|
55464A
|
55464A
55619-14010-01 Cover, Rheostat Switch Hole[12.1970 - 07.1972] TA1#..LHD |
55619-14010-01 |
US $3.35 |
||
|
55476
|
55476
55477-14010
Cover, Cigarette Lighter Hole
[12.1970 - 09.1975] TA1#..ST,STD |
55477-14010 |
— | ||
|
55503
|
55503
55581-14020
Compartment Sub-Assy, Glove
[10.1975 - 05.1977] TA14..LHD..ST |
55581-14020 |
— | ||
|
55503
|
55503
55581-14060
Compartment Sub-Assy, Glove
[05.1977 - 07.1977] TA14..LHD |
55581-14060 |
— | ||
|
55510
|
55510
55510-14902-01
Door Assy, Glove Compartment
[08.1972 - 09.1975] TA1#..LHD BLACK,BLACK,TRIM2# |
55510-14902-01 |
— | ||
|
55510
|
55510
55510-14902-06 Door Assy, Glove CompartmentGLOVE COMPARTMENT [01.1974 - 09.1975] TA1#..LHD BROWN,BROWN,TRIM0#,4# |
55510-14902-06 |
US $90.27 |
||
| replacement | |||||
|
55510
|
55510
55510-14902-01
Door Assy, Glove Compartment
[01.1974 - 09.1975] TA1#..LHD BROWN,BROWN,TRIM0#,4# |
55510-14902-01 |
— | ||
|
55510
|
55510
55550-14020-01
Door Assy, Glove Compartment
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55550-14020-01 |
— | ||
|
55510
|
55510
55550-14020-06
Door Assy, Glove Compartment
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55550-14020-06 |
— | ||
| replacement | |||||
|
55510
|
55510
55550-14020-01
Door Assy, Glove Compartment
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55550-14020-01 |
— | ||
|
55510A
|
55510A
90541-03078 Cushion(For Cup Holder)[10.1975 - 07.1977] TA14 |
90541-03078 |
from US $1.60 |
||
|
55510A
|
55510A
90541-04073
Cushion(For Glove Compartment Door)
[12.1970 - 09.1975] TA1# |
90541-04073 |
— | ||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[12.1970 - 12.1972] TA1# |
55517-14010 |
— | ||
|
55517
|
55517
55517-14020 Stopper, Glove Compartment Door ArmGLOVE COMPARTMENT DOOR ARM [12.1972 - 01.1975] TA1# |
55517-14020 |
US $1.89 |
||
| replacement | |||||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[12.1972 - 01.1975] TA1# |
55517-14010 |
— | ||
|
55522
|
55522
55521-14010
Retainer, Glove Compartment Male
[08.1972 - 09.1975] TA1# |
55521-14010 |
— | ||
|
55522
|
55522
55561-14030
Striker Sub-Assy, Glove Compartment Door Lock
[10.1975 - 07.1977] TA14 |
55561-14030 |
— | ||
|
55545
|
55545
55545-14020-01
Cover, Fuse Box Opening
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55545-14020-01 |
— | ||
| replacement | |||||
|
55545
|
55545
55545-14020-C0
Cover, Fuse Box Opening
[10.1975 - 07.1977] TA14..LHD BLACK,BLACK,TRIM2# |
55545-14020-C0 |
— | ||
|
55545
|
55545
55545-14020-06
Cover, Fuse Box Opening
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55545-14020-06 |
— | ||
| replacement | |||||
|
55545
|
55545
55545-14020-C0
Cover, Fuse Box Opening
[10.1975 - 07.1977] TA14..LHD BROWN,BROWN,TRIM0#,4# |
55545-14020-C0 |
— | ||
|
55650
|
55650
55670-14010
Register Assy, Instrument Panel, No.3
[10.1975 - 03.1977] TA14 |
55670-14010 |
— | ||
| replacement | |||||
|
55650
|
55650
55670-14020
Register Assy, Instrument Panel, No.3
[10.1975 - 03.1977] TA14 |
55670-14020 |
— | ||
|
55650
|
55650
55670-14020
Register Assy, Instrument Panel, No.3
[03.1977 - 07.1977] TA14 |
55670-14020 |
— | ||
|
55651
|
55651
55651-14010
Register, Instrument Panel, No.1
[10.1975 - 07.1977] TA14 |
55651-14010 |
— | ||
|
55652
|
55652
55650-14010
Register, Instrument Panel, No.2
[10.1975 - 07.1977] TA14 |
55650-14010 |
— | ||
|
55681
|
55681
55681-14010
Support, Instrument Panel Register, No.1
[10.1975 - 07.1977] TA14 |
55681-14010 |
— | ||
|
55682
|
55682
58914-20010
Spring, Instrument Panel Register Support
[10.1975 - 07.1977] TA14 |
58914-20010 |
— | ||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9016750018
|
9016750018
90167-50018 New Genuine Part |
90167-50018 |
US $0.70 |
||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
|
9018304016
|
9018304016
90183-04016 Nut, Spring |
90183-04016 |
US $1.02 |
||
| replacement | |||||
|
9018304016
|
9018304016
90183-04020
Nut, Spring
|
90183-04020 |
— | ||
|
9018305002
|
9018305002
90183-05002
New Genuine Part
|
90183-05002 |
— | ||
| replacement | |||||
|
9018305002
|
9018305002
90183-05001
New Genuine Part
|
90183-05001 |
— | ||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046305001
|
9046305001
90463-05001 New Genuine Part |
90463-05001 |
US $1.60 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9351054020
|
9351054020
93510-54020
New Genuine Part
|
93510-54020 |
— | ||
|
9354015010
|
9354015010
93540-15010 SCREW, TAPPING |
93540-15010 |
from US $1.92 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
|
9356055025
|
9356055025
93560-55025 New Genuine Part |
93560-55025 |
US $1.76 |
||
