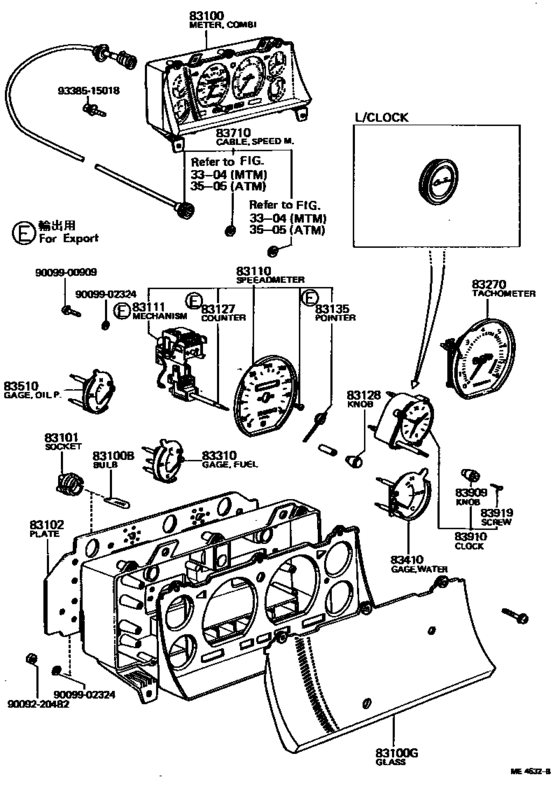

Meter ([10.1975 - 07.1977] (7510-7707)ST) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-14020
Meter Assy, Combination
[12.1970 - 07.1972] TA1#..LHD |
83100-14020 |
— | ||
|
83100
|
83100
83100-14360 Meter Assy, CombinationCOMBINATION [10.1975 - 07.1977] TA14..LHD..ST KM.L/CLOCK |
83100-14360 |
US $1,688.96 |
||
| replacement | |||||
|
83100
|
83100
83100-14440
Meter Assy, Combination
[10.1975 - 07.1977] TA14..LHD..ST KM.L/CLOCK |
83100-14440 |
— | ||
|
83100
|
83100
83100-14400 Meter Assy, CombinationCOMBINATION [10.1975 - 07.1977] TA14..LHD..ST MILE,L/CLOCK |
83100-14400 |
US $1,688.96 |
||
| replacement | |||||
|
83100
|
83100
83100-14480
Meter Assy, Combination
[10.1975 - 07.1977] TA14..LHD..ST MILE,L/CLOCK |
83100-14480 |
— | ||
|
83100
|
83100
83100-14440
Meter Assy, Combination
[10.1975 - 07.1977] TA14..LHD..ST KM.W/CLOCK |
83100-14440 |
— | ||
|
83100
|
83100
83100-14480
Meter Assy, Combination
[10.1975 - 07.1977] TA14..LHD..ST MILE,W/CLOCK |
83100-14480 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[12.1970 - 07.1972] TA1# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[12.1970 - 07.1972] TA1# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-14360
Glass, Combination Meter
[10.1975 - 07.1977] TA14..LHD..ST |
83138-14360 |
— | ||
|
83101
|
83101
83101-10010
Socket & Wire, Indicator Lamp
[03.1973 - 07.1977] TA1# |
83101-10010 |
— | ||
| replacement | |||||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[03.1973 - 07.1977] TA1# |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[12.1970 - 03.1973] TA1# |
83101-12010 |
— | ||
|
83102
|
83102
83102-14090
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1970 - 07.1972] TA1#..LHD |
83102-14090 |
— | ||
|
83102
|
83102
83247-14080
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1975 - 07.1977] TA14..LHD..ST |
83247-14080 |
— | ||
|
83110
|
83110
83110-14060
Speedometer Assy
[12.1970 - 09.1971] TA1# KM. |
83110-14060 |
— | ||
| replacement | |||||
|
83110
|
83110
83110-14061
Speedometer Assy
[12.1970 - 09.1971] TA1# KM. |
83110-14061 |
— | ||
|
83110
|
83110
83110-14061
Speedometer Assy
[08.1972 - 03.1973] TA1# KM. |
83110-14061 |
— | ||
|
83110
|
83110
83110-14062
Speedometer Assy
[03.1973 - 09.1975] TA1# KM. |
83110-14062 |
— | ||
|
83110
|
83110
83110-14070 Speedometer Assy[12.1970 - 07.1972] TA1# MILE |
83110-14070 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14081
Speedometer Assy
[12.1970 - 07.1972] TA1# MILE |
83110-14081 |
— | ||
|
83110
|
83110
83110-14071 Speedometer Assy[08.1972 - 03.1973] TA1# MILE |
83110-14071 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14081
Speedometer Assy
[08.1972 - 03.1973] TA1# MILE |
83110-14081 |
— | ||
|
83110
|
83110
83110-14072 Speedometer Assy[03.1973 - 09.1975] TA1# MILE |
83110-14072 |
US $377.10 |
||
| replacement | |||||
|
83110
|
83110
83110-14082
Speedometer Assy
[03.1973 - 09.1975] TA1# MILE |
83110-14082 |
— | ||
|
83110
|
83110
83241-14070
Speedometer Assy
[10.1975 - 07.1977] TA14..ST KM. |
83241-14070 |
— | ||
|
83110
|
83110
83241-14080
Speedometer Assy
[10.1975 - 07.1977] TA14..ST MILE |
83241-14080 |
— | ||
|
83111
|
83111
83111-12540
Mechanism, Speedometer
[10.1975 - 07.1977] TA14 KM. |
83111-12540 |
— | ||
|
83111
|
83111
83111-12560
Mechanism, Speedometer
[10.1975 - 07.1977] TA14 MILE |
83111-12560 |
— | ||
|
83111
|
83111
83112-14011
Mechanism, Speedometer
[03.1973 - 09.1975] TA1# KM. |
83112-14011 |
— | ||
|
83111
|
83111
83112-14072
Mechanism, Speedometer
[03.1973 - 09.1975] TA1# MILE |
83112-14072 |
— | ||
|
83127
|
83127
83127-12200
Counter, Trip
[03.1973 - 09.1975] TA1# |
83127-12200 |
— | ||
|
83127
|
83127
83127-12860
Counter, Trip
[10.1975 - 07.1977] TA14 |
83127-12860 |
— | ||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[10.1975 - 07.1977] TA14 |
83128-10260 |
— | ||
|
83128
|
83128
83128-14061
Knob, Trip Counter
[03.1973 - 09.1975] TA1# |
83128-14061 |
— | ||
|
83135
|
83135
83135-14061
Pointer, Speedometer
[03.1973 - 09.1975] TA1# |
83135-14061 |
— | ||
|
83135
|
83135
83135-14250
Pointer, Speedometer
[10.1975 - 07.1977] TA14 |
83135-14250 |
— | ||
|
83270
|
83270
83242-14010
Tachometer Assy, Engine
[10.1975 - 07.1977] TA14..ST |
83242-14010 |
— | ||
|
83310
|
83310
83243-14010
Gage Assy, Fuel Receiver
[10.1975 - 07.1977] TA14 |
83243-14010 |
— | ||
|
83310
|
83310
83310-14030
Gage Assy, Fuel Receiver
[12.1970 - 07.1972] TA1# |
83310-14030 |
— | ||
|
83310
|
83310
83310-14070
Gage Assy, Fuel Receiver
[08.1972 - 09.1975] TA1#..LHD |
83310-14070 |
— | ||
|
83410
|
83410
83244-14010 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [10.1975 - 07.1977] TA14 |
83244-14010 |
US $38.44 |
||
| replacement | |||||
|
83410
|
83410
83244-14011
Gage Assy, Water Temperature Receiver
[10.1975 - 07.1977] TA14 |
83244-14011 |
— | ||
|
83410
|
83410
83410-14050
Gage Assy, Water Temperature Receiver
[12.1970 - 07.1972] TA1# |
83410-14050 |
— | ||
|
83410
|
83410
83410-14090
Gage Assy, Water Temperature Receiver
[08.1972 - 09.1975] TA1#..LHD DC. |
83410-14090 |
— | ||
|
83410
|
83410
83410-14110
Gage Assy, Water Temperature Receiver
[08.1972 - 09.1975] TA1#..LHD DF. |
83410-14110 |
— | ||
|
83510
|
83510
83246-14010
Gage Assy, Oil Pressure Receiver
[10.1975 - 07.1977] TA14..ST |
83246-14010 |
— | ||
|
83710
|
83710
83710-19105 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [12.1970 - 08.1973] TA1#..LHD..MTM L=1700 |
83710-19105 |
US $46.88 |
||
|
83710
|
83710
83710-19265 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [10.1975 - 07.1977] TA14..LHD..MTM L=1800 |
83710-19265 |
US $35.53 |
||
| replacement | |||||
|
83710
|
83710
83710-19406
Cable Assy, Speedometer Drive, No.1
[10.1975 - 07.1977] TA14..LHD..MTM L=1800 |
83710-19406 |
— | ||
|
83909
|
83909
83909-14012
Knob, Clock
[08.1972 - 07.1977] TA1# |
83909-14012 |
— | ||
|
83910
|
83910
83910-14041
Clock Assy
[10.1975 - 07.1977] TA14..ST |
83910-14041 |
— | ||
|
83919
|
83919
83919-14012
Screw, Thermometer
[08.1972 - 07.1977] TA1# |
83919-14012 |
— | ||
|
9009220482
|
9009220482
90092-20482
New Genuine Part
|
90092-20482 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009902324
|
9009902324
90099-02324
New Genuine Part
|
90099-02324 |
— | ||
|
9338515018
|
9338515018
93385-15018 New Genuine Part |
93385-15018 |
US $1.75 |
||
